185kw Submersible Pump Farmland Irrigation Stainless Steel
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Submersible irrigation pump is packed by wooden case or as your request. | Delivery Time : | Within 2-5 working days upon receipt of payment |
| Payment Terms : | T/T, Western Union, L/C, MoneyGram | Supply Ability : | 9863 sets per month |
| Place of Origin: | Henan China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO;CE,BV; TUV; CCC | Model Number: | QJ |
|
Detail Information |
|||
| Head: | 12-265m | Flow:: | 9-145m3/h |
|---|---|---|---|
| Power:: | 2.2kw 3kw 4kw 5.5kw 7.5kw 9.2kw 11kw 13kw 15kw | Voltage: | 380v-1140v |
| Frequency:: | 3 Phase 50hz/60hz | Motor: | 100% Copper Wire |
| Install: | Vertical | Protection Class: | IP68 |
| High Light: | submersible irrigation water pump,submersible irrigation well pump |
||
Product Description

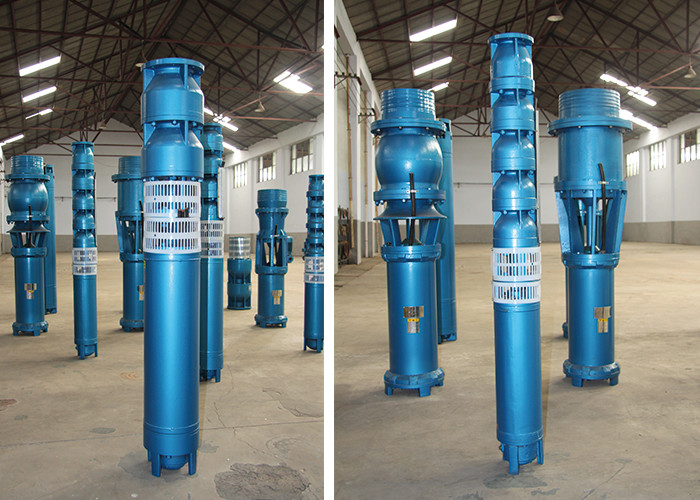

QJ Series 7 8 10 Inch Well Diameter Water Deep Submersible Irrigation Pump Price
Parameters of submersible irrigation pump:
Submersible irrigation pump applications:
Farmland irrigation, spray irrigation, water supply system for industrial buildings and civil buildings, water distribution system in mountain areas, low-lying areas and dunes,water supply and water drainage system for mines in urban or rural districts, and other water conservancy facilities.
Submersible irrigation pump features:
Submersible irrigation pump types:
Common types of agriculture submersible pumps are QJ series and QS series. QJ series can be used in deep well for irrigation, head and flow capacity can be extremely large. QS series are capable to be installed horizontally or vertically because of their ball bearings design. When submerged under river water, QS series is a suitable choice.
Submersible irrigation pump parameters:
| Model | Motor Power | Flow range | Meter range | Outlet size | Rated current | |
| QJ Series | kw | hp | m3/h | (m) | Inch (") | A |
| 175QJ10-40/3 | 2.2 | 3 | 9-11 | 32-48 | 1.2" | 5.7 |
| 175QJ10-54/4 | 3 | 4 | 9-11 | 44-64 | 1.2" | 7.8 |
| 175QJ10-65/5 | 4 | 5 | 9-11 | 52-78 | 1.2" | 10.1 |
| 175QJ10-81/6 | 4 | 5 | 9-11 | 65-97 | 1.2" | 10.1 |
| 175QJ10-95/7 | 5.5 | 7 | 9-11 | 76-114 | 1.2" | 13.6 |
| 175QJ10-108/8 | 5.5 | 7 | 9-11 | 86-128 | 1.2" | 13.6 |
| 175QJ10-121/9 | 7.5 | 10 | 9-11 | 96-140 | 1.2" | 18.4 |
| 175QJ10-135/10 | 9.2 | 13 | 9-11 | 130-140 | 1.2" | 22.1 |
| 175QJ10-150/11 | 9.2 | 13 | 9-11 | 144-146 | 1.2" | 22.1 |
| 175QJ10-165/12 | 11 | 15 | 9-11 | 158-172 | 1.2" | 26.1 |
| 175QJ10-180/13 | 11 | 15 | 9-11 | 173-187 | 1.2" | 26.1 |
| 175QJ10-195/14 | 13 | 18 | 9-11 | 187-203 | 1.2" | 30.1 |
| 175QJ10-210/15 | 13 | 18 | 9-11 | 201-219 | 1.2" | 30.1 |
| 175QJ10-225/16 | 13 | 18 | 9-11 | 216-234 | 1.2" | 30.1 |
| 175QJ10-240/17 | 15 | 20 | 9-11 | 230-250 | 1.2" | 34.7 |
| 175QJ10-255/18 | 15 | 20 | 9-11 | 245-265 | 1.2" | 34.7 |
| 175QJ20-91/7 | 9.2 | 13 | 18-22 | 78-105 | 2" | 34.7 |
| 175QJ20-104/8 | 11 | 15 | 18-22 | 89-120 | 2" | 42.6 |
| 175QJ20-117/9 | 13 | 18 | 18-22 | 100-135 | 2" | 42.6 |
| 175QJ20-130/10 | 15 | 20 | 18-22 | 110-150 | 2" | 42.6 |
| 175QJ20-143/11 | 15 | 20 | 18-22 | 120-165 | 2" | 49.7 |
| 175QJ25-65/5 | 7.5 | 10 | 23-27 | 53-76 | 2" | 18.4 |
| 175QJ25-78/6 | 9.2 | 13 | 23-27 | 66-92 | 2" | 22.1 |
| 175QJ25-91/7 | 11 | 15 | 23-27 | 75-105 | 2" | 26.1 |
| 175QJ25-104/8 | 13 | 18 | 23-27 | 98-118 | 2" | 30.1 |
| 175QJ25-117/9 | 15 | 20 | 23-27 | 100-135 | 2" | 34.7 |
| 175QJ25-130/10 | 15 | 20 | 23-27 | 110-150 | 2" | 34.7 |
| 175QJ32-24/2 | 4 | 5 | 29-35 | 19-28 | 3" | 10.1 |
| 175QJ32-36/3 | 5.5 | 7 | 29-35 | 28-42 | 3" | 13.6 |
| 175QJ32-48/4 | 7.5 | 10 | 29-35 | 40-56 | 3" | 18.4 |
| 175QJ32-60/5 | 9.2 | 13 | 29-35 | 50-70 | 3" | 22.1 |
| 175QJ32-72/6 | 11 | 15 | 29-35 | 60-80 | 3" | 26.1 |
| 175QJ32-84/7 | 13 | 18 | 29-35 | 71-96 | 3" | 30.1 |
| 175QJ32-96/8 | 15 | 20 | 29-35 | 82-110 | 3" | 34.7 |
| 175QJ32-108/9 | 15 | 20 | 29-35 | 82-123 | 3" | 34.7 |
| 175QJ40-24/2 | 5.5 | 7 | 37-43 | 19-28 | 3" | 13.6 |
| 175QJ40--36/3 | 7.5 | 10 | 37-43 | 28-42 | 3" | 18.4 |
| 175QJ40-48/4 | 9.2 | 13 | 37-43 | 40-56 | 3" | 22.1 |
| 175QJ40-60/5 | 11 | 15 | 37-43 | 50-70 | 3" | 26.1 |
| 175QJ40-72/6 | 13 | 18 | 37-43 | 60-82 | 3" | 30.1 |
| 175QJ40-84/7 | 15 | 20 | 37-43 | 71-96 | 3" | 34.7 |
| 175QJ50-24/2 | 5.5 | 7 | 46-54 | 19-28 | 3" | 13.6 |
| 175QJ50-36/3 | 7.5 | 10 | 46-54 | 28-42 | 3" | 18.4 |
| 175QJ50-48/4 | 11 | 15 | 46-54 | 40-56 | 3" | 26.1 |
| 175QJ50-60/5 | 13 | 18 | 46-54 | 50-70 | 3" | 30.1 |
| 175QJ50-72/6 | 15 | 20 | 46-54 | 60-82 | 3" | 34.7 |
| 200QJ15-26/2 | 2.2 | 3 | 13-17 | 23-29 | 3" | 5.6 |
| 200QJ15-39/3 | 3 | 4 | 13-17 | 34-46 | 3" | 7.9 |
| 200QJ15-54/4 | 4 | 5 | 13-17 | 46-62 | 3" | 10.1 |
| 200QJ15-65/5 | 5.5 | 7 | 13-17 | 55-75 | 3" | 13.6 |
| 200QJ15-81/6 | 7.5 | 10 | 13-17 | 68-92 | 3" | 18 |
| 200QJ20-30/2 | 3 | 4 | 18-22 | 22-33 | 3" | 7.9 |
| 200QJ20-40/3 | 4 | 5 | 18-22 | 32-48 | 3" | 10.1 |
| 200QJ20-93/7 | 10 | 14 | 18-22 | 79-107 | 2" | 24.7 |
| 200QJ20-108/8 | 13 | 18 | 18-22 | 92-125 | 2" | 29.7 |
| 200QJ20-121/9 | 13 | 18 | 18-22 | 103-140 | 2" | 29.7 |
| 200QJ20-135/10 | 15 | 20 | 18-22 | 115-156 | 2" | 33.9 |
| 200QJ20-148/11 | 15 | 20 | 18-22 | 126-170 | 2" | 33.9 |
| 250QJ50-33/2 | 7.5 | 10 | 46-54 | 28-38 | 3" | 18 |
| 250QJ50-60/3 | 15 | 20 | 46-54 | 51-69 | 3" | 33.9 |
| 250QJ100-36/2 | 15 | 20 | 80-120 | 32-42 | 4" | 33.9 |
| 250QJ140-15/1 | 9.2 | 13 | 130-150 | 13-17 | 5" | 21.7 |
| 250QJ160-15/1 | 13 | 18 | 148-172 | 12-18 | 5" | 30.1 |
If these submersible irrigation pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable pump for you.
Working conditions of submersible irrigation pump:
Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
Motor must be filled with clean water.
The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.
Water temperatureshould not higher than 20 ℃.
Sand content of the water (by quality) not more than 0.01%.
Water PH 6.5~8.5.
The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.
The content of chloridion in water shouldnot be higher than 400mg/l.
The water source must provide enough water for the pump to work continuously.
