Single Stage Horizontal Split Case Centrifugal Pump Large Flow 110-12500m3/h

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Horizontal split case pump is packed by wooden case or as your request Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: OS

Detail Information

Flow Rate: 110-12500m3/h Head: 6.5-200m
Power: 18.5-2000kw Install: Horizonal
Motor: 100% Copper Wire Fuel: Electric/Diesel
Structure: Single Stage
High Light:

horizontal split case centrifugal pump

,

double suction horizontal split case pump

Product Description

Large Flow 110-12500m3/h Single Stage Centrifugal Horizontal Split Case Pump



OS horizontal split case pump overview:

S series single stage, double suction, split case centrifugal water pump is used for transport clean water or similar with liquid water. Liquid temperature could up to 80 ℃. If fit cooling water system on both ends of the bearings , the liquid temperature can reach up to 130 ℃. Change the material of impeller, sealing ring and shaft sleeve, the pump could transport muddy water contain silt, the pump shaft sealing could use packing or mechanical seal.



OS horizontal split case pump materials:

  1. Pump casing: casting pig, ductalloy, cast steel;
  2. Impeller: bronze, casting pig, silicon brass, stainless steel;
  3. Shaft: stainless steel, carbon steel;
  4. Seal-ring on pump casing: bronze, casting pig, silicon brass, stainless steel

OS horizontal split case pump features:

  1. Axially splt casing
  2. Large capacity and low head
  3. Each impeller is statically and dynamically balanced
  4. Double suction impeller gives practically zero axial forces
  5. Good resist cavitation performance
  6. Packing seal or mechanical seal
  7. High-efficiency

OS horizontal split case pump applications:

  1. Water transportation in water plants

  2. Air conditioning water circulation

  3. Building water supply

  4. Irrigation

  5. Drainage pump station

  6. Electric power station

  7. Industrial water supply system

  8. Fire-fighting system and shipbuilding

  9. Seawater desalination system

OS horizontal split case pump overview:

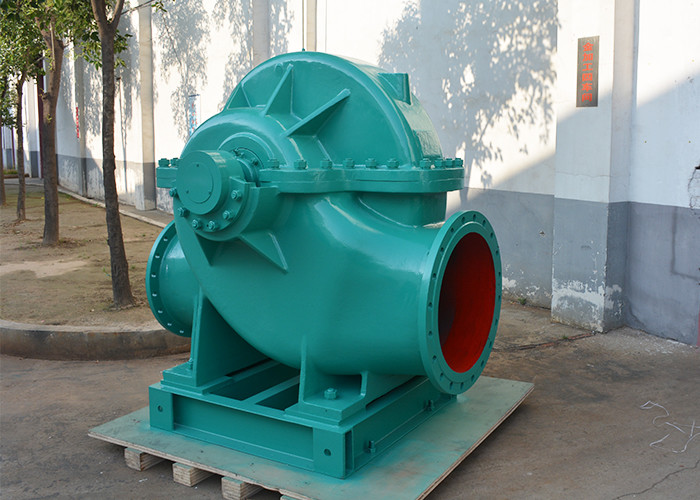

Single Stage Horizontal Split Case Centrifugal Pump Large Flow 110-12500m3/h 0

OS horizontal split case pump parameters:

Model

Capacity

Head

Speed

Motor Power

 OS

 m3/h

l/s

 m

 r/min

 kw

 OS80-270

 166

 207

248

46.1

57.5

69

97.5

90

79

2900

75

156

194

233

43.2

54

64.8

83.5

77

69

75

147

184

220

40.8

51

61.2

70

63.5

55

55

138

172

198

38.4

48

55



56.5

50

45

37

 OS100-250

230

288

346

64

80

96

83

75

67

2900

90

219

274

328

60.8

76

91.2

69

63

55

75

209

261

313

58

72.5

87

59

52

46.5

55

193

240

290

53.6

66.7

80.6

49

45

37

45

OS125-300

428

535

640

118.8

148.5

178.3

117

108

94

2900

200

397

497

596

110.3

138

165.6

97

88

75

160

363

454

544

100.8

126

151.2

80

72

62

132

323

403

484

89.6

112

134.4

65

57

47

90

 OS200-520

654

817

960

181.7

227

272.2

96

91

83

1450

280

605

756

907

168

210

252

82.5

76.5

70

250

565

706

847

156.9

196.1

235.2

67

62.5

55

200

518

648

778

144

180

216.1

52.3

47.5

42

132

OS300-700

1469

1836

2070

408

510

575

170

160

151

1450

1120

1388

1735

2082

386

482

578

147

136

125

900

1298

1623

1948

361

451

541

122

112

100

630

710

1230

1537

1845

342

427

512

100

91

80

500

560

If these horizontal split case pumps do not meet your requirements, please feel free to contact us. We will choose one suitable model for you.
