Double Suction Horizontal Split Case Pump For Farm Irrigation Water Supply System

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Horizontal split case pump is packed by wooden case or as your request Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: OS

Detail Information

Flow Rate: 110-12500m3/h Head: 6.5-200m
Power: 18.5-850kw Install: Horizonal
Motor: 100% Copper Wire Fuel: Electric/Diesel
Structure: Single Stage
High Light:

horizontal split case centrifugal pump

,

horizontal single stage centrifugal pump

Product Description

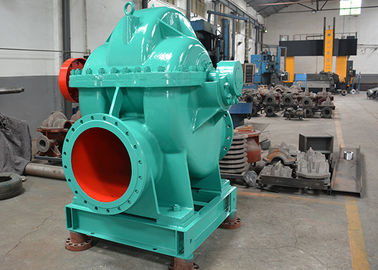

Large Flow Farm Irrigation Centrifugal Double Suction Horizontal Split Case Pump



Horizontal split case pump performance parameters:

  1. Sizes: DN 100 to 1200 mm
  2. Capacities: Q 110 to 12500 m3/h
  3. Heads: H 10 to 220m
  4. Pressures: P up to 2.5 MPa
  5. Temperature: 0-105℃
  6. Outlet diameter: φ80~φ800mm

OS horizontal split case pump material:

  1. Pump casing: casting pig, ductalloy, cast steel;
  2. Impeller: bronze, casting pig, silicon brass, stainless steel;
  3. Shaft: stainless steel, carbon steel;
  4. Seal-ring on pump casing: bronze, casting pig, silicon brass, stainless steel

OS horizontal split case pump features:

  1. Axially splt casing
  2. Large capacity and low head
  3. Each impeller is statically and dynamically balanced
  4. Double suction impeller gives practically zero axial forces
  5. Good resist cavitation performance
  6. Packing seal or mechanical seal
  7. High-efficiency

Horizontal split case pump applications:

  1. Water supply system
  2. District heating system
  3. Air-conditioning system
  4. Seawater desalination system
  5. Firefighting system

OS horizontal split case pump overview:

Double Suction Horizontal Split Case Pump For Farm Irrigation Water Supply System 0

OS horizontal split case pump parameters:

Model

Capacity

Head

Speed

Motor Power

 OS

 m3/h

l/s

 m

 r/min

 kw

 OS80-270

 166

 207

248

46.1

57.5

69

97.5

90

79

2900

75

156

194

233

43.2

54

64.8

83.5

77

69

75

147

184

220

40.8

51

61.2

70

63.5

55

55

138

172

198

38.4

48

55



56.5

50

45

37

 OS100-250

230

288

346

64

80

96

83

75

67

2900

90

219

274

328

60.8

76

91.2

69

63

55

75

209

261

313

58

72.5

87

59

52

46.5

55

193

240

290

53.6

66.7

80.6

49

45

37

45

OS125-300

428

535

640

118.8

148.5

178.3

117

108

94

2900

200

397

497

596

110.3

138

165.6

97

88

75

160

363

454

544

100.8

126

151.2

80

72

62

132

323

403

484

89.6

112

134.4

65

57

47

90

 OS200-520

654

817

960

181.7

227

272.2

96

91

83

1450

280

605

756

907

168

210

252

82.5

76.5

70

250

565

706

847

156.9

196.1

235.2

67

62.5

55

200

518

648

778

144

180

216.1

52.3

47.5

42

132

OS300-700

1469

1836

2070

408

510

575

170

160

151

1450

1120

1388

1735

2082

386

482

578

147

136

125

900

1298

1623

1948

361

451

541

122

112

100

630

710

1230

1537

1845

342

427

512

100

91

80

500

560

If these horizontal split case pumps do not meet your requirements, please feel free to contact us. We will choose one suitable model for you.
