7.5kw 37kw 75kw Hot Water Submersible Pump For Physiotherapy / Health Care

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Hot water submersible pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram, L/C Supply Ability : 6863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QJR

Detail Information

Flow Rate: 10-500m3/h Head: 15-405m
Material: Cast Iron/Stainless Steel Voltage: 380v/415v/420v/460v/480v/660v /1140v
Power: 2.2kw-160kw Install: Vertical
Motor: 100% Copper Wire Applications: Heating For Warmth, Physiotherapy, Health Care, Earth Energy Utilization
High Light:

hot water submersible well pump

,

inline hot water pump

Product Description

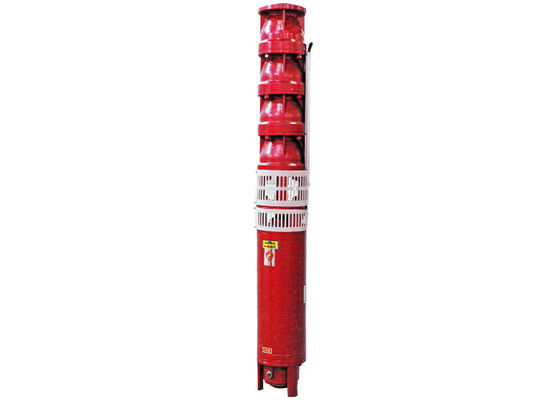

QJR 2.2kw 7.5kw 37kw 75kw Deep Well Hot Water Submersible Pump For Physiotherapy



Hot water submersible pump overview:

  1. Flow:10-500m3/h
  2. Lift: 15-405m
  3. Caliber: φ175-φ600mm
  4. Power: 2-2kw-160kw
  5. Temperature: <105℃
  6. Material: cast iron

Hot water submersible pump applications:

  1. Heating for warmth
  2. Physiotherapy
  3. Health care
  4. Earth energy utilization

Hot water submersible pump features:

  1. Motor driven pump
  2. Simplistic optimized construction
  3. Easy to install and filed-strip
  4. Small in volume
  5. Steady in operation, no pollution to water
  6. featuring heat-resisting, corrosion resistance, anti-aging

Hot water submersible pump parameters:

Model Motor Power Flow range Meter range Outlet size Rated current
QJ Series kw hp m3/h (m) Inch (") A
175QJR10-65/5 4 5 9/11 52-78 1.2" 10.1
175QJR10-81/6 4 5 9/11 65-97 1.2" 10.1
175QJR10-135/10 9.2 13 9/11 130-140 1.2" 22.1
175QJR10-150/11 9.2 13 9/11 144-146 1.2" 22.1
175QJR10-195/14 13 18 9/11 187-203 1.2" 30.1
175QJR10-210/15 13 18 9/11 201-219 1.2" 30.1
175QJR10-225/16 13 18 9/11 216-234 1.2" 30.1
175QJR25-91/7 11 15 23-27 75-105 2" 26.1
175QJR25-104/8 13 18 23-27 98-118 2" 30.1
175QJR32-60/5 9.2 13 29-35 50-70 3" 22.1
175QJR32-72/6 11 15 29-35 60-80 3" 26.1
175QJR32-84/7 13 18 29-35 71-96 3" 30.1
175QJR32-96/8 15 20 29-35 82-110 3" 34.7
175QJR50-72/6 15 20 46-54 60-82 3" 34.7
200QJR15-26/2 2.2 3 13-17 23-29 3" 5.6
200QJR15-39/3 3 4 13-17 34-46 3" 7.9
200QJR20-93/7 10 14 18-22 79-107 2" 24.7
200QJR20-108/8 13 18 18-22 92-125 2" 29.7
200QJR20-121/9 13 18 18-22 103-140 2" 29.7
200QJR20-351/26 45 61 18-22 298-403 2" 96.9
200QJR25-196/14 25 34 23-27 160-225 2" 54.5
200QJR25-210/15 25 34 23-27 180-240 2" 54.5
200QJR25-308/22 37 50 23-27 260-355 2" 79.7
200QJR32-96/6 15 20 29-35 77-115 3" 33.9
200QJR32-130/10 22 30 29-35 108-155 3" 48.2
200QJR32-169/13 25 34 29-35 144-195 3" 65.4
200QJR32-176/11 30 41 29-35 148-203 3" 65.4
200QJR32-273/21 45 61 29-35 232-313 3" 96.9
200QJR40-143/11 25 34 37-43 121-170 3" 54.5
200QJR40-156/12 30 41 37-43 132-180 3" 65.4
200QJR50-105/7 25 34 46-54 84-126 3" 54.5
200QJR50-135/9 30 41 46-54 119-162 3" 65.4
200QJR50-143/11 37 50 46-54 121-165 3" 79.7
200QJR50-150/10 37 50 46-54 128-173 3" 79.7
200QJR80-66/6 22 30 74-86 56-75 4" 48.2
200QJR80-110/10 45 61 74-86 95-125 4" 96.9
200QJR100-75/5 37 50 80-120 72-77 4" 79.7
200QJR100-90/6 45 61 80-120 88-92 4" 96.9
200QJR100-105/7 45 61 80-120 102-107 4" 96.9
250QJR50-20/1 5.5 7 46-54 17-23 3" 13.6
250QJR50-220/11 55 75 46-54 187-253 3" 114.3
250QJR100-126/7 55 75 80-120 110-147 4" 114.3
250QJR140-45/3 30 41 130-145 40-52 5" 64.2
250QJR140-60/4 37 50 130-150 52-69 5" 77.8
250QJR140-75/5 45 61 130-145 65-86 5" 94.1
250QJR140-90/6 55 75 130-150 78-103 5" 114.3
300QJR200-80/4 75 102 186-214 68-92 6" 154.1
300QJR200-100/5 90 122 186-214 85-115 6" 183.8
300QJR200-120/6 110 150 186-214 100-138 6" 222.1
300QJR240-22/1 22 30 223-257 18-25 6" 249.5
300QJR240-88/4 100 136 223-257 75-101 6" 154.1
300QJR500-30/2 75 102 460-540 29-32 8" 131.7
300QJR500-45/3 110 150 460-540 43-47 8" 183.8
300QJR500-90/6 220 299 460-540 87-93 8" 436.2

If these hot water submersible pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable model for you.
