Electric Pipeline Water Pump In Line Water Booster Pump 6.3m3/h-550m3/h

Product Details:
Place of Origin: China
Brand Name: APK
Certification: ISO;CE
Model Number: Pipeline Water Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Please contact us as below
Packaging Details: Pipeline water pump is packed by wooden case
Delivery Time: Within 2-5 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 1000 sets per month

Detail Information

Head: 12m-160m Flow Rate: 20-550m3/h
Voltage: 380v Or Customized Power: 22kw 30kw 37kw 45kw 55kw
Install: Vertical Or Horizontal Fuel: Electric
High Light:

water supply booster pump

,

centrifugal booster pump

Product Description

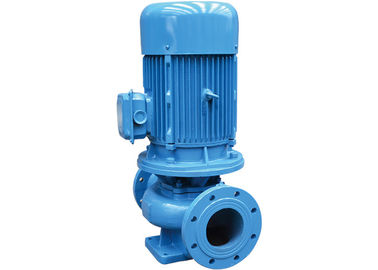

22kw 30kw 37kw 45kw 55kw Vertical Booster Inline Centrifugal Pipeline Water Pump



SLG/SLW pipeline water pump overview:

SLG vertical channel pump is for conveying water and other liquids whose physical properties similar to water. Using the medium below 80°C.

1. Flow: 20m3/h-550m3/h

2. Head: 35-160m

3. Power: 22kw-55kw

4. Outlet diameter: φ32-φ500mm

5. Temperature: 0~80℃

SLG/SLW Pipeline water pump overview:

Electric Pipeline Water Pump In Line Water Booster Pump 6.3m3/h-550m3/h 0

SLG/SLW Pipeline water pump parameters:

Model Flow Head Power
SLW/SLG m3/h m kw
SLW/SLG32-200 5 50 3
SLW/SLG40-160 6.3 32 2.2
SLW/SLG40-200 6.3 50 4
SLW/SLG40-250 6.3 80 7.5
SLW/SLG50-160 12.5 32 3
SLW/SLG50-250 12.5 80 11
SLW/SLG65-250 25 80 15
SLW/SLG65-315 25 125 30
SLW/SLG80-315 50 125 37
SLW/SLG80-350 50 150 55
SLW/SLG100-125 100 20 11
SLW/SLG100-200 100 50 22
SLW/SLG100-250 100 80 37
SLW/SLG100-350 100 150 90
SLW/SLG125-100 160 12.5 11
SLW/SLG125-125 160 20 15
SLW/SLG125-315 160 125 90
SLW/SLG150-125 160 20 15
SLW/SLG150-500 200 80 90
SLW/SLG200-250 200 20 18.5
SLW/SLG200-500 200 80 90
SLW/SLG250-250 550 20 45
SLW/SLG300-250 720 20 55
SLW/SLG300-500 720 80 250
SLW/SLG350-250 1200 20 90
SLW/SLG350-400 1200 50 250
SLW/SLG400-400 1080 12.5 55
SLW/SLG500-625 1200 32 160
SLW/SLG500-500 1200 20 110

SLG/SLW Pipeline water pump applications:

1. Water supply/distribution

2. Garden sprinkler irrigation

3. Lift water for cooling tower

4. Long distance water delivery

5. Water cycle

6. Pressure boosting system

​​SLG/SLW pipeline water pump features:

1. Axial direction is short, compact structure

2. High efficiency, energy-saving

3. Low noise

4. Reliable performance

SLG/SLW pipeline water pump using conditions:

1.The maximum working pressure of pump system ≤1.6MPa, pump inlet pressure + pump lift ≤1.6MPa , so when ordering please indicate the system working pressure. When the inlet pressure is greater than 0.4 MPa or the system working pressure is greater than 1.6MPa, please put forward when ordering , so that when manufacturing we can use copper materials in the pump flow portion and connection portion.

2. Applicable medium : water type non-corrosive liquids, solid insoluble matter volume content of the medium is no more than 0.01% of the unit volume , particle size is no more than 0.2mm, if the medium has fine particles , please indicate when ordering 3. Ambient temperature doesn’t exceed 40°C,relative humidity is no more than 95%.
