Deep Submersible Well Water Pump For Irrigation 10hp 13hp 15hp 18hp 20hp 25hp

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Submersible well pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QJ

Detail Information

Head: 5-600m Flow:: 5-2000m3/h
Pump Diameter: 175mm-600mm Power:: 10hp 13hp 15hp 18hp 20hp 25hp
Voltage: 380v/415v/420v/460v/480v/660v /1140v Frequency:: 3 Phase 50hz/60hz
Motor: 100% Copper Wire Protection Class: IP68
High Light:

submersible water pump

,

submersible underwater pumps

Product Description

Head 5-600m 10hp 13hp 15hp 18hp 20hp 25hp Water Deep Submersible Well Pump



Product overview :

QJ submersible well pump is widely used in farmland irrigation, spray irrigation, water supply system for industrial buildings and civil buildings, water distribution system in mountain areas, low-lying areas and dunes, water supply and water drainage system for mines in urban or rural districts, and other water conservancy facilities.



Submersible well pump materials:

  1. Impeller: Cast iron HT200, or stainless steel
  2. Pump bowl: Cast iron HT200 or stainless steel ss304 / ss316
  3. Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
  4. Motor Seal: Rubber O-ring seal,mechanical seal
  5. Motor regulating sleeve: rubber

Working conditions of submersible well pump:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

  2. Motor must be filled with clean water.

  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.

  4. Water temperatureshould not higher than 20 ℃.

  5. Sand content of the water (by quality) not more than 0.01%.

  6. Water PH 6.5~8.5.

  7. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.

  8. The content of chloridion in water shouldnot be higher than 400mg/l.

  9. The water source must provide enough water for the pump to work continuously.

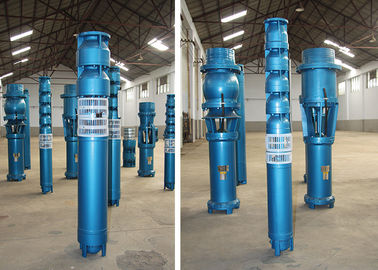

Submersible well pump pictures:

Deep Submersible Well Water Pump For Irrigation 10hp 13hp 15hp 18hp 20hp 25hp 0

Deep Submersible Well Water Pump For Irrigation 10hp 13hp 15hp 18hp 20hp 25hp 1

Submersible well pump parameters:

Well diameter

Model

Motor Power

Flow range

Meter range

Inch (") QJ Series (kW) HP m3/h (m)
7" 175QJ10-121/9 7.5 10 9-11 96-140
7" 175QJ10-135/10 9.2 13 9-11 130-140
7" 175QJ10-150/11 9.2 13 9-11 144-146
7" 175QJ10-165/12 11 15 9-11 158-172
7" 175QJ10-180/13 11 15 9-11 173-187
7" 175QJ10-195/14 13 18 9-11 187-203
7" 175QJ20-143/11 15 20 18-22 120-165
8" 200QJ15-81/6 7.5 10 13-17 68-92
8" 200QJ20-93/7 10 14 18-22 79-107
8" 200QJ20-108/8 13 18 18-22 92-125
8" 200QJ20-121/9 13 18 18-22 103-140
8" 200QJ20-135/10 15 20 18-22 115-156
8" 200QJ25-182/13 22 30 23-27 150-210
8" 200QJ32-160/10 25 34 29-35 136-184
8" 200QJ40-182/14 37 50 37-43 154-214
8" 200QJ50-105/7 25 34 46-54 84-126
8" 200QJ50-117/9 25 34 46-54 94-140
8" 200QJ50-120/8 30 41 46-54 96-144
8" 200QJ50-143/11 37 50 46-54 121-165
8" 200QJ100-30/2 15 20 80-120 26-32
10" 250QJ50-200/10 45 61 46-54 170-230
10" 250QJ50-240/12 55 75 46-54 204-276
10" 250QJ50-280/14 63 86 46-54 268-322
10" 250QJ63-100/5 30 41 58-68 75-100
10" 250QJ63-200/10 55 75 58-68 170-230
10" 250QJ63-220/11 63 86 58-68 180-253
10" 250QJ63-260/13 75 102 58-68 220-299
10" 250QJ63-300/15 90 122 58-68 205-343
10" 250QJ140-60/4 37 50 130-150 52-69
10" 250QJ160-30/2 22 30 148-172 25-35
10" 250QJ160-45/3 30 41 148-172 38-51
10" 250QJ160-60/4 45 61 148-172 52-69
10" 250QJ160-75/5 55 75 148-172 65-86
12" 300QJ200-100/5 90 122 186-214 85-115
12" 300QJ200-120/6 110 150 186-214 100-138
12" 300QJ240-22/1 22 30 223-257 18-25
12" 300QJ240-44/2 45 61 223-257 37-51
12" 300QJ240-66/3 75 102 223-257 56-76
12" 300QJ240-88/4 100 136 223-257 75-101
12" 300QJ400-40/1 75 102 368-432 38-42
12" 300QJ400-80/2 160 218 368-432 76-84
12" 300QJ400-120/3 220 299 368-432 117-123
12" 300QJ500-60/4 140 190 460-540 57-63
12" 300QJ500-75/5 180 245 460-540 72-78

If these submersible well pump parameters do not meet your demand, please feel free to contact us. We will choose one model for you.
