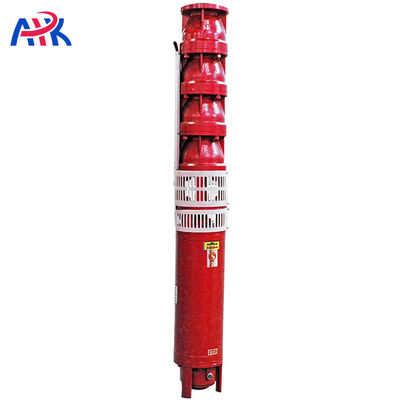

Vertical 2900rpm / 1450rpm Cast Iron Submersible Pump 2.2kw - 410kw Power

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Hot water submersible pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 8578 pieces per month
Place of Origin: Henan, China Brand Name: APK
Certification: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER Model Number: hot water submersible pump

Detail Information

Flow: 5-3500m3/h Head: 10-600m
Power: 2.2-410kw Voltage: 380v/440v/600v Or As Per Request
Frequency: 3 Phase 50hz 60hz Material: Cast Iron/ss304/ss316/ss316l
Impeller: Closed Impeller Temperature: Up To 90℃
Quality Warranty: One Year Or More
High Light:

submersible hot water pump

,

inline hot water pump

Product Description

2900 rpm 1450rpm Cast Iron Sumergible Pumps Vertical Hot Water Submersible Pump





Hot water submersible pump overview:



1. Power: 2.2kw-410kw

2.Flow: 10-2500m3/h

3.Lift: 10-405m

4.Temperature: <105°C

5. Diameter: 7" 8" 10" 12" 14" 16" 18" hot water submersible pump

6. Rubber bearing, sealing, ring, high temperature resistance



Hot water submersible pump applications: Heating for warmth, physiotherapy, health care, earth energy utilization, etc.


Vertical 2900rpm / 1450rpm Cast Iron Submersible Pump 2.2kw - 410kw Power 0



Hot water submersible pump features:

1) The single-stage lift is high, and the single-stage pump casing is short in height, which shortens the height of the whole machine and increases the stability of operation.

2) The diameter of the pump shaft is much larger than the diameter of the national standard, which increases the safety factor for extracting the groundwater source of the super deep well.

3) Castings use HT250 super deep well pump casing to use ductile iron or cast steel to increase the coefficient of the pump casing.

4) The check valve adopts a unique design method, which fundamentally avoids the disadvantages of the valve body breaking unit falling out due to the excessive impact of the water and water hammer when the ultra deep well submersible pump is stopped.

5) The small axial force increases the service life of the motor and improves the efficiency of the unit.

Hot water submersible pump parameters:

Pump diameter Model Flow Range Head Range Power Temperature
Inch (") QJ Series m3/h m kw
7" 175QJ 9-54m3/h 19-265m 2.2-37kw <90℃
8" 200QJ 13-120m3/h 12-465m 2.2-45kw
10" 250QJ 46-214m3/h 16-430m 5.5-125kw
12" 300QJ 186-540m3/h 14-138m 18.5-220kw
14" 350QJ 233-335m3/h 18-130m 30-185kw
16" 400QJ 388-540m3/h 18- 83m 45-185kw
20" 500QJ 600-680m3/h 26-86m 90-260kw
24" 600QJ 750-1200m3/h 18-77m 110-300kw

It is summarize of hot water submersible pump parameter. If you would like to know more pump details or catalog, please feel free to send an inquiry.
