315KW 250KW 280KW Sewage Cutting Pump Sewage Treatment Plant 6000M3/H
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Please contact us as below |
|---|---|---|---|
| Packaging Details : | Sewage submersible pump is packed by wooden case. | Delivery Time : | 3-5 working days after payment confirmation |
| Payment Terms : | T/T, Western Union, L/C | Supply Ability : | 2530 sets per month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO; CE | Model Number: | Sewage Submersible Pump |
|
Detail Information |
|||
| Flow Rate: | 100m3/h Submersible Sewage Pump | Head Meters: | 10m Submersible Sewage Pump |
|---|---|---|---|
| Outlet Diameter: | 100mm Submersible Sewage Pump | Material: | SS316 Submersible Pump |
| Voltage: | 240v Submersible Pump | Power: | 5.5kw Submersible Pump |
| High Light: | 100m3/H Sewage Submersible Pump,10m Head Sewage Submersible Pump,3450r/Min Sewage Submersible Pump |
||
Product Description
100m3/h 10m 5.5kw 3 Phase 240v 60hz Sewage Submersible Pump Stainless Steel 316
Sewage submersible pump specifications to Turks and Caicos Islands:
| Discharge diameter: 100mm |
| Frequency: 3ph 240v 60hz |
| Speed: 3450 r/min |
| Current: 19A |
| Weight: 80kg |
| Application: pumping sewage water |
|
Control panel: one control box control 2 sewage submersible pumps |

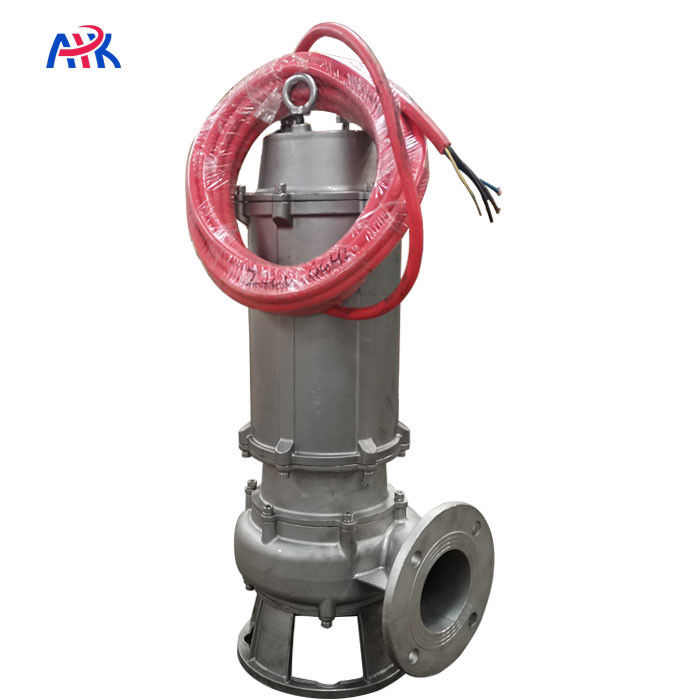

100WQP100-10-5.5kw, SS316 submersible sewage pump image:
Stainless steel sewage submersible pump control box, used in outdoor:
Sewage submersible pump specifications:
The submersible sewage pump (hereinafter referred to as the electric pump) consists of three parts: motor, pump and seal.The motor is located at the upper part of the electric pump, which is a three-phase asynchronous motor. The alloy double-end mechanical seal is used between the pump and the motor.This model has features such as energy-saving, anti-winding, non-clogging, automatic installation and automatic control. This pump uses special structure impeller and new mechanical seals to make it more efficient in delivering sewage with solid particles and long fibers. Compared with traditional impellers, the new ones (spiral-flow type or double-leaf type) have an excellent delivery capacity, which improves the pump performance. It runs more smoothly without any vibration.
Sewage submersible pump applications:
Submersible sewage pump is widely used in industry, agriculture, mining, civil construction, municipal environmental protection and other places, it is the ideal equipment for pumping mud, mortar, domestic wastewater, sewage feces and urine, and containing short fiber, paper, sand and other solid particles and rural drainage irrigation river pond silt.
Submersible sewage pump types: It can be customized with 304/316 stainless steel type, high temperature resistent type and cutting impeller type.
Sewage submersible pump models:
| Outlet diameter | Model | Flow | Head | Power | |
| mm | WQ type | m3/h | m | kw | hp |
| 50 | 50WQ10-15-1.5 | 10 | 15 | 1.5 | 2 |
| 50 | 50WQ15-25-3 | 15 | 25 | 3 | 4 |
| 65 | 65WQ25-10-2.2 | 25 | 10 | 2.2 | 3 |
| 65 | 65WQ30-30-5.5 | 30 | 30 | 5.5 | 7 |
| 80 | 80WQ50-10-3 | 50 | 10 | 3 | 4 |
| 80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 |
| 100 | 100WQ60-10-4 | 60 | 10 | 4 | 5 |
| 100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 |
| 100 | 100WQ100-15-7.5 | 100 | 15 | 7.5 | 10 |
| 150 | 150WQ145-9-7.5 | 145 | 9 | 7.5 | 10 |
| 100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 |
| 150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 |
| 200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 |
| 100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 |
| 150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 |
| 200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 |
| 100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 |
| 150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 |
| 200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 |
| 250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 |
| 100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 |
| 150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 |
| 200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 |
| 250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 |
| 150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 |
| 200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 |
| 250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 |
| 300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 |
| 150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 |
| 200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 |
| 250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 |
| 350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 |
Submersible water pump factory showing:
APK is a professional ODM OEM electric sewage submersible pump manufacturer in China since 1996, got CE, ABS and ISO. Whether you are a trading company, distributor, end users, project planning or for a tender, we have professional sale team and technical team to service.
