Horizontal Double Suction Vertically Split Casing Water Pump Power Station Diesel Engine

Minimum Order Quantity : 1 set Price : Please feel free to contact us
Packaging Details : Split case water pump is packed with seaworthy export standard plywood case. Delivery Time : 15-25 working days after payment confirmation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;SGS Model Number: Diesel Engine Water Pump

Detail Information

Capacity: 110m3/hr-12500m3/hr Head: 10m-220m
Install: Horizontal Material: Cast Iron/stainless Steel
Power Supply: Diesel Engine Warranty: 24 Months
High Light:

110m3/H Horizontal Split Case Pump

,

SGS Diesel Horizontal Split Case Pump

,

37kw Horizontal Split Case Pump

Product Description



Horizontal Double Suction Vertically Split Casing Water Pump Power Station Diesel Engine



  Single stage double suction horizontal split centrifugal water pump. The suction port and discharge port of this type of pump are both under the pump axis line. During maintenance, all parts and components can be removed for maintenance as long as the pump cover is uncovered.

  S-type pump is mainly composed of pump body, pump cover, shaft, impeller, sealing ring, shaft sleeve, bearing parts and shaft seal parts. It is used to transport clear water without solid particles or other liquids with physical and chemical properties similar to water. The temperature of the liquid being transported is -20~80℃. It is suitable for industrial and urban water supply and drainage, and farmland irrigation.



Double suction diesel engine water pump types:

(Notice: flow rate, head meters, material, and diesel engine brand, ODM OEM is available)

Type Capacity Head Motor power
OS Series m3/h l/s m kw
OS80-210 131 36.4 60.5 37
164 45.6 55
197 54.6 50
OS80-210 106 29.4 47.7 30
133 37.1 43.5
159 44.5 37
OS80-270 80 22.2 21.3 11
99 27.8 19
120 33.3 17
OS80-270 166 46.1 97.5 75
207 57.5 90
248 69 79
OS100-250 230 64 83 90
288 80 75
346 96 67
OS100-250 85 23.6 13.7 7.5
106 29.4 12.5
128 35.5 11.3
OS100-310 242 67.2 98 110
302 83.9 90
363 100.8 80
OS125-230 426 118.4 68 132
541 150.3 60
639 177.6 48
OS125-300 397 110.3 97 160
497 138 88
596 165.6 75
OS200-520 565 156.9 67 200
706 196.1 62.5
847 235.2 55
OS250-480 800 222.4 50 185
1000 278 45.5
1200 333.6 38
OS250-600 772 214.4 98 315
965 268.1 90
1158 321.6 80
OS300-30 835 232 23.5 75
1044 290 19.8
1253 348 15
OS300-560 1258 350 68 355
1573 437 62
1888 524 54
OS300-700 1388 386 147 900
1735 482 136
2082 578 125
OS350-360 1354 376 32 160
1692 470 26.5
2030 564 20
OS350-430 1987 552 27 220
2484 690 21.5
2981 828 15
OS350-510 1786 496 57.5 400
2232 620 50
2678 744 40
OS350-620 1020 283.3 94 560
1700 472.2 83
2150 597.2 69
OS400-540 1110 308.3 54 315
1850 513.9 43
2340 650 33
OS400-620 1440 400 94 710
2400 667 82
3020 839 66
OS500-510 1465 407 31.3 220
2775 771 22.5
3600 1000 14
OS500-700 1800 500 60 560
3005 835 49
3905 1085 35



Double suction water pump features:
1.High efficiency, lower noise

2.Rotor parts comply with API610

3.Rotation can be either Clockwise or Counter-Clockwise

4.Bearing lubricating is grease, oil type is also available

5.Impeller is balanced with ISO

6.Shaft seal can be either packing seal or mechanical seal

7.Rotation can be either Clockwise or Counter-Clockwise



Double suction water pump is powered by diesel engine (Brand as per request, such as Cummins engine).

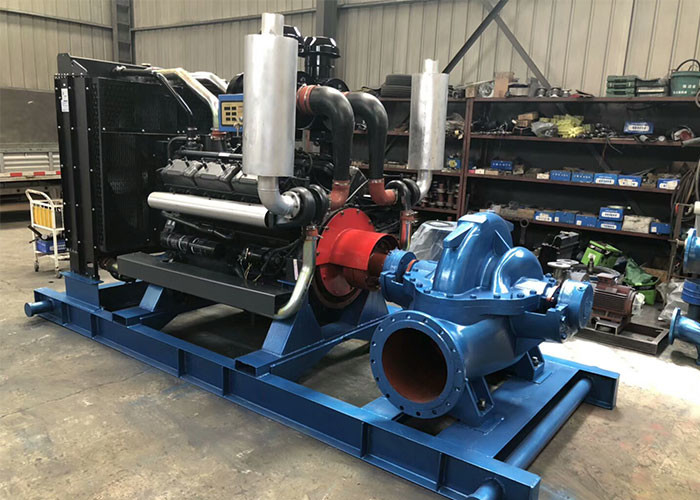

Horizontal Double Suction Vertically Split Casing Water Pump Power Station Diesel Engine 0

Double Suction Water Pump Applications:

1. Power generation industry: power plant cooling circulating pump/ open and closed water circulating pump

2. Paper industry: raw water suction pump

3. Steel industry: heating furnace circulating pump/high pressure descaling pump/rolling mill cooling pump

4. Water industry: waterworks water supply/urban drainage/fire water supply/water supply pump station/industrial water

5. Desalination: seawater supply pump/seawater re-circulation pump

6. Coal fired power stations

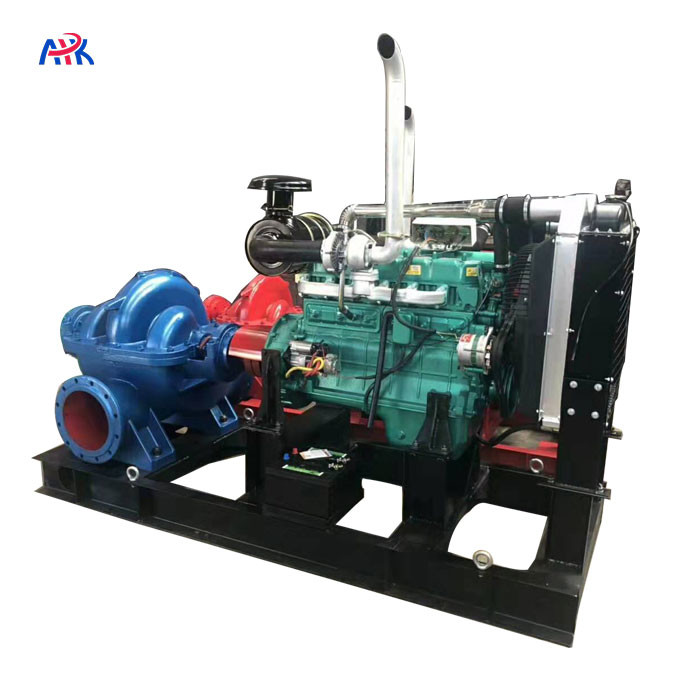

Horizontal Double Suction Vertically Split Casing Water Pump Power Station Diesel Engine 1

FAQ:

Q:How long is warranty?

A:About 24 months.



Q:How long is production lead time?

A:Depends on quantity, the normal small amount production is about 10-25 days.



Q:What’s type of shipping?

A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way



Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,

such as EXW, FOB, CIF.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
