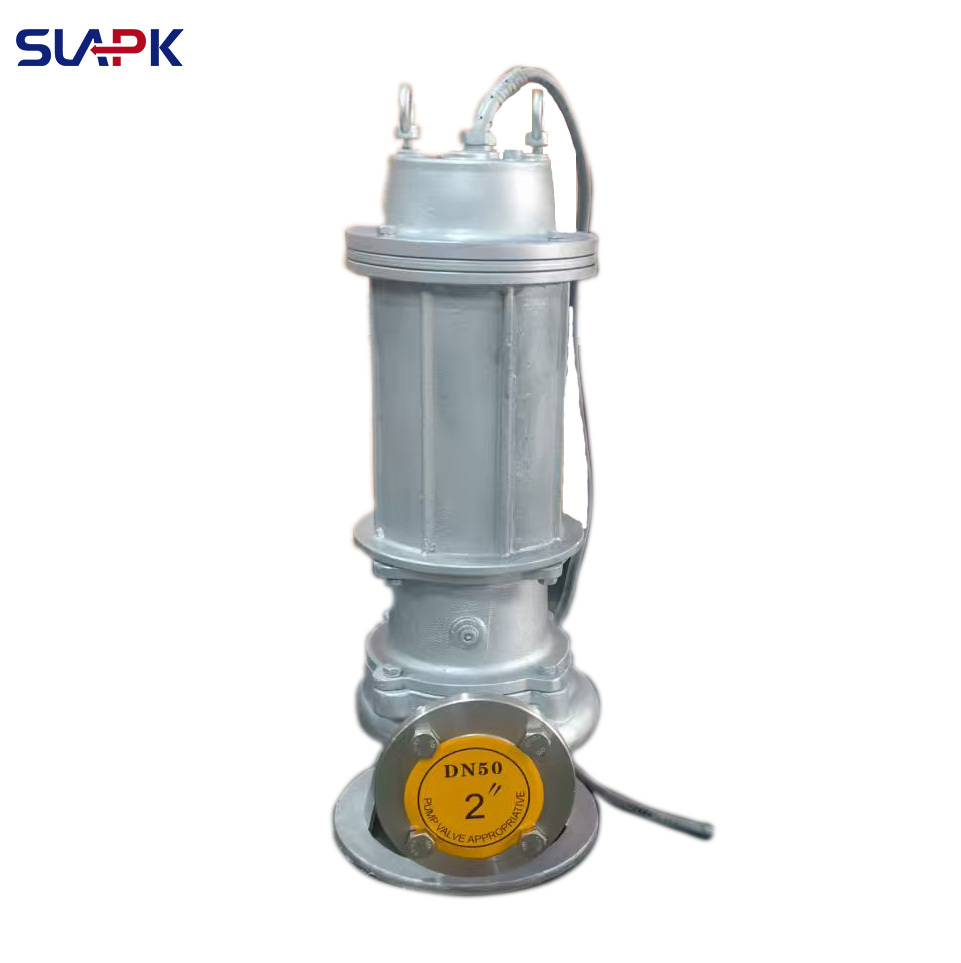

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater

Minimum Order Quantity : 1 piece Price : Inquiry or E-mail, please
Packaging Details : Explosion proof submersible pump is packed with seaworthy export standard plywood case. Delivery Time : 10-25 working days after payment confirmation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;ABS;SGS;BV Model Number: Sewage Submersible Pump

Detail Information

Flow: 40m3/h 100m3/h Submersible Pump Head Meters: 10m Submersible Pump
Motor Power: 2.2kw 5.5kw Submersible Pump Power Supply: 3 Phase 240v 60hz
Material: SS316 Warranty: 24 Months
High Light:

316 Stainless Steel Sewage Submersible Pump

,

Seawater Sewage Submersible Pump

,

40m3/h Sewage Submersible Pump

Product Description





316 Stainless Steel Sewage Submersible Pump Sea Rain With Control Cabinet Float for TURKS & CAICOS IS



Model: 80WQ40-10-2.2

- Outlet dia: 80mm

- Flow rate: 40 cubic meter oer hour

- Head meters: 10m

- Motor power: 2.2kw

- Power supply: 240V/60Hz, 3 phase

- Pump accessories: Match 2.2kw control cabinet(ABB VFD)

- Material: 316 stainless steel(pump and control cabinet)

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater 0

Testing each water submersible pump, matched with control panel.

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater 1



Second sewage submersible pump types:

-Model: 100WQ100-10-5.5

-Outlet dia: 100mm

-Flow rate: 100 m3/hr

-Head meters: 10m

-Motor power: 5.5kw

-Power supply: 240V/60Hz, 3 phase

-Match 5.5kw ABB VFD control cabinet(1 control cabinet control 2 pumps)

-Match 20kva variable-frequency power supply (1 set provide power to 2 pumps)

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater 2

Sewage submersible pump models:

(Notice: flow rate, head meters, material, power, ODM OEM is available)

Outlet diameter Model Flow Head Power
mm WQ type m3/h m kw hp
50 50WQ10-22-2.2 10 22 2.2 3
50 50WQ15-32-4 15 32 4 5
65 65WQ25-20-3 25 20 3 4
65 65WQ30-30-5.5 30 30 5.5 7
80 80WQ35-7-2.2 35 7 2.2 3
80 80WQ50-10-3 50 10 3 4
80 80WQ50-13-4 50 13 4 5
80 80WQ40-22-5.5 40 22 5.5 7
100 100WQ100-15-7.5 100 15 7.5 10
150 150WQ145-9-7.5 145 9 7.5 10
100 100WQ100-25-11 100 25 11 15
150 150WQ130-15-11 130 15 11 15
200 200WQ300-7-11 300 7 11 15
100 100WQ100-30-15 100 30 15 20
150 150WQ100-30-15 100 30 15 20
200 200WQ220-12-15 220 12 15 20
100 100WQ100-35-18.5 100 35 18.5 25
150 150WQ180-20-18.5 180 20 18.5 25
200 200WQ250-15-18.5 250 15 18.5 25
250 250WQ400-7-18.5 400 7 18.5 25
100 100WQ100-40-22 100 40 22 30
150 150WQ180-25-22 180 25 22 30
200 200WQ300-15-22 300 15 22 30
250 250WQ450-7-22 450 7 22 30
150 150WQ160-45-30 160 45 30 40
200 200WQ400-13-30 400 13 30 40
250 250WQ600-9-30 600 9 30 40
300 300WQ850-7-30 850 7 30 40
150 150WQ180-45-45 180 45 45 60
200 200WQ400-25-45 400 25 45 60
250 250WQ600-20-55 600 20 55 75
350 350WQ1300-12-75 1300 12 75 100

316 stainless steel material suit seawater and corrosive liquid.



The customer from TURKS & CAICOS IS, is a country by the sea. So all equipment must be Corrosion resistant.



Customer need sewage pump used for the sea water and dirty water after the ebb of the sea and rain. And also need control cabinet control sewage pump. Due to the application, so the head need low, main need large flow sewage pump.

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater 3



  Due to the power is single phase power supply, so the pump and control cabinet suit customer’s working conditions. For the control cabinet must be provided single power.

For the not more than 2.2kw VFD control cabinet, the inlet power can be single phase power, the outlet can be 3 phase power. So 2.2kw 3 phase sewage pump can general used for customer’s require working condition.



  For the 5.5kw sewage pump is 3 phase, the 5.5kw VFD control cabinet must be 3 phase. So the control cabinet inlet power must be 3 phase. The variable-frequency power supply suit the working condition. Variable-frequency power supply can be adjust the voltage, frequency and phase. Only the power supply can start the Variable-frequency power supply, the pump can general working.

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater 4

Note: control cabinet match float, the float connect wire must be correct. If wrong, the float can not working.

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater 5



FAQ:



Q:How long is warranty?

A:About 12 months.



Q:How long is production lead time?

A:Depends on quantity, the normal small amount production is about 10-25 days.



Q:What’s type of shipping?

A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way



Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,

such as EXW, FOB, CIF.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
