Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump
Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump
Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump
Contact Now

Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump

Minimum Order Quantity : 1 set Price : Please feel free to contact us
Packaging Details : Stainless steel submersible pump is packed by wooden case Delivery Time : Within 2-5 working days
Payment Terms : T/T, Western Union, L/C, MoneyGram, D/P, D/A Supply Ability : 2530 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO;CE Model Number: stianless steel submersible pump

Detail Information
Head: 30m Submersible Pump Flow:: 160m3/h Submersible Pump
Power: 22kw 30hp Submersible Pump Voltage: 380v 400v 440v 460v 480v Submersible Pump
Material: SS304 SS316 SS316L SS904L Submersible Pump Applications: Seawater Desalination,offshore,jack-up, Floating Dock,shipyard
Install: Vertical Submersible Pump Warranty: 12 Months
High Light:

ss submersible pump

,

stainless steel submersible water pump

Product Description

Saltwater Seawater Submersible Water Well Stainless Steel Submersible Pump Price



Stainless steel submersible pump overview :

Stainless steel submersible pump is normally used to transfer sea water or salt water, because of its corrosive resistance performance, they are also adopted for transferring other light corrosive liquid. Seldom corrosive droppings within pumping process makes them suitable for supplying domestic drinking water or municipal water .



Material: stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v. Anti-corrosive; a OEM ODM compertitive submersible pump manufacturer.



Stainless steel submersible pump materials:

  1. Impeller: Stainless steel ss304 / ss316
  2. Pump bowl: Stainless steel ss304 / ss316
  3. Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
  4. Motor Seal: Rubber O-ring seal,mechanical sea

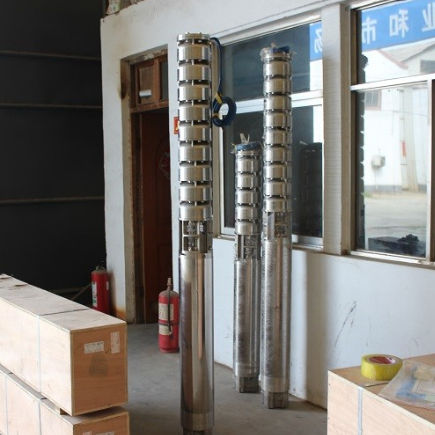

Stainless steel submersible pictures:

Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump 0

Stainless Steel Submersible Seawater Pumps , Submersible Well Water Pump 1



Stainless steel submersible pump parameters:

(Please kindly choose one submersible pump type you are intersted, or contact us directly)

Diameter Model Motor Power Flow range Meter range
Inch (") QJ Series kw hp m3/h (m)
7" 175QJH10-121/9 7.5 10 9/11 96-140
7" 175QJH10-135/10 9.2 13 9/11 130-140
7" 175QJH10-150/11 9.2 13 9/11 144-146
7" 175QJH10-165/12 11 15 9/11 158-172
7" 175QJH10-180/13 11 15 9/11 173-187
7" 175QJH10-195/14 13 18 9/11 187-203
7" 175QJH20-143/11 15 20 18-22 120-165
8" 200QJH15-81/6 7.5 10 13-17 68-92
8" 200QJH20-93/7 10 14 18-22 79-107
8" 200QJH20-108/8 13 18 18-22 92-125
8" 200QJH20-121/9 13 18 18-22 103-140
8" 200QJH20-135/10 15 20 18-22 115-156
8" 200QJH25-182/13 22 30 23-27 150-210
8" 200QJH32-160/10 25 35 29-35 136-184
8" 200QJH40-182/14 37 50 37-43 154-214
8" 200QJH50-105/7 25 35 46-54 84-126
8" 200QJH50-117/9 25 35 46-54 94-140
8" 200QJH50-120/8 30 40 46-54 96-144
8" 200QJH50-143/11 37 50 46-54 121-165
8" 200QJH100-30/2 15 20 80-120 26-32
10" 250QJH50-200/10 45 60 46-54 170-230
10" 250QJH50-240/12 55 75 46-54 204-276
10" 250QJH50-280/14 63 85 46-54 268-322
10" 250QJH63-100/5 30 40 58-68 75-100
10" 250QJH63-200/10 55 75 58-68 170-230
10" 250QJH63-220/11 63 85 58-68 180-253
10" 250QJH63-260/13 75 100 58-68 220-299
10" 250QJH63-300/15 90 120 58-68 205-343
10" 250QJH140-60/4 37 50 130-150 52-69
10" 250QJH160-30/2 22 30 148-172 25-35
10" 250QJH160-45/3 30 40 148-172 38-51
10" 250QJH160-60/4 45 60 148-172 52-69
10" 250QJH160-75/5 55 75 148-172 65-86
12" 300QJH200-100/5 90 120 186-214 85-115
12" 300QJH200-120/6 110 150 186-214 100-138
12" 300QJH240-22/1 22 30 223-257 18-25
12" 300QJH240-44/2 45 60 223-257 37-51
12" 300QJH240-66/3 75 100 223-257 56-76
12" 300QJH240-88/4 100 135 223-257 75-101
12" 300QJH400-40/1 75 100 368-432 38-42
12" 300QJH400-80/2 160 220 368-432 76-84
12" 300QJH400-120/3 220 300 368-432 117-123
12" 300QJH500-60/4 140 190 460-540 57-63
12" 300QJH500-75/5 180 245 460-540 72-78



Working conditions of stainless steel submersible pump:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

  2. Motor must be filled with clean water.

  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be le

  4. Sand content of the water (by quality) not more than 0.01%.

  5. Water PH 6.5~8.5.

  6. The content of chloridion in water shouldnot be higher than 400mg/l.

  7. The water source must provide enough water for the pump to work continuously.
