3 Phase Cast Iron Submersible Sewage Pump For Raw Rain Water Wastewater

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Submersible sewage pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram, L/C Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: WQ

Detail Information

Flow Rate: 5-4500m3/h Head: 5-200m
Power: 2.2-220kw Install: Vertical
Motor: 100% Copper Wire Voltage: 380v Or Customized
Material: Cast Iron Or Stainless Steel Outlet Diameter: φ25~φ400mm
High Light:

submersible sewage water pump

,

submersible dirty water pump

Product Description

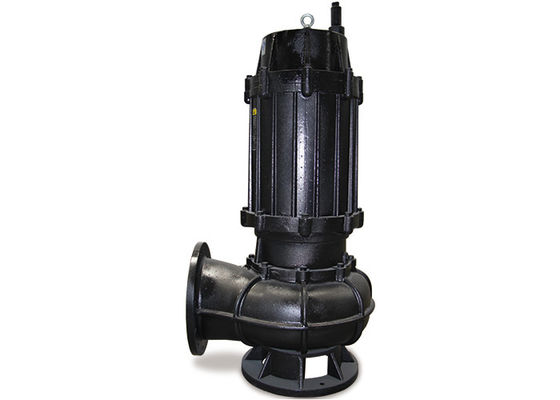

WQ Flow 5-4500m3/h Cast Iron Raw Rain Water Wastewater Submersible Sewage Pump



WQ submersible sewage pump overview:

WQ submersible sewage pump is sewage pump developed on the basis of the introduction of foreign advanced technology.

WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have strong drainage capacity.

  • Type: WQ series sewage pump
  • Power: 2.2kw-220kw
  • Voltage: 380v/440v or customized
  • Frequency: 3 phase 50hz/60hz
  • Flow: 5-4500m3/h
  • Head: 5-200m
  • Material: Cast iron or stainless steel

WQ submersible sewage pump applications:

  • Raw water, rain water

  • Municipal and industrial waste water

  • Sewage treatment

  • Construction

  • Other industrial applications

WQ submersible sewage pump features:

  • Compact structure, easy to use, easy installation
  • Specially adopting cyclone type and double flow type impeller, strong pollution discharge capacity.
  • The motor adopt hard corrosion-resistant single and double end face ceramic seal, good anti leakage effect, the motor running more safe and reliable.

WQ submersible sewage pump overview:

3 Phase Cast Iron Submersible Sewage Pump For Raw Rain Water Wastewater 0

3 Phase Cast Iron Submersible Sewage Pump For Raw Rain Water Wastewater 1

WQ submersible sewage pump parameters:

Model

Capacity

(m3/h)

Head

(m)

Power

(kw)

WQ15-40/1

15

40

5.5

WQ30-20/1

30

20

5.5

WQ15-50/1

15

50

7.5

WQ30-35

30

35

7.5

WQ15-60/1

15

60

9.2

WQ140-10/1

140

10

9.2

WQ15-80/1

15

80

11

WQ150-10

150

11

11

WQ100-20/1

100

20

13

WQ200-12/1

200

12

15

WQ180-15/1

180

15

15

WQ300-10/1

300

10

18.5

WQ200-16/1

200

16

18.5

WQ50-80/1

50

80

22

WQ300-12/1

300

12

22

WQ200-20/1

200

20

25

WQ100-50/1

100

50

25

WQ300-16/1

300

16

30

WQ100-60/1

100

60

30

WQ200-30/1

200

30

30

WQ100-60/1

100

60

30

WQ200-40

200

40

37

WQ300-25/1

300

25

37

If these submersible sewage pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable pump model for you.



WQ submersible sewage pump using condition:

  1. Voltage 380V or 660V (allowance error: 5%), 50Hz, three-phase alternating-current supply
  2. solid material volume ratio in pumped medium should be below 2%, Maximum pumped medium density is 1.2*103kg/ m3
  3. PH value should be 4-12
  4. Temperature should be not less than 50℃

Customer Case

1. Flow: 300m3/h

2. Head: 20m

3. Power: 37kw

4. Frequency: 380v/60hz

Our sewage submersible pump has beed worked for 11 years !

3 Phase Cast Iron Submersible Sewage Pump For Raw Rain Water Wastewater 2
