37kw 50hp 63m3/h 80m3/h 140m3/h Water Electric Submersible Pump

Minimum Order Quantity : 1 set Price : Please contact us as below
Packaging Details : Submersible water pump is packed by export wooden case. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE Model Number: 37kw 50hp submersible pump

Detail Information

Head: 60m 80m 100m 120m 160m 200m Submersible Pump Flow:: 63m3h 80m3h 100m3h 140m3h 200m3h Submersible Pump
Pump Diameter: 8 10 12 Inch Submersible Pump Power: 37kw 50hp Submersible Pump
Voltage: 380v 400v 440v 460v 480v Submersible Pump Frequency: 3 Phase 50hz/60hz
Warranty: 24 Months ODM OEM: Accept
High Light:

deep well submersible water pump

,

submersible deep well pumps

Product Description



37kw 50hp 63m3/h 80m3/h 140m3/h 8 10 12 Inch Vertical Deep Well Water Electric Submersible Pump



The cast iron submersible pump main part material as below:
1. The pump impeller, pump casing coupling part and motor casing is cast iron material.
2. The pump shaft is stainless steel material.
3. The bearing is graphite.
4. The winding is 100% copper with polyethylene insulation layer.
5. The rotor end ring is copper.
6. The stator casing is with 45# steel.
7. The stator is cold rolling silicon steel.



37kw 50hp submersible pump models:

Pump Diameter Model Power Flow range Head range
Inch(") QJ type kw hp m3/h m
8" 200QJ20-297/22 37 50 18-22 252-341
8" 200QJ20-338/25 37 50 18-22 287-388
8" 200QJ25-266/19 37 50 23-27 220-305
8" 200QJ25-308/22 37 50 23-27 260-355
8" 200QJ32-208/13 37 50 29-35 177-240
8" 200QJ32-240/15 37 50 29-35 204-276
8" 200QJ40-182/14 37 50 37-43 154-214
8" 200QJ40-208/16 37 50 37-43 177-247
8" 200QJ63-126/9 37 50 58-68 100-147
8" 200QJ100-75/5 37 50 80-120 72-77
10" 250QJ50-160/8 37 50 46-54 136-184
10" 250QJ63-120/6 37 50 58-68 100-147
10" 250QJ80-100/5 37 50 74-86 85-115
10" 250QJ140-60/4 37 50 130-150 52-69
12" 300QJ200-40/2 37 50 186-214 35-45



50hp water submersible pump specifications:



1. Pump Diameter: 8 10 12 inch submersible water pump

2. Flow: 32m3/h 40m3h 63m3h 80m3h 140m3h 200m3h submersible water pump
3. Head: 40m 60m 75m 100m 120m 160m submersible water pump
4. Power: 37kw 50 hp submersible water pump
5. Voltage: 380v 440v460v 480v 600v 660v water submersible pump
6. Material: Cast iron/SS304/SS316/SS316L/duplex stainless/SS904L



​Deep well electric submersible pump image:

37kw 50hp 63m3/h 80m3/h 140m3/h Water Electric Submersible Pump 0

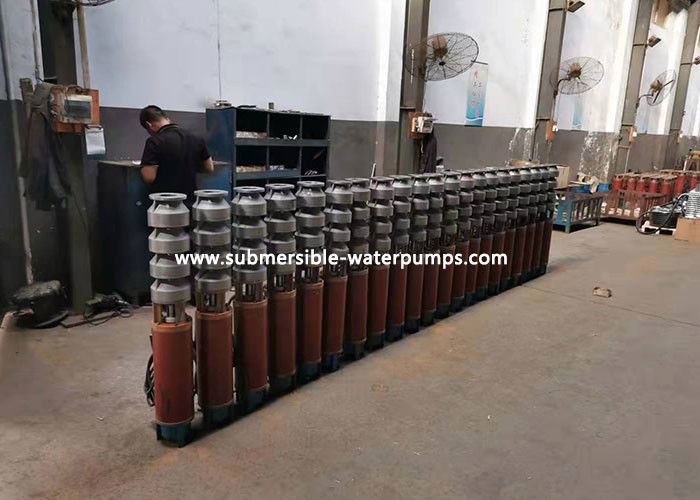

Submersible water pump assembled image:

Submersible motor testing finished, all electric water submersible pump head is assembled one by one, then we will testing submersible pump efficiency next. Order 378kw 50hp submersible water pump from APK, 1 step 1 QC rule.

37kw 50hp 63m3/h 80m3/h 140m3/h Water Electric Submersible Pump 1



FAQ:



1. What's MOQ ?



----MOQ is 1 pcs.



2. How to get price for electric water submersible pump?



----Please message your submersible pump requirements if you know according to your local site, so that we could quote price asap.

As you know, we are a pump factory, hundreds of electric water submersible pump models to quote price. Like you order goods in ebay, to know what you want.



----One most important thing to quote price: a name card with your email and Whatsapp, address(to quote shipping cost).



3. What's deliver time of electric submersible pump?



-----Firstly, email your requirements. Then we will know the production time and which port to your country.



Electric submersible pump display:



37kw 50hp 63m3/h 80m3/h 140m3/h Water Electric Submersible Pump 2





Customer Case:



250QJ160-105-75kw deep well electric submersible water pump to Mongolia for clean water supply, the detailed parameter:
1. Fow: 160m3/h
2. Head: 105m
3. Power: 75kw
4. Voltage: 380v/50hz
5. Pieces: 4 sets

37kw 50hp 63m3/h 80m3/h 140m3/h Water Electric Submersible Pump 3
