315KW 250KW 280KW Sewage Cutting Pump Sewage Treatment Plant 6000M3/H
|
Product Details:
|
|
| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | APK |
| Certification: | ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER |
| Model Number: | WQ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | Please feel free to contact us |
| Packaging Details: | Submersible sewage pump is packed with wooden case or 20 inch container. |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8695 pieces per month |
|
Detail Information |
|||
| Flow: | 20m3/h 30m3/h 65m3/h 80m3/h 100m3/h | Head: | 40m 25m 15m 20m |
|---|---|---|---|
| Power: | 7.5 Kw 10hp Sewage Pump | Voltage: | 220v/380v/440v Or Other |
| Frequency: | 3 Phase 50hz/60hz | Material: | Cast Iron/stainless Steel |
| Motor: | Copper Wire | ||
| High Light: | submersible sewage water pump,submersible dirty water pump |
||
Product Description

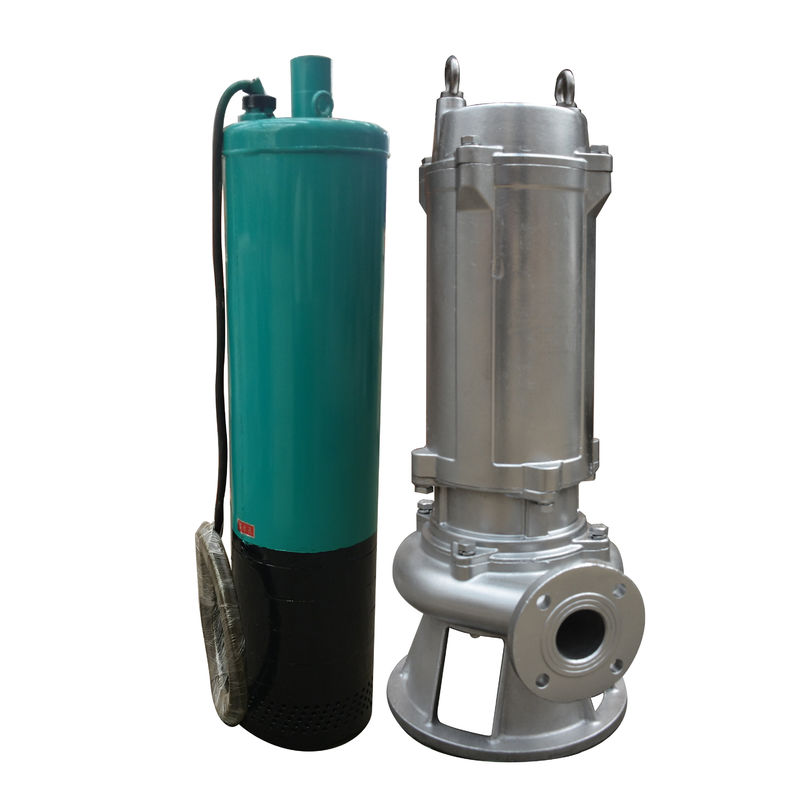

7.5kw 10hp submersible sewage pump is low capacity, low head. Main material is cast iron and stainless steel.
Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.
The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.
WQ submersible sewage pump parameters:
| Model | Outlet diameter (mm) | Flow (m3/h) | Head (m) | Power (kw) | Speed (r/min) |
| WQ50-18-30-3 | 50 | 18 | 30 | 3 | 2900 |
| WQ50-40-15-4 | 50 | 40 | 15 | 4 | 2900 |
| WQ50-25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 |
| WQ50-20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 |
| WQ65-25-15-2.2 | 65 | 25 | 15 | 2.2 | 2900 |
| WQ65-25-30-4 | 65 | 25 | 30 | 4 | 2900 |
| WQ65-30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 |
| WQ80-43-13-3 | 80 | 43 | 13 | 3 | 2900 |
| WQ80-40-15-4 | 80 | 40 | 15 | 4 | 2900 |
| WQ80-65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 |
| WQ100-110-10-5.5 | 100 | 110 | 10 | 5.5 | 1450 |
| WQ100-100-15-7.5 | 100 | 100 | 15 | 7.5 | 1450 |
| WQ100-80-20-7.5 | 100 | 80 | 20 | 7.5 | 1450 |
| WQ100-100-25-11 | 100 | 100 | 25 | 11 | 1450 |
It is one part of submersible sewage pump parameters. If you would like to know more, please feel free to contact us.
We will choose one suitable pump model for you.
