3 Phase SS316L 12 Inch 400m3/H Submersible Water Pumps

Minimum Order Quantity : 1 piece Price : please kindly contact
Packaging Details : Submersible water pump with Shock absorption,moisture-proof package, standard export wooden case Delivery Time : 7-15 working days after payment confirmed
Payment Terms : T/T , Western Union , L/C , D/A , D/P , MoneyGram Supply Ability : 10000 Unit/Units per Month
Place of Origin: Henan, China Brand Name: APK
Certification: CE; ISO Model Number: 12 Inch Submersible Pump

Detail Information

Pump Size: 12 Inch Submersible Pump Flow: 300m3/h 400m3/h Submersible Pump
Head: 17m-123m Power: 25kw-220kw
Frequency: 3 Phase 50hz/60hz Voltage: 380v/400v/420v/440v/660v Or As Per Request
Material: Cast Iron/SS304/SS316/SS316L/duplex Stainless/SS904L Install: Vertical
High Light:

400m3/h Submersible Water Pump

,

12 Inch Submersible Water Pump

,

SS316L Submersible Water Pump

Product Description

Submersible pump is widely used in various kinds of water conservancy facilities such as farm irrigation, sprinkler irrigation with water, industrial and supply and drainage system of civil building, draining water in hills or mountainous area, diversion in low-lying areas, urban and rural industrial and mining enterprises water supply, drainage.



Its motor and water pump assembly into one, with simple structure, convenient installation remove, cover an area small, easy to use and maintain, safe and reliable operation, no water pollute.



300m3/h 400m3/h submersible pump models:
(cast iron or SS304/SS316/SS316L/duplex stainless/SS904L and 380v/440v/460v/480v/600v. If you would like to know more, please contact )

Pump diameter Model Motor Power Flow Head
Inch(") QJ Series kw hp m3/h m
12" 300QJ300-20/1 25 35 279-321 17-23
12" 300QJ300-40/2 55 75 279-321 35-45
12" 300QJ300-60/3 75 100 279-321 51-69
12" 300QJ300-80/4 110 150 279-321 68-92
12" 300QJ400-40/1 75 100 368-432 38-42
12" 300QJ400-80/2 160 220 368-432 76-84
12" 300QJ400-120/3 220 300 368-432 117-123
16" 400QJ400-50/1 90 120 388-416 48-52



300m3/h 400m3/h submersible pump specifications:

1. Diameter: 12 inch submersible pump
2. Flow: 300m3/h 400m3/h submersible pump
3. Head: 17m-123m
4. Power: 25kw-220kw
5. Voltage: 380v/440v/480v/600v/660v
6. Material: Cast iron/stainless steel 304/316/316L/duplex stainless/SS904L

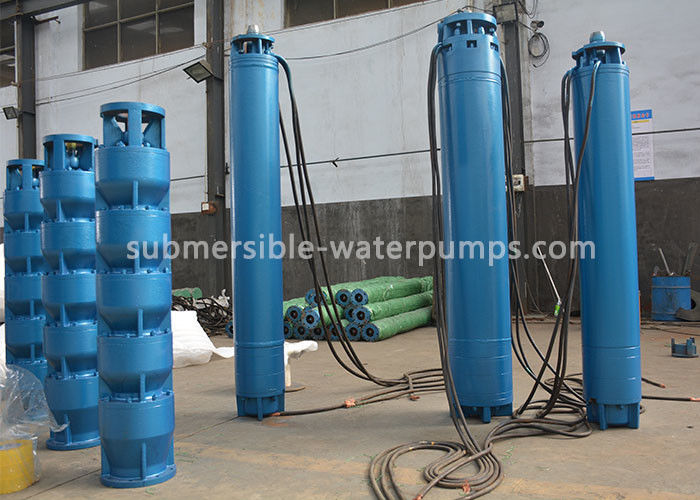

3 Phase SS316L 12 Inch 400m3/H Submersible Water Pumps 0



If you would like to get qotation as soon as possible, please try to best message more specifications about your local site. Video or pictures will be more available. Some details need to be confirmed to choose water submersible pump models as below:



1. Flow rate/capacity: how much water pumping per hour or per liters?

2. Head meters

3. Water: clean water, sewage water, sea water or hot water

4. Installation: vertical or horizontal



The main part material cast iron submersible pump as below:
1. The pump impeller, pump casing coupling part and motor casing is cast iron material.
2. The pump shaft is stainless steel material.
3. The bearing is graphite.
4. The winding is 100% copper with polyethylene insulation layer.
5. The rotor end ring is copper.
6. The stator casing is with 45# steel.
7. The stator is cold rolling silicon steel.

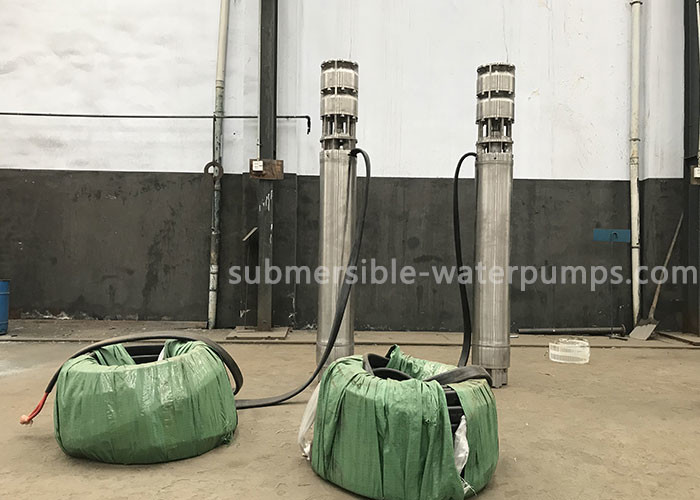

3 Phase SS316L 12 Inch 400m3/H Submersible Water Pumps 1

It is a Youtube video about our factory strength, including pump production lines, quality control, spare parts warehouse to promise deliver time, and package. From raw material to spare parts to quality control to deliver, all is under control. If you would like to inquiry water submersible pump or get quotation, please kindly send inquiry. Whatever you are a distributor, end user, trading company or tender, wecome to inquiry with pump specifications requires.


3 Phase SS316L 12 Inch 400m3/H Submersible Water Pumps 2
