Wastewater 20m3/H 90m 15hp Non Clogging Submersible Pump

Minimum Order Quantity : 1 set Price : Please contact us as below
Packaging Details : Bottom suction submersible pump is packed by export standard wooden case. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram, L/C Supply Ability : 2500 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE Model Number: Bottom Suction Submersible Pump

Detail Information

Flow Rate: 20m3/h Bottom Suction Submersible Pump Head: 90m Bottom Suction Submersible Pump
Power: 11kw 15hp Bottom Suction Submersible Pump Material: Cast Iron/SS304/SS316/SS316L
Install: Vertical Bottom Suction Submersible Pump Warranty: 24 Months
High Light:

Water Non Clogging Submersible Pump

,

15hp Non Clogging Submersible Pump

,

20m3/H Non Clogging Submersible Pump

Product Description



20m3/h 90m 11kw 15hp Vertical Electric Multistage Water Sewage Bottom Suction Submersible Pump



Bottom suction submersible pump overview:



Bottom suction submersible pumps are suitable for pumping sewage water in severe environment, especially for mining, high head meters, multistage vertical sewage water submersible pump type.This series of submersible water pumps are bottom suction type, which can pumping waste water of working place completely. Electric motor is three-phase asynchronous motor. The motor is cover with cooling shiled, so that the motor can work above water to pump water at some time.



We have various bottom suction submersible water pump models. We will choose one most suitable bottom suction submersible pump types according to your working conditions. We are professional with technical department in submersible water pump fields. Also, we have bottom suction submersible water pump accessories, such as mechanical seals, couplings, control panels.



Bottom suction submersible pump models:

Model Flow rate Head Power
WQX series m3/h m kw hp
WQX12.5-100-7.5 12.5 100 7.5 10
WQX12.5-120-9.2 12.5 120 9.2 13
WQX12.5-140-11 12.5 140 11 15
WQX12.5-160-15 12.5 160 15 20
WQX12.5-200-18.5 12.5 200 18.5 25
WQX12.5-300-30 12.5 300 300 40
WQX15-130-11 15 130 11 15
WQX15-170-15 15 170 15 20
WQX15-180-18.5 15 180 18.5 25
WQX20-120-15 20 120 15 20
WQX20-270-45 20 270 45 60
WQX30-80-15 30 80 15 20
WQX30-105-15 30 105 15 20
WQX30-150-22 30 150 22 30
WQX30-220-45 30 220 45 60
WQX40-80-15 40 80 15 20
WQX40-100-22 40 100 22 30
WQX50-60-15 50 60 15 20
WQX50-70-18.5 50 70 18.5 25
WQX50-80-22 50 80 22 30
WQX50-120-30 50 120 30 40
WQX50-140-37 50 140 37 50
WQX80-40-18.5 80 40 18.5 25
WQX80-60-22 80 60 22 30
WQX80-80-30 80 80 30 40
WQX80-100-45 80 100 45 60
WQX100-30-15 100 30 15 20
WQX100-60-30 100 60 30 40
WQX120-60-37 120 60 37 50
WQX150-20-18.5 150 20 18.5 25
WQX150-60-45 150 60 45 60
WQX200-20-22 200 20 22 30
WQX200-30-30 200 30 30 40
WQX200-40-37 200 40 37 50
WQX300-12-22 300 12 22 30
WQX350-20-45 350 20 45 60
WQX400-15-37 400 15 37 50



Bottom suction submersible pump specifications:

1. Type: WQX series bottom suction submersible pump

2. Power: 3kw-220kw

3. Frequency: 3 phase 380v/440v/480v; 50hz/60hz

4. Flow: 12.5m3/h-600m3/h

5. Head: 20m-300m

6. Material: Cast iron or Stainless steel 304 316 316L

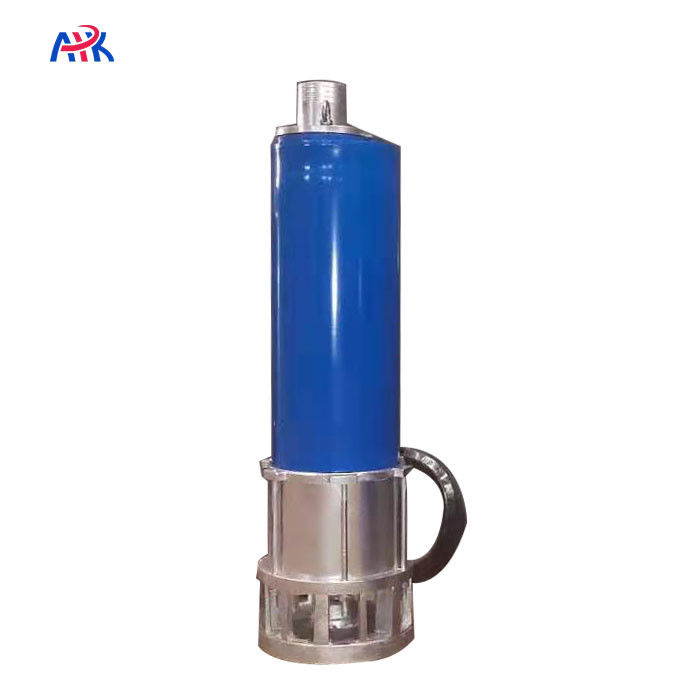

Bottom suction submersible pump image:

Wastewater 20m3/H 90m 15hp Non Clogging Submersible Pump 0

Bottom suction submersible pumps working conditions:

1. Voltage 380V or 440V (allowance error: 5%), 50Hz, three-phase alternating-current supply solid material volume ratio in pumped medium should be below 2%, Maximum pumped medium density is 1.2*103kg/ m3

2. PH value should be 4-12

3. Temperature should be not less than 50℃



Why do our customers order submersible water pump from APK?

1. 3 Complete casting production lines, including clean water submersible pump, sea water submersible pump and sewage water submersible pump

2. Strict quality control system. 1 step 1 QC

3. From submersible pump spare parts to assemble to deliver, all is visualized.

4. 5000 pcs supply ability per month

5. 7*24*365. 7 days, 24 hours per day, 365 days, provide professional submersible pump consulting service for customers anytime and anywhere, choose APK, you will get not just the submersible water pumps, help customer solve problems and expand their business are our always purpose.



Wastewater 20m3/H 90m 15hp Non Clogging Submersible Pump 1
