Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | APK |
| Certification: | CE; ISO; ABS |
| Model Number: | Stainless Steel Submersible Pump |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | please kindly contact |
| Packaging Details: | Stainless steel submersible pump with Shock absorption,moisture-proof package, standard export wooden case |
| Delivery Time: | 7-15 working days after payment confirmed |
| Payment Terms: | T/T , Western Union , L/C |
| Supply Ability: | 5000 Unit/Units per Month |
|
Detail Information |
|||
| Material: | Bronze/SS304/SS316/SS316L/Duplex Stainlss/SS904L | Flow Rate: | 20m3/h-2500m3/h |
|---|---|---|---|
| Head: | 16m-465m | Power: | 7.5kw-300kw/10hp-400hp |
| Frequency: | 3 Phase 50hz/60hz | Voltage: | 380v 400v 440v 460v 480v Submersible Pump |
| Warranty: | 24 Months | ODM OEM: | Accept |
| High Light: | SS304 Submersible Water Pump,Multistage Stainless Steel Submersible Pump,2500m3/h Submersible Pump |
||
Product Description
Stainless steel submersible pump specifications:
Submersible water pump is applied for sea water lifting or pumping salt water, especially seafood factory, shrimp farm, fishing farm, seawater desalination, boat, offshore and son on. Stainless steel submersible pump is the best choice, including bonze submersible pump, stainless steel 316 submersible pump, stainless steel 316l submersible pump, duplex stainless steel submersible pump, and stainless steel 904l submersible pump. However, water submersible pump is pumping drinking water, aisi304 submersible pump will be better, wear corrosive.
1. Flow rate: 20m3/h-2500m3/h
2. Head meters: 16m-465m
3. Motor Power: 7.5kw-300kw; 10hp-400hp
4. Voltage: 380v/420v/440v/460v/480v/600v/660v......
5. Frequency: 3phase 50hz or 60hz
6. Install: vertical or horizontal
Stainless steel submersible pump spare parts materials:
(1). Submersible motor: SS304, SS316, SS316L, duplex stainless steel, and SS904L
(2). Submersible impeller: SS304, SS316, SS316L, duplex stainless steel and SS904L
(3). Screw and nuts: SS316L, duplex stainless steel and SS904L
(4). Pump shaft: 45#steel, 2CR13,3CR13, duplex stainless steel
(5). Bearing: rubber
(6). Pump bowl: SS304, SS316, SS316L, duplex stainless steel, and SS904L
SLAPK have stocked general water submersible pump types or stainless steel spare parts in warehouse workshops in order to provide better and more efficient service to our customers. Therefore, it's our promise to supply our products with favorable price,
fast delivery, excellent quality and best services.
Stainless steel submersible pump models:
Parameters could be customized according to your local site.
| Pump Diameter | Model | Power | Flow | Head | |
| Inch (") | QJ type | kw | hp | m3/h | m |
| 8" | 200QJ20-135/10 | 15 | 20 | 18-22 | 115-156 |
| 8" | 200QJ20-175/13 | 18.5 | 25 | 18-22 | 150-210 |
| 8" | 200QJ20-202/15 | 22 | 30 | 18-22 | 172-232 |
| 8" | 200QJ20-283/21 | 30 | 40 | 18-22 | 240-325 |
| 8" | 200QJ20-338/25 | 37 | 50 | 18-22 | 287-388 |
| 8" | 200QJ25-126/9 | 15 | 20 | 23-27 | 100-145 |
| 8" | 200QJ25-182/13 | 22 | 30 | 23-27 | 150-210 |
| 8" | 200QJ25-294/21 | 37 | 50 | 23-27 | 250-340 |
| 8" | 200QJ32-104/8 | 18.5 | 25 | 29-35 | 84-125 |
| 8" | 200QJ32-144/9 | 22 | 30 | 29-35 | 123-172 |
| 8" | 200QJ32-195/15 | 30 | 40 | 29-35 | 166-225 |
| 8" | 200QJ32-234/18 | 37 | 50 | 29-35 | 190-258 |
| 8" | 200QJ40-78/6 | 15 | 20 | 37-43 | 67-93 |
| 8" | 200QJ40-117/9 | 22 | 30 | 37-43 | 94-140 |
| 8" | 200QJ40-208/16 | 37 | 50 | 37-43 | 177-247 |
| 8" | 200QJ50-78/6 | 18.5 | 25 | 46-54 | 63-93 |
| 8" | 200QJ50-91/7 | 22 | 30 | 46-54 | 73-110 |
| 8" | 200QJ80-88/8 | 30 | 40 | 74-86 | 75-101 |
| 8" | 200QJ100-75/5 | 37 | 50 | 80-120 | 72-77 |
| 10" | 250QJ50-340/17 | 75 | 100 | 46-54 | 315-375 |
| 10" | 250QJ63-100/5 | 30 | 40 | 58-68 | 75-100 |
| 10" | 250QJ125-32/2 | 18.5 | 25 | 116-134 | 27-37 |
| 10" | 250QJ160-105/7 | 75 | 100 | 148-172 | 90-120 |
| 10" | 250QJ160-120/8 | 90 | 120 | 148-172 | 115-125 |
| 10" | 250QJ160-150/10 | 110 | 150 | 148-172 | 144-156 |
| 12" | 300QJ200-20/1 | 18.5 | 25 | 186-214 | 17-23 |
| 12" | 300QJ240-110/5 | 100 | 135 | 223-257 | 95-125 |
| 12" | 300QJ300-80/4 | 110 | 150 | 279-321 | 68-92 |
| 12" | 300QJ300-100/5 | 140 | 190 | 279-321 | 96-104 |
| 12" | 300QJ300-120/6 | 160 | 220 | 279-321 | 115-125 |
| 12" | 300QJ300-140/7 | 185 | 250 | 279-321 | 134-146 |
| 12" | 300QJ300-160/8 | 220 | 300 | 279-321 | 153-167 |
| 14" | 350QJ250-50/2 | 63 | 85 | 233-267 | 47-53 |
| 14" | 350QJ250-100/4 | 125 | 170 | 233-267 | 95-105 |
| 14" | 350QJ320-90/3 | 140 | 190 | 305-335 | 85-95 |
| 16" | 400QJ500-40/1 | 90 | 120 | 460-540 | 38-42 |
| 16" | 400QJ500-80/2 | 185 | 250 | 460-540 | 77-83 |
| 18" | 450QJ1000-16/1 | 90 | 120 | 900-1200 | 44550 |
| 22" | 550QJ1200-18/1 | 110 | 150 | 1100-1400 | 15-22 |
| 24" | 600QJ1000-60/3 | 300 | 400 | 900-1200 | 58-62 |

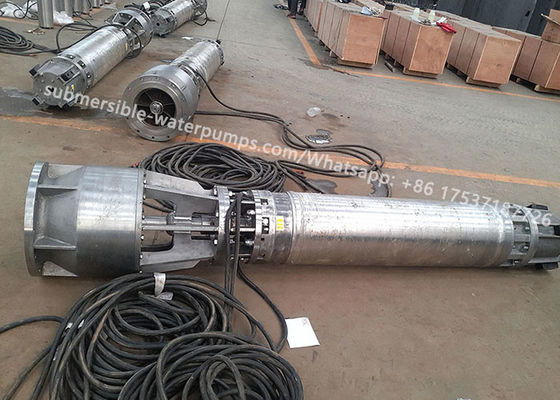

316L submersible pump type with A4-80 nuts and screws, accredited successfully by ABS:
Zhengzhou Shenlong Pump Industry CO.,Ltd have been exported to more than 70 countries and regions, such as Southeast Asia, Europe, Africa, South America and Oceania and so on. It is the leader in the submersible pump industry in domestic, always stressing on quality and credibility. The company has participated in national standards and plays an important role in amending the national standards, such as CE,ISO and ABS.
1. 3 types main casting technique: EPC Process (Expendable pattern casting); Precoated sand casting; Wax precision casting.
2. Fully automated pressing stamping And punching lines with ultimate levels of quality. Production and assembly departments based on German engineering. Be spoke CNC machining department utilizing 3D/2D technology and high precision tools; Professional test stations. R&D department for our continuous drive for perfection of products.
3. We have 36 sole duty quality control staffs. Among processional staffs are put in charge of Rotor dynamic balancing/Impeller static balance /Motor winding withstand voltage test /Hydrostatic pressure test of pressure bearing parts.
