Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase
Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase
Contact Now

Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Submersible sewage pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: WQ

Detail Information
Flow Rate: 5-3500m3/h Head: 5-200m
Material: Cast Iron Or Stainless Steel Voltage: 380v/415v/420v/460v/480v/660v /1140v
Power: 2.2-220kw Install: Vertical
Motor: 100% Copper Wire Warranty: One Year
High Light:

submersible sewage water pump

,

submersible wastewater pump

Product Description

WQ 3 Phase Non Clogging Drainage Waste Dirty Water Submersible Sewage Pump Price



Submersible sewage pump overview:

  1. Type: WQ series sewage pump
  2. Power: 2.2kw-410kw
  3. Voltage: 380v/440v/460v or customized
  4. Frequency: 3 phase 50hz/60hz
  5. Flow: 5-3500m3/h
  6. Head: 5-200m
  7. Material: Cast iron or Stainless steel

Submersible sewage pump applications:

  1. Sewage treatment plant
  2. Municipal engineering project
  3. Domestic sewage discharge
  4. Industrial wastewater discharge
  5. Delivery seawater
  6. Mine operation

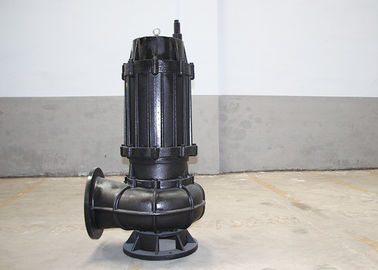

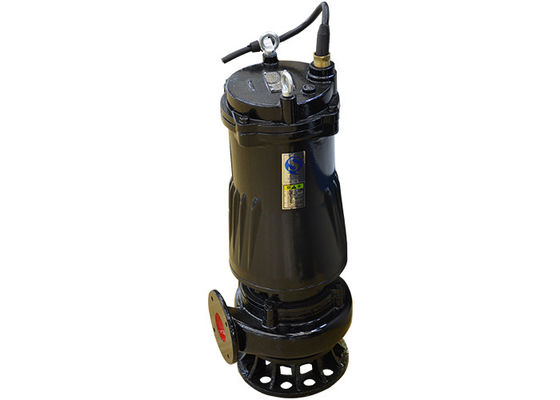

Submersible sewage pump pictures:

Non Clogging Submersible Sewage Pump , Dirty Water Submersible Pump 3 Phase 0

Model

Outlet Diameter

(mm)

Capacity

(m3/h)

Head

(m)

Speed

(r/min)

Power

(kw)
 50WQ15-22-2.2 50 10-20 2.8-6.9 2840 2.2
50WQ25-36-7.5 50 20-40 5.6-11.1 1440 7.5
65WQ30-30-5.5 65 20-45 5.6-12.5 1440 5.5
80WQ50-8-2.2 80 40-75 11.1-20.8 1420 3
80WQ50-25-7.5 80 40-75 11.1-20.8 1440 7.5
80WQ50-40-15 80 40-75 11.1-20.8 2900 15
100WQ80-18-7.5 100 65-120 18.1-33.3 1440 7.5
100WQ80-36-18.5 100 65-120 18.1-33.3 2900 18.5
100WQ80-40-22 100 65-120 18.1-33.3 2900 22
150WQ150-7-5.5 150 100-220 27.8-61.1 1440 5.5
150WQ150-40-30 150 100-200 27.8-55.6 1470 30
150WQ150-45-37 150 100-200 27.8-55.6 1470 37
150WQ100-60-55 150 80-150 22.2-41.7 1470 55
200WQ300-7-11 200 250-400 69.4-111.1 1460 11
200WQ300-25-37 200 250-400 69.4-111.1 980 37
200WQ400-34-55 200 250-500 69.4-138.9 1480 55
200WQ400-40-75 200 250-500 69.4-138.9 1480 75
200WQ400-48-8-90 200 250-500 39.4-138.9 1480 90
250WQ400-7-15 250 300-600 83.3-166.7 1460 15
250WQ500-16-37 250 400-700 111.1-194.4 980 37
250WQ600-28-75 250 500-800 138.9-222.2 1480 75
250WQ600-40-110 250 500-800 138.9-222.2 1480 110
250WQ600-50-132 250 500-800 138.9-222.2 1480 132
300WQ600-6-18.5 300 500-700 138.9-208.3 1470 18.5
300WQ700-19-55 300 550-1000 152.8-277.8 980 55
300WQ1000-35-132 300 800-1400 222.2-388.9 1480 132
350WQ1200-6-30 350 1000-1500 277.8-416.7 730 30
350WQ1100-16-75 350 900-1500 250-416.7 980 75
350WQ1800-46-355 350 1400-2600 388.9-722.2 740 355

If these submersible sewage pump do not meet your demand, please feel free to contact us. We will choose one suitable model for you.



WQ submersible sewage pump using condition:

  1. Based on the impeller center, the underwater depth that the pump was placed shall not exceed 5 m
  2. Temperature of the transport medium not more than 40 centidegree
  3. Transported medium's PH value for 4 ~ 10, and pump shall not carry high corrosive liquid
  4. The transfer medium's solid volume ratio under 20%
  5. The movement viscosity of transport medium for 7×10-7~23×10-6m²/s
  6. The biggest density of transfer medium for 1200 kg/m ³
  7. WQ submersible pump, motor must be dived into the underwater to operate
