160m3/h 300m3/h Submersible Water Pump

Minimum Order Quantity : 1 set Price : Inquiry or E-mail, please
Packaging Details : 160m3/h 300m3/h submersible pump is packed with seaworthy export standard plywood case Delivery Time : Within 7-25 working days upon receipt of payment
Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram Supply Ability : 5000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO,CE, ABS, BV, TUV, SGS Model Number: ELectric Water Submersible Pump

Detail Information

Flow: 160m3/h 300m3/h Head Meter: 15m -160m
Motor Power: 13kw-220kw Submersible Pump Voltage: 380v/400v/440v/460v/480v Or As Per Request
Power Supply: 3 Phase 50hz/60hz Warranty: 24 Months
High Light:

submersible borehole water pump

,

borehole submersible pumps

Product Description

160m3/h 300m3/h 100hp Vertical Multistage Electric Water Deep Well Submersible Pump







160m3/h 300m3/h submersible pump models:

(Note: flow rate, head meters, material, power supply, a suitable submersible pump model according to your requirements)

Model Power Flow range Head range
QJ type kw hp m3/h m
250QJ160-15/1 13 18 148-172 44548
250QJ160-30/2 22 30 148-172 25-35
250QJ160-45/3 30 40 148-172 38-51
250QJ160-60/4 45 60 148-172 52-69
250QJ160-75/5 55 75 148-172 65-86
250QJ160-90/6 63 85 148-172 77-103
250QJ160-105/7 75 100 148-172 90-120
250QJ160-120/8 90 120 148-172 102-138
250QJ160-135/9 100 135 148-172 115-155
250QJ160-150/10 110 150 186-214 128-170
300QJ300-20/1 25 35 279-321 17-23
300QJ300-40/2 55 75 279-321 35-45
300QJ300-60/3 75 100 279-321 51-69
300QJ300-80/4 110 150 279-321 68-92
300QJ300-100/5 140 190 279-321 96-104
300QJ300-120/6 160 220 279-321 115-125
300QJ300-140/7 185 250 279-321 134-146
300QJ300-160/8 220 300 279-321 153-167



160m3h 300m3h submersible pump specifications:



1. Outlet diameter: 5" 6"

2. Flow rate: 160m3/h 300m3/h submersible pump

3. Head rate: 30m 60m 80m 105m 120m 200m submersible pump

4. Motor power: 75kw 100hp submersible pump

5. Power supply: 3phase 380v/400v/440v/460v/480v/600v; 50hz/60hz

6. Material: Cast iron/SS304/SS316/SS316L/duplex stainless steel/SS904L

7. Temperature: 0-90℃

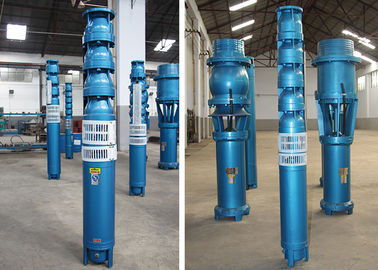

160m3/h 300m3/h Submersible Water  Pump 0

160m3/h 300m3/h Submersible Water  Pump 1



Elerctric submersible pump applications:



1. Farm agricultural irrigation system

2. Pumping sea water, offshore, jack-up, reservoir, lake, salt water, river, mine

3. Pumping clean water

4. Pumping hot water



Working conditions of water submersible pump:



1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

2. Motor must be filled with clean water.

3. Water temperatureshould not higher than 20 ℃.

4. Sand content of the water (by quality) not more than 0.01%.

5. Water PH 6.5~8.5.

6. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.

7. The content of chloridion in water shouldnot be higher than 400mg/l.

8. The water source must provide enough water for the pump to work continuously



Water submersible pump features:



1. Large capacity, high head

2. Motor and pump are integrated, simple structure

3. Easy to install, use, disassemble and maintain

4. Taking little floor space

5. No pollution to water source

6. Continuous operation 2500 hours per year

7. Average life is at least 5 years
