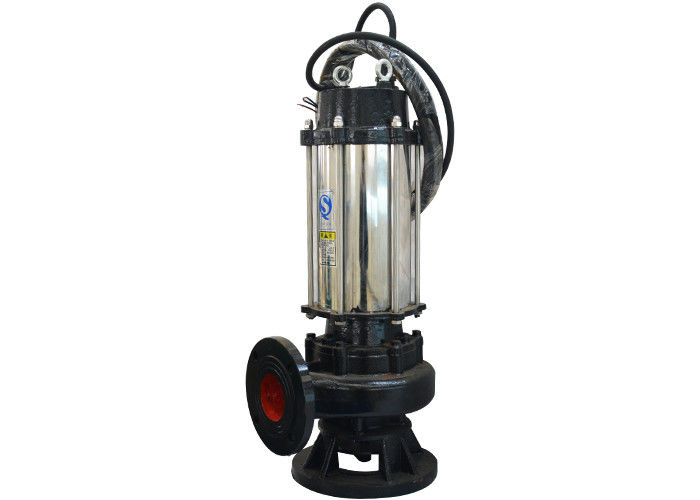

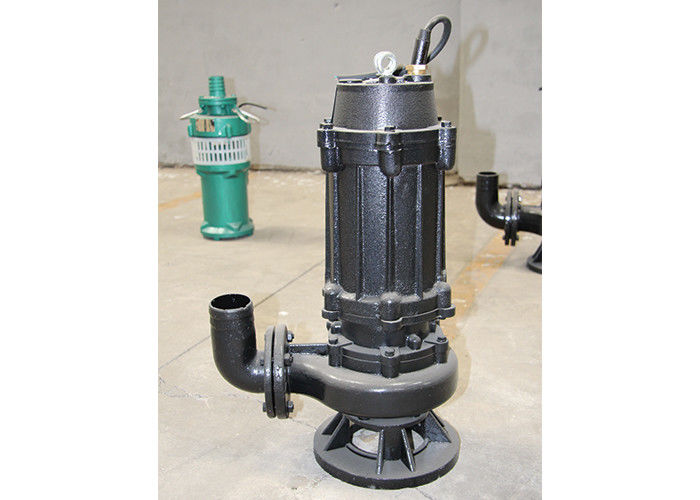

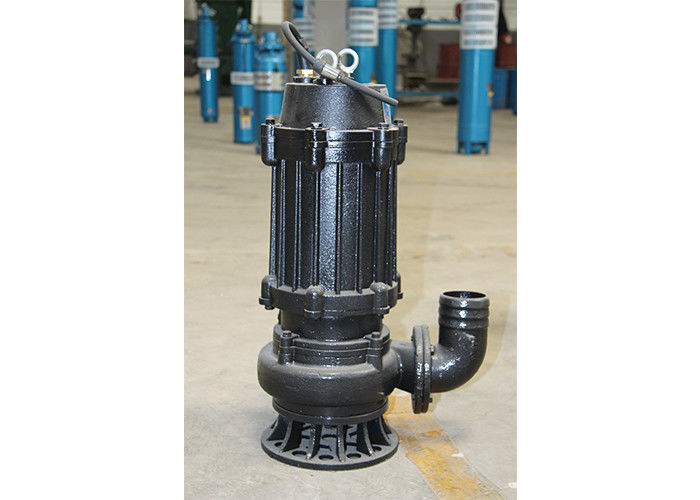

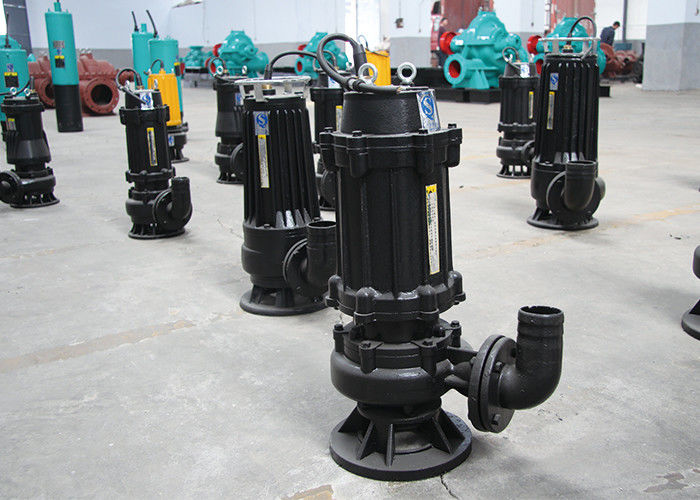

Automatic Mixture Submersible Wastewater Pump 5-300m3/H Sewage Water Pump
  • name
  • name
  • name
  • name

Automatic Mixture Submersible Wastewater Pump 5-300m3/H Sewage Water Pump

MOQ: 1 set
Price: Negotiable
Standard Packaging: Submersible sewage pump is packed by wooden case or as your request.
Delivery Period: Within 2-5 working days upon receipt of payment
Payment Method: T/T, Western Union, MoneyGram, L/C
Supply Capacity: 9863 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Henan China
Brand Name
APK
Certification
ISO;CE,BV; TUV; CCC
Model Number
WQ-JY
Flow Rate:
12.5-100m3/h
Head:
40-200m
Power:
3-63kw
Install:
Vertical
Motor:
100% Copper Wire
Voltage:
380v Or Customized
Material:
Cast Iron Or Customized
Highlight:

submersible sewage water pump

,

submersible dirty water pump

Product Description

WQ-JY Flow 5-300m3/h Waste Dirty Water Automatic Mixture Submersible Sewage Pump



WQ-JY automatic mixture submersible sewage pump overview:

The pump has a stirring impeller except the impeller, it is adopt the automatic device, when the motor shaft spinning, can produce strong mixing force, syir the sewage sediments of the pool to a suspended solids, then drain the sewage water out.

  1. Flow: 5-300m3/h
  2. Head: 5-180m
  3. Voltage: 380v/440v/460v or customized
  4. Frequency: 3 phase 50hz/60hz
  5. Power: 2.2kw-200kw
  6. Caliber: φ25-φ400mm
  7. Temperature: <40℃
  8. Material: Cast iron or Stainless steel
  9. Highly improve the sewage pump ability
  10. On-time completed draiange and clean

WQ-JY submersible sewage pump applications:

This pump has stron passing ability and good cutting performance. It is widely used to deliver sewage water that contains long fiber, plestic bags, cloth straps, ropes, leaves,. It also works well in pumping clear water for irrigation or drainage.



WQ-JY submersible sewage pump overview:

Automatic Mixture Submersible Wastewater Pump 5-300m3/H Sewage Water Pump 0

WQ-JY submersible sewage pump parameters:

Model

Capacity

(m3/h)

Head

(m)

Power

(kw)

Speed

(r/min)
WQ7-15-1.1-JY 7 15 1.1 2900
WQ15-7-1.1-JY 15 7 1.1
WQ10-15-1.5-JY 10 15 1.5
WQ10-22-2.2-JY 10 22 2.2
WQ25-10-2.2-JY 25 10 2.2
WQ50-6-2.2-JY

50

6

2.2
WQ15-25-3-JY 15 25 3
WQ25-20-3-JY 25 20 3
WQ50-10-3-JY 50 10 3
WQ15-32-4-JY 15 32 4
WQ25-25-4-JY 25 25 4
WQ50-13-4-JY 50 13 4
WQ60-10-4-JY 60 10 4
WQ18-40-5.5-JY 18 40 5.5
WQ30-30-5.5-JY 30 30 5.5
WQ40-22-5.5-JY 40 22 5.5
WQ65-15-5.5-JY 65 15 5.5
WQ45-22-7.5-JY 45 22 7.5
WQ100-10-7.5-JY 100 10 7.5
WQ140-7-7.5-JY 140 7 7.5

If these submersible sewage pump do not meet your demand, please feel free to contact us. We will choose one suitable model for you.



WQ-JY submersible sewage pump using condition:

  1. Voltage 380V or 660V (allowance error: 5%), 50Hz, three-phase alternating-current supply
  2. solid material volume ratio in pumped medium should be below 2%, Maximum pumped medium density is 1.2*103kg/ m3
  3. PH value should be 4-12
  4. Temperature should be not less than 50℃
Tags:

submersible sewage water pump,

submersible dirty water pump,

submersible wastewater pump
