ZLB Large Capacity Flood Drainage Water Vertical Axial Flow Propeller Pump

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Axial flow pump is packed with seaworthy export standard plywood case. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 3000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO;CE Model Number: Vertical Axial Flow Pump

Detail Information

Flow Rate: 250m3/h-40000m3/h Head: 2m-11m
Material: Cast Iron/Stainless Steel Voltage: 380v/415v/420v/460v/480v/660v
Power: 5.5kw-1400kw Temperature: 2℃-50℃
Warranty: 24 Months
High Light:

axial flow propeller pumps

,

vertical axial flow pump

Product Description



   The large flow vertical axial flow propeller pump, surface installed, named ZLB in China. Also, we have submerged type if you are in  demand. ZLB Vertical propeller axial flow pump are of rugged, heavy-duty construction designed to operate in a multitude of applications requiring the movement of a high volume of water at a low discharge pressure. They are used extensively for pumping water from sources including lakes, cooling ponds, tanks, rivers and oceans.
   An ZLB corrosion resistant axial flow pump is a common type of pump that essentially consists of a propeller in a pipe. The propeller can be driven directly by a sealed motor in the pipe or mounted to the pipe from the outside or by a right-angle drive shaft that pierces the pipe.

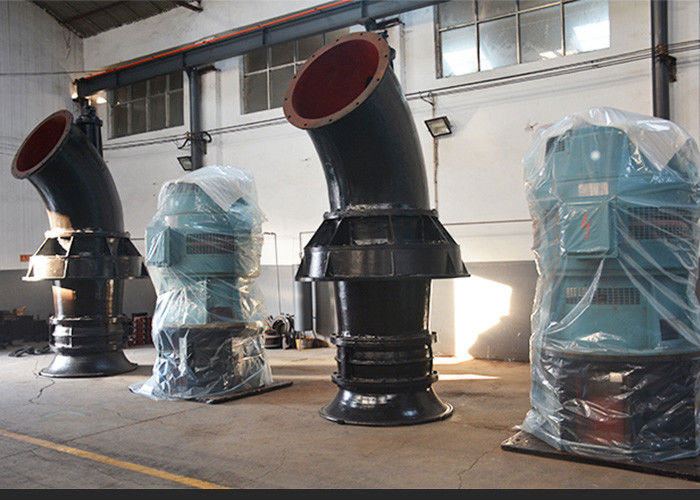

Vertical axial flow water pump with high voltage motor:

ZLB Large Capacity Flood Drainage Water Vertical Axial Flow Propeller Pump 0



Vertical axial flow pump specifications:

Flow Head Shaft Power Impeller Dia
l/s m kw mm
280
300
325
6
5.15
3.75
21
19.9
17.1
296
305
355
380
6
4.43
3.20
24
18.8
15.6
300
340
354
393
8.2
7.45
5.5
34.9
33.1
28.6
300
583
600
696
6.82
6.43
4.12
48.79
46.58
36.51
450
430
506
545
3.63
4.56
1.94
20.6
16
13.3
450
529
762
866
8.48
5.44
3.13
59.4
47.8
35.9
450
851
805
745
2.14
2.75
3.35
22.2
26.6
30.8
450
698
750
794
6.3
5.23
4.1
49.85
47.16
41.98
450
479
559
625
8.08
6.30
4.68
50.93
43.16
36.53
450

Applications for ZLB vertical propeller axial flow pump include raw water intake, dewatering, storm water removal, and flood control. These applications are found in a variety of markets including: urban and rural municipal water, government, industrial and irrigation and more.

Material of flow passage components:
The ZLB vertical propeller axial flow pump could be customized with different material,main material configuration followed :

1. Case&Cover: HT250; Stainless steel; QT500

2. Impeller: HT250; Stainless steel; QT500

3. Wearing ring: HT250; Stainless steel; QT500

4. Shaft&Sleeve: C.S 45, 40Cr, SS420

5. Column pipe: C.S.Q235



Construction Structure:

1. Installing mode:

Single foundation: pump and motor are installed in the same foundation with outlet above or under foundation.

Double foundation: pump and motor is separately installed in itself foundation with outlet between the two foundations.



2. Pump shaft is made of high grade carbon steel and is supplorted by two rubber of  plastic bearings with water as a lubricant.

3. In contact with rubber or plastic bearing is the shaft sleeve which is coated with a film of chromium in order to upgrade the anti-corrosive and anti-wearing effect.

4. The capacity and head of the pump can be changed by changing speed or adjusting vane angle according to performance table, if necessary.
