3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation
3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation 3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation 3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation 3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation
Contact Now

3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Deep well submersible pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 8578 pieces per month
Place of Origin: Henan, China Brand Name: APK
Certification: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER Model Number: QJ

Detail Information
Pump Size: 8 10 12 Inch Well Submersible Pump Flow: 18-540m3/h Submersible Pump
Head: 14-388m Power: 20hp 30hp 40hp 50hp 100hp Submersible Water Pump
Frequency: 3 Phase 60hz/50hz Voltage: 380v 420v 660v Or As Per Request
Material: Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904 Quality Warranty: One Year Or More
Install: Vertical
Highlight:

deep well submersible water pump

,

submersible deep well pumps

Product Description

3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation







Submersible well water pump can be divided into two kinds, one is shallow well pump, the other is deep well submersible pump. Shallow well pump, as name suggests, used for shallow well. It is a kind of centrifugal pump with long transmission shaft, its structure is simple and high efficient. Compared with shallow one, deep well submersible pump is more broadly used.
Submersible well water pump is an important water supply device. It is used in residential water supply, agricultural irrigation, industrial cooling, sea water lift, geothermal heating and ship load.
It is consists of four main parts. They are water pump, submersible electric motor, water pipe and control switch.

Submersible well pump overview:

  1. Pump diameter: 8 10 12 Inch well submersible pump
  2. Flow rate: 18-540m3/h submersible pump
  3. Head rate: 14-388m
  4. Motor Power: 20hp 30hp 40hp 50hp 100hp submersible water pump
  5. Voltage:380v/420v/440v/660v /1140v or as per request
  6. Frequency: 3 phase 50hz/60hz
  7. Material: Cast iron/ss304/ss316/ss316L/Duplex stainless/SS904 (pump sets or casting parts)
  8. Install: Vertical

Submersible well pump applications:

  1. Groundwater pumping
  2. Irrigation system
  3. Water supply system
  4. Clean water supply
  5. Fountain project
  6. Water drawing system in hills and mountain areas
  7. Drawing water from wells
  8. Water supply and drainage system for industrial or civil buildings
  9. Water supply and drainage system system for mines and factories in cities or villages
  10. Sea water, salt water

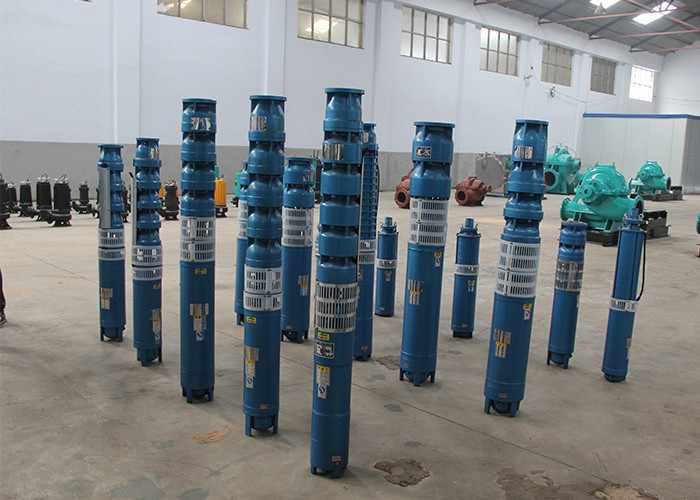

 3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation 0



3 Phase 60hz / 50hz Deep Well Submersible Water Pump 14 - 388m Head Vertical Installation 1


20hp 30hp 40hp 50hp 100hp Submersible well pump parameters:

Model Power   Flow Range Head Range Outlet Size
QJ Series kw hp m3/h m Inch (")
200QJ20-135/10 15 20 18-22 115-156 2"
200QJ20-202/15 22 30 18-22 172-232 2"
200QJ20-283/21 30 40 18-22 240-325 2"
200QJ20-338/25 37 50 18-22 287-388 2"
200QJ25-280/20 37 50 23-27 250-340 2"
200QJ32-96/6 15 20 29-35 77-115 3"
200QJ32-144/9 22 30 29-35 123-172 3"
200QJ40-78/6 15 20 37-43 67-93 3"
200QJ63-70/5 22 30 58-68 60-82 3"
200QJ63-112/8 30 40 58-68 93-131 3"
200QJ80-44/4 15 20 74-86 37-50 4"
200QJ80-66/6 22 30 74-86 56-75 4"
200QJ80-88/8 30 40 74-86 84-113 4"
200QJ100-30/2 15 20 80-120 26-32 4"
200QJ100-75/5 37 50 80-120 72-77 4"
250QJ50-60/3 15 20 46-54 51-69 3"
250QJ50-140/7 30 40 46-54 119-161 3"
250QJ50-160/8 37 50 46-54 136-184 3"
250QJ50-340/17 75 100 46-54 315-375 3"
250QJ80-60/3 22 30 74-86 51-69 4"
250QJ80-200/10 75 100 74-86 170-230 4"
250QJ125-64/4 37 50 116-134 54-73 5"
250QJ125-128/8 75 100 116-134 109-147 5"
250QJ140-45/3 30 40 130-145 40-52 5"
250QJ140-120/8 75 100 130-150 104-137 5"
250QJ160-30/2 22 30 148-172 25-35 5"
250QJ160-105/7 75 100 148-172 90-120 5"
300QJ200-40/2 37 50 186-214 35-45 6"
300QJ200-80/4 75 100 186-214 68-92 6"
300QJ300-60/3 75 100 279-321 51-69 6"
300QJ400-40/1 75 100 368-432 38-42 8"
300QJ500-15/1 30 40 460-540 14-16 8'
300QJ500-30/2 75 100 460-540 29-32 8'


It is one part of 20hp 30hp 40hp 50hp 100hp submersible well pump parameters. If you would like to know more, please feel

free to send an inquiry.
