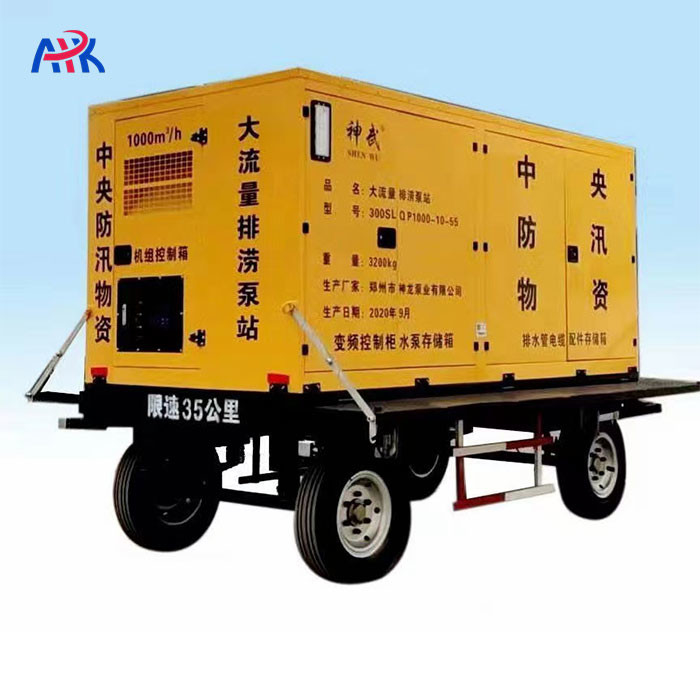

High Flow Portable Submersible Pump

MOQ: 1 piece
Price: Please feel free to contact us
Standard Packaging: Water submersible pump is packed with seaworthy export standard plywood case.
Delivery Period: 7-25 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
APK
Certification
CE;ISO
Model Number
Portable Submersible Pump
Flow:
100m3/h-1800m3/h
Head:
6m-45m
Power:
7.5kw-75kw
Voltage:
380v/400v/440v/460v/480v Or As Per Request
Frequency:
3phase 50hz/60hz
Warranty:
24 Months
Highlight:

high flow submersible water pump

,

electric submersible pump

Product Description



High flow portable submersible pump is an new ultra light submersible pump type, which replaced the old submersible pump for flood control.

High Flow Portable Submersible Pump 0

  High performance permanent magnet variable frequency motor, especially designed and manufactured for portable large flow submersible electric pump. The motor adopts high-efficiency synchronous motor with adjustable speed. The motor not only has high efficiency, simple structure, reliable operation, but also has small volume and light weight.



  With the accumulation of technology in recent years, the non clogging impeller designed by our company has the characteristics of high efficiency and energy saving, reasonable streamline and strong trafficability, and solves the blockage of some particle pumps pumped by ordinary pumps.



 Portable submersible pump is coaxial, the mechanism is compact and the running vibration is small. The shaft seal adopts independent mechanical seal, and the bearing adopts rolling bearing, which can bear all axial and radial forces, and is completely isolated from the medium seal.

High Flow Portable Submersible Pump 1



High flow portable submersible pump models:

Model Outlet Diameter Flow Head Power
SLQP type mm m3/h m kw hp
100SLQP-100-8-7.5 100 100 8 7.5 10
100SLQP-100-12-11 100 100 12 11 15
125SLQP-150-8-11 125 150 8 11 15
125SLQP-150-12-15 125 150 12 15 20
150SLQP-150-35-18.5 150 150 35 18.5 25
150SLQP-20-15-22 150 200 15 22 30
150SLQP-220-45-45 150 220 45 45 60
200SLQP-300-10-15 200 300 10 15 20
200SLQP-350-16-22 200 350 16 22 30
200SLQP-400-8-18.5 200 400 9 18.5 25
200SLQP-400-10-22 200 400 10 22 30
200SLQP-600-9-25 200 600 9 25 35
250SLQP-700-8-30 250 700 8 30 40
250SLQP-750-8-37 250 750 8 37 50
300SLQP-1000-10-55 300 1000 10 55 75



Install Case:

High Flow Portable Submersible Pump 2

High flow portable submersible pump applications

1. Flood control and rescue

2. Drought prevention irrigation and drainage

3. Mine rescue

4. Emergency drainage and rescue

5. Municipal engineering, emergency water transfer of rivers and reservoirs

6. Fire emergency drainage

7. Emergency pumping and drainage.

8. Portable submersible pump can be used alone in flood control, rescue, disaster relief site, or built in the vehicle (including mobile rescue vehicle), becoming a complete set of special equipment for flood control and rescue
