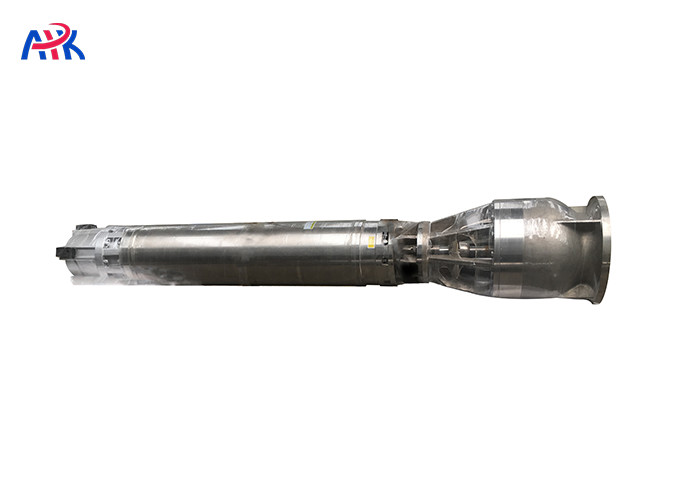

SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H

Minimum Order Quantity : 1 piece Price : please kindly contact
Packaging Details : submersible water pump with Shock absorption,moisture-proof package, standard export wooden case Delivery Time : 7-15 working days after payment confirmed
Payment Terms : T/T , Western Union , L/C , D/A , D/P , MoneyGram Supply Ability : 10000 Unit/Units per Month
Place of Origin: Henan, China Brand Name: APK
Certification: CE; ISO9001; Five stars after-sale service Model Number: water submersible pump

Detail Information

Power: 100hp 120hp 150hp 220hp 300hp 400hp Submersible Water Pump Outlet Size: 8" 10" 12" 16"
Diameter: 18 22 24 Inch Submersible Water Pump Capacity: 800m3/h 1000m3/h 1200m3/h Submersible Pump
Head: 12m-430m Frequency: AC 3 Phase 50hz/60hz
Voltage: 380v/440v/480v/600v/660v Or As Per Request Material: SS304/SS316/SS316L/duplex Stainless/SS904L
Warranty: 24 Months
Highlight:

deep well submersible water pump

,

submersible deep well pumps

Product Description

High Capacity 800m3/h 1000m3/h 1200m3/h SS316 Seawater Stainless Steel Submersible Pump For Seafood FactoryPumps



Submersible pump performance range:

  • Flow range: 800m3/h 1000m3/h 1200m3/h submersible pump
  • Head range:12-62m
  • Voltage: 380v/440v/480v/600v or as per request
  • Material: stainless steel 304/316/316L/duplex stainless/ss904L

Submersible pump features

  • Large capacity, low head, big power
  • Whole pump is casting with sophisticated stainless steel SS316
  • Corrosion resistance
  • Easy to install,use,disassemble and maintain

SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 0

SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 1

SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 2

SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 3



water submersible pump parameters:

(cast iron or SS304/SS316/SS316L/duplex stainless/super stainless steel/SS904L and 380v/440v/480v/

600v/660v/1140v. If you would like to know more, please kindly contact us)

Diameter Model Power Flow Range Head Range
Inch (") QJH Series kw hp m3/h m
18" 450QJH800-16/1 75 100 750-850 12-20
18" 450QJH1000-16/1 90 120 900-1200 12-20
22" 550QJH1200-18/1 110 150 1100-1400 15-22
24" 600QJH800-25/1 110 150 750-850 23-27
24" 600QJH800-50/2 220 300 750-850 48-52
24" 600QJH800-75/3 300 400 750-850 73-77
24" 600QJH1000-20/1 110 150 900-1200 18-22
24" 600QJH1000-40/2 220 300 900-1200 38-42
24" 600QJH1000-60/3 300 400 900-1200 58-62



Applications:
1. Ground water pumping
2. Irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well



140kw 300m3/h 100m SS316 submersible water pump


SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 4



APK pump factory not only manufacture water pumps, but also manufacture match pump accessories, including pump control cabinet, frequency converter(ABB or as per request), cable, valve.

SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 5

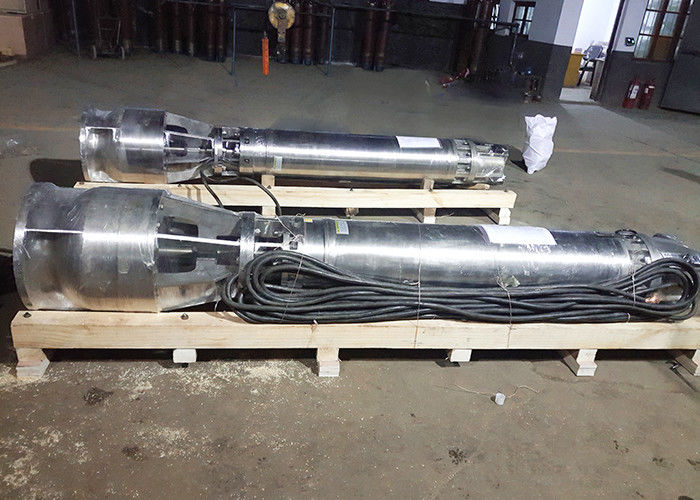

Package: the well pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption, moisture-proof package.


SS316 Seawater Stainless Steel Submersible Pump High Capacity 800m3/H 1000m3/H 1200m3/H 6



FAQ:



1. What's your MOQ?



one piece



2. What's your deliver method?



Sea freight, express, airplane





3. What's your payment?



T/T
