315KW 250KW 280KW Sewage Cutting Pump Sewage Treatment Plant 6000M3/H
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Please contact us as below |
|---|---|---|---|
| Packaging Details : | Sewage submersible pump is packed by wooden case. | Delivery Time : | 3-5 working days after payment confirmation |
| Payment Terms : | T/T, Western Union, L/C | Supply Ability : | 2530 sets per month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO; CE | Model Number: | Sewage Submersible Pump |
|
Detail Information |
|||
| Head Meters: | 50m Sewage Submersible Pump | Flow Rate: | 120m3/h Sewage Submersible Pump |
|---|---|---|---|
| Material: | Cast Iron Submersible Pump | Voltage: | 3ph 380v 50hz Submersible Pump |
| Power: | 75hp 55kw Submersible Pump | Warranty: | 24 Months |
| High Light: | Cast iron Submersible Sewage Pump,Dewatering Submersible Sewage Pump,Municipal Works Submersible Sewage Pump |
||

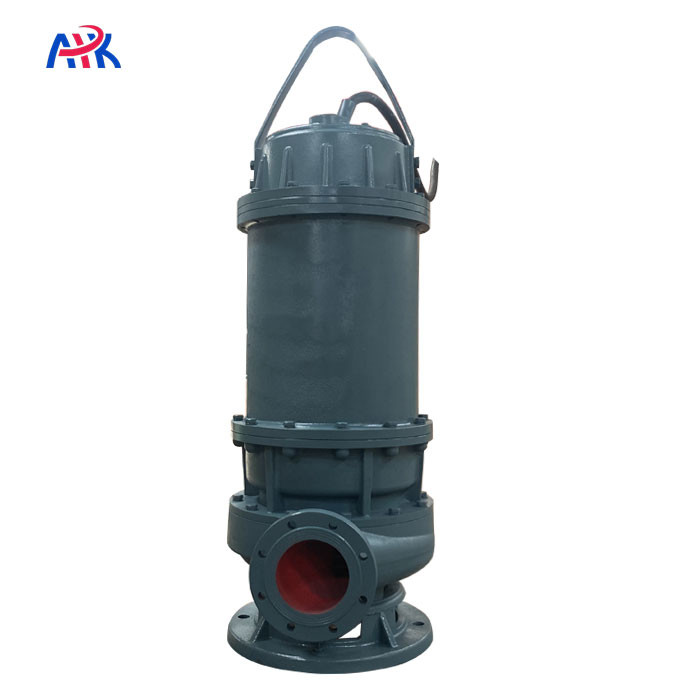

Product Description
China 30m3/h 40m3/h 160m3/h Electric Vertical Waste Dewatering Dirty Water Sewage Submersible Pump
Submersible sewage pump overview:
| Sewage submersible pump applications |
1. municipal works, industrial buildings,hotels,hospitals,civil air defense,mines. 2. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics. |
| Submersible sewage pump types |
1. 304/316/316L stainless steel type 2. high temperature resistent type 3. cutting impeller type. |
| Sewage Submersible Pump Working Conditions |
1. Proper medium: liquids with chemical property similar to pure water should be non-corrosive. 2. Solid size should be no larger than 30% of the pump suction diameter. Fiber length should not be over 2.5 times of the pump suction diameter. 3. When the medium density is more than 1.05, the motor power should be increased accordingly to prevent the motor from overload operation. |
Sewage submersible pump specifications:
1. Flow rate: 10m3/h-2500m3/h
2. Head meters: 6m-200m
3. power: 2.2kw-220kw
4. Voltage: 380v 420v 440v or as per request
5. Material: cast iron, SS304, SS316, SS316L
Sewage submersible pump models:
| Outlet diameter | Model | Flow | Head | Power | |
| mm | WQ type | m3/h | m | kw | hp |
| 50 | 50WQ10-15-1.5 | 10 | 15 | 1.5 | 2 |
| 50 | 50WQ15-25-3 | 15 | 25 | 3 | 4 |
| 65 | 65WQ25-10-2.2 | 25 | 10 | 2.2 | 3 |
| 65 | 65WQ30-30-5.5 | 30 | 30 | 5.5 | 7 |
| 80 | 80WQ50-10-3 | 50 | 10 | 3 | 4 |
| 80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 |
| 100 | 100WQ60-10-4 | 60 | 10 | 4 | 5 |
| 100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 |
| 100 | 100WQ100-15-7.5 | 100 | 15 | 7.5 | 10 |
| 150 | 150WQ145-9-7.5 | 145 | 9 | 7.5 | 10 |
| 100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 |
| 150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 |
| 200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 |
| 100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 |
| 150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 |
| 200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 |
| 100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 |
| 150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 |
| 200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 |
| 250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 |
| 100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 |
| 150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 |
| 200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 |
| 250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 |
| 150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 |
| 200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 |
| 250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 |
| 300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 |
| 150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 |
| 200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 |
| 250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 |
| 350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 |
120m3/h 50m 55kw 75kw submersible sewage pump with stainless steel reamers image, ss304 impeller
Sewage submersible pump installation instructions
1. Check whether pump fasteners are loosen and whether the pump body runner is blocked by foreign matters before installation to avoid damage of impeller and pump body in running.
2. Supporters for the outlet pipe should be installed separately so that the weight will not be added to the pump so as to prevent it from deformation. The pump base for both movable and fixed installation must be leveled by a level. 2. After the base is ready, install the pump on the base and then use a level to check horizontal and vertical situation between the pump and motor shaft. Use the iron shim to change the height of the base if the pump is out of level. Then grout the base and anchor bolt holes by pouring the concrete into the grout hole.
3. The levelness of the coupling device should be calibrated by a level when coupling installation is adopted. Horizontal level tolerance should not exceed 0.1mm/m. Use the measure gage to calibrate parallelism of two coupling rods to ensure the parallelism tolerance will not exceed 0.2mm/m.
4. Tighten the anchor bolt to make sure there is no looseness between the anchor bolt and concrete in case of bad influence on pump performance when starting.
5. For easy maintenance and safe use, install a regulating valve on the outlet pipe and a pressure gauge near the outlet to guarantee the normal operation within the rated performance range, which lengthens the lifetime of pumps. Rotate the impeller from the suction side after installation. Disassemble the pump and find out the reasons if there is friction or stuck pump.
6. The pump installation can be divided into three types, movable type, fixed type and coupling type.

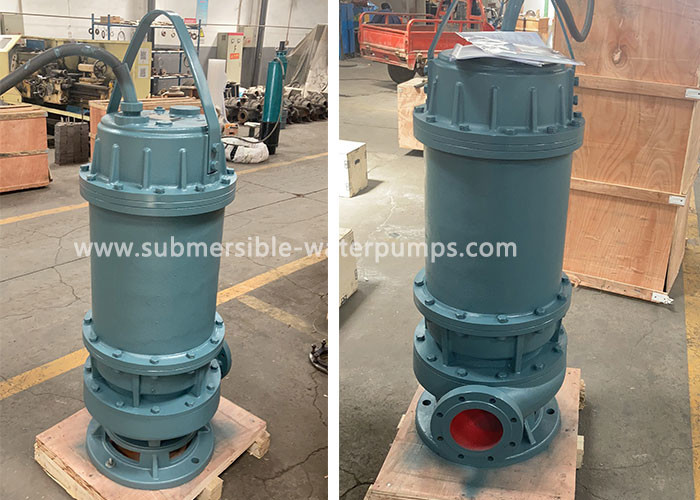

Submersible water pump factory showing:
APK is a professional ODM OEM electric sewage submersible pump manufacturer in China since 1996, got CE, ABS and ISO. Whether you are a trading company, distributor, end users, project planning or for a tender, we have professional sale team and technical team to service.
