Stainless Steel 304 Submersible Sewage Pump For Municipal Urban Water Supply
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
Minimum Order Quantity : | 1 set | Price : | Please contact us as below |
---|---|---|---|
Packaging Details : | Bottom suction submersible pump is packed by export standard wooden case. | Delivery Time : | Within 2-5 working days upon receipt of payment |
Payment Terms : | T/T, Western Union, MoneyGram, L/C | Supply Ability : | 2500 sets per month |
Place of Origin: | China | Brand Name: | APK |
---|---|---|---|
Certification: | ISO; CE | Model Number: | Bottom Suction Submersible Pump |
Detail Information |
|||
Flow Rate: | 50m3/h Bottom Suction Submersible Pump | Head: | 70m Bottom Suction Submersible Pump |
---|---|---|---|
Power: | 18.5kw 25hp Bottom Suction Submersible Pump | Voltage: | 380v/440v Bottom Suction Submersible Pump |
Applications: | Dirty Water | Warranty: | 24 Months |
Highlight: | 70m Electric Submersible Pump,50m3/H Electric Submersible Pump,Dirty Water Electric Submersible Pump |
Product Description
Vertical 50m3/h 70m 25hp Multistage Waste Water Electric Bottom Suction Submersible Pumps
Bottom suction submersible pump is assembled with pump and 3 phase electric submersible motor, submerged in water fully. We will choose one most suitable bottom suction submersible pump types according to cutomers' working conditions. Standard export submersible pump cables is 8m, if clients would like to order more, please tell before making formal quotation.
Why will we choose WQX series bottom suction submersible pump type?
1. More than 50m head meters. Normal non clogging water submersible sewage pump head meter range is 6m-45m. If one customer want sewage water submersible pump head meters more than 50m, we will choose multistage high head submersible pump with bottom suction type.
2. Pumping sewage water from mine with solid. Firstly, we will choose bottom suction submersible pump because of special working conditions. We will change other water sewage submersible pump type when our customers have other special requirements.
Bottom suction submersible pump models:
Model | Flow rate | Head | Power | |
WQX series | m3/h | m | kw | hp |
WQX12.5-100-7.5 | 12.5 | 100 | 7.5 | 10 |
WQX12.5-120-9.2 | 12.5 | 120 | 9.2 | 13 |
WQX12.5-140-11 | 12.5 | 140 | 11 | 15 |
WQX12.5-160-15 | 12.5 | 160 | 15 | 20 |
WQX12.5-200-18.5 | 12.5 | 200 | 18.5 | 25 |
WQX12.5-300-30 | 12.5 | 300 | 300 | 40 |
WQX15-130-11 | 15 | 130 | 11 | 15 |
WQX15-170-15 | 15 | 170 | 15 | 20 |
WQX15-180-18.5 | 15 | 180 | 18.5 | 25 |
WQX20-120-15 | 20 | 120 | 15 | 20 |
WQX20-270-45 | 20 | 270 | 45 | 60 |
WQX30-80-15 | 30 | 80 | 15 | 20 |
WQX30-105-15 | 30 | 105 | 15 | 20 |
WQX30-150-22 | 30 | 150 | 22 | 30 |
WQX30-220-45 | 30 | 220 | 45 | 60 |
WQX40-80-15 | 40 | 80 | 15 | 20 |
WQX40-100-22 | 40 | 100 | 22 | 30 |
WQX50-60-15 | 50 | 60 | 15 | 20 |
WQX50-70-18.5 | 50 | 70 | 18.5 | 25 |
WQX50-80-22 | 50 | 80 | 22 | 30 |
WQX50-120-30 | 50 | 120 | 30 | 40 |
WQX50-140-37 | 50 | 140 | 37 | 50 |
WQX80-40-18.5 | 80 | 40 | 18.5 | 25 |
WQX80-60-22 | 80 | 60 | 22 | 30 |
WQX80-80-30 | 80 | 80 | 30 | 40 |
WQX80-100-45 | 80 | 100 | 45 | 60 |
WQX100-30-15 | 100 | 30 | 15 | 20 |
WQX100-60-30 | 100 | 60 | 30 | 40 |
WQX120-60-37 | 120 | 60 | 37 | 50 |
WQX150-20-18.5 | 150 | 20 | 18.5 | 25 |
WQX150-60-45 | 150 | 60 | 45 | 60 |
WQX200-20-22 | 200 | 20 | 22 | 30 |
WQX200-30-30 | 200 | 30 | 30 | 40 |
WQX200-40-37 | 200 | 40 | 37 | 50 |
WQX300-12-22 | 300 | 12 | 22 | 30 |
WQX350-20-45 | 350 | 20 | 45 | 60 |
WQX400-15-37 | 400 | 15 | 37 | 50 |
Bottom suction submersible pump specifications:
1. Type: bottom suction submersible pump
2. Power: 3kw-220kw bottom suction submersible pump
3. Frequency: 3 phase 380v/440v/480v; 50hz or 60hz bottom suction submersible pump
4. Flow: 12.5m3/h-600m3/h bottom suction submersible pump
5. Head: 20m-400m bottom suction submersible pump
6. Material: Cast iron or Stainless steel 304 316 316L bottom suction submersible pump
7. Speed: 1450rpm, 2900rpm, 3450rpm

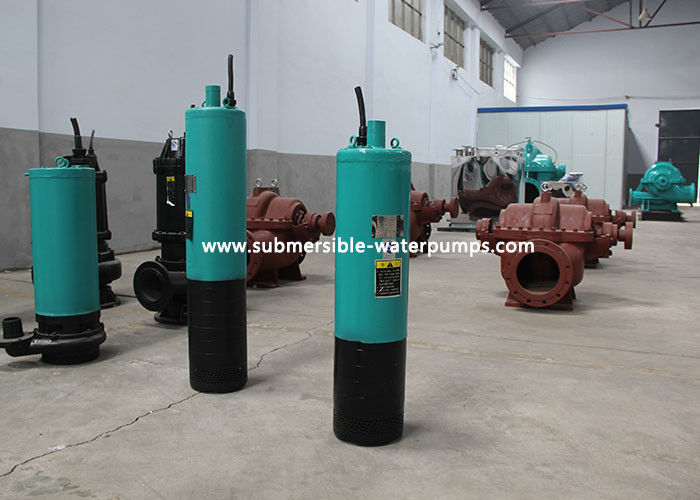

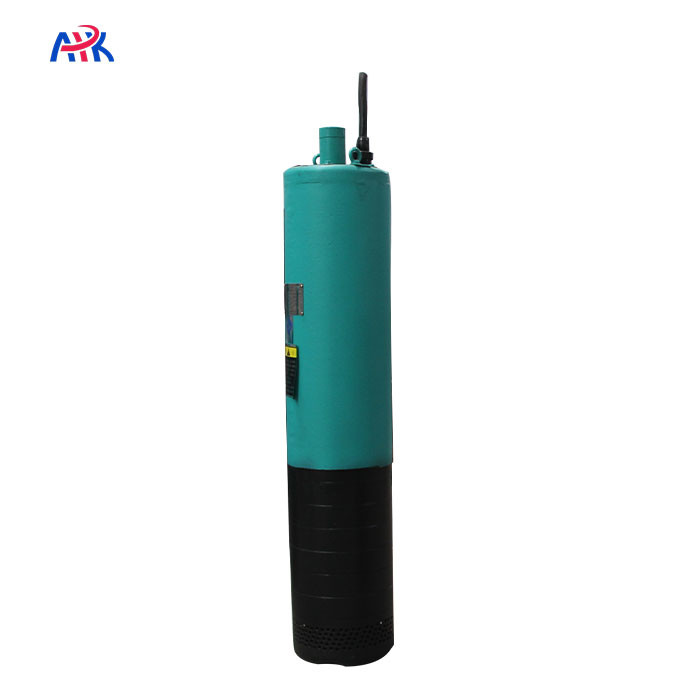

Bottom suction submersible pump image:
FAQ:
Q1: Are you a trading company or manufacturer?
A: We are International Trade Department in our factory. The factory is in charge of production, we are in charge of exportation. In order to provide more professional service to more customers.
Q2: How long is the delivery?
A: It depends on your quantity, usually 5-7 days per submersible pump set. If you need the products in stock. we can deliver it more quickly.
Q3: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples.
Q4: What are your quality warranty and after-sales service?
A: We have a strict quality managements system, we can ensure to clients each submersible water pump one hundred pervent is qualified before it goes out of the workshop. And we offer a 24 months warranty for our products.
Why do our customers order submersible water pump from APK?
1. 3 Complete casting production lines, including clean water submersible pump, sea water submersible pump and sewage water submersible pump
2. Strict quality control system. 1 step 1 QC
3. From submersible pump spare parts to assemble to deliver, all is visualized.
4. 5000 pcs supply ability per month
5. 7*24*365. 7 days, 24 hours per day, 365 days, provide professional submersible pump consulting service for customers anytime and anywhere, choose APK, you will get not just the submersible water pumps, help customer solve problems and expand their business are our always purpose.
