45KW Borehole Well Pump For Stainless Steel Drainage System
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 | Price : | Contact us |
|---|---|---|---|
| Packaging Details : | Pompa submersible is packed with seaworthy export standard plywood case | Delivery Time : | 7-25 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 5000 sets per month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | CE;ISO;ABS | Model Number: | Marine Submersible Pump |
|
Detail Information |
|||
| Flow Rate: | 20m3/h-200m3/h | Head Meters: | 40m-338m |
|---|---|---|---|
| Voltage: | 380v/400v/440v/460v/480v Or As Per Request | Frequency: | 3phase 50hz/60hz |
| Power Supply: | AC Electric Motor/Diesel Engine Generator | Material: | Cast Iron/Bronze/Stainless Steel |
| Install: | Vertical | Warranty: | 24 Months |
| High Light: | 20m3/H Fish Marine Submersible Pump,37Kw Fish Marine Submersible Pump,AISI316L Marine Submersible Pump |
||
Product Description

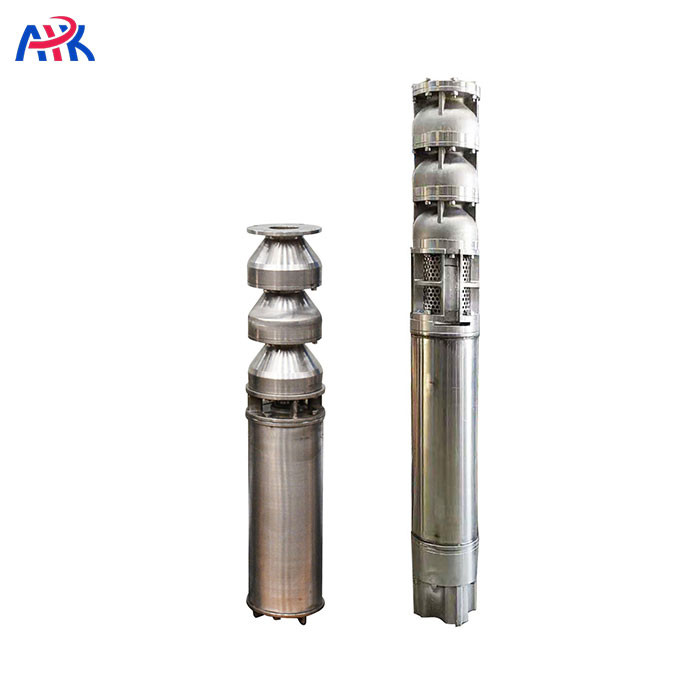

37 kw 63m3/h 100m3/h Fish Sea Water Marine Stainless Steel Submersible Pump for Boat
Stainless steel sea water marine submersible pump is driven by electricity power, will be widely applied in boat, sea water lifting, salt water, offshore, jockey, desalination or clean water. Stainless steel sea water submersible electric pump materials we have Brone, AISI304, AISI316, AISI316L, duplex stainless steel and stainless steel 904L, corrosive resistant strongly. Stainless steel sea water submersible electric pump from APK exported all over the world, and getting well feedback.
37 kw Submersible Pump Models:
We will choose one suitable submersible pump model if you have any special pump requirements.
| Model | Power | Flow range | Head range | |
| QJ type | kw | hp | m3/h | m |
| 200QJ20-297/22 | 37 | 50 | 20 | 297 |
| 200QJ20-338/25 | 37 | 50 | 20 | 338 |
| 200QJ25-266/19 | 37 | 50 | 25 | 266 |
| 200QJ25-308/22 | 37 | 50 | 25 | 308 |
| 200QJ32-208/13 | 37 | 50 | 32 | 208 |
| 200QJ32-240/15 | 37 | 50 | 32 | 240 |
| 200QJ40-182/14 | 37 | 50 | 40 | 182 |
| 200QJ40-208/16 | 37 | 50 | 40 | 208 |
| 200QJ63-126/9 | 37 | 50 | 63 | 126 |
| 200QJ100-75/5 | 37 | 50 | 100 | 75 |
| 250QJ50-160/8 | 37 | 50 | 50 | 160 |
| 250QJ63-120/6 | 37 | 50 | 63 | 120 |
| 250QJ80-100/5 | 37 | 50 | 80 | 100 |
| 250QJ140-60/4 | 37 | 50 | 140 | 60 |
| 300QJ200-40/2 | 37 | 50 | 200 | 40 |
The stainless steel submersible pump main part material is as below:
(1). Submersible motor: SS304, SS316, SS316L, duplex stainless steel, and SS904L
(2). Submersible impeller: SS304, SS316, SS316L, duplex stainless steel and SS904L
(3). Screw and nuts: SS316, SS316L, duplex stainless steel and SS904L
(4). Pump shaft: 45#steel, 2CR13, duplex stainless steel
(5). Bearing: rubber
(6). Pump bowl: SS304, SS316, SS316L, duplex stainless steel, and SS904L
What will you do when you get a electric water submersible pump?
1. Checking the power cable, no broken.
2. Checking the drain hole at the bottom of the water pump. If it is loose, tighten it.
3. Turning the impeller by wrench, confirming it can be turned smoothly.
4. Fulling the motor with clean drinking water
5. Tightening the screws of the water injection hole and exhausting hole on the upper part of the motor
Submersible water pump accessories:
We also offer submersible pump with control panels, frequency inverter(ABB or as per request) or cables If you are in demand.
Why ordering submersible water pumps from APK?
Quality Standard: APK tested EACH submersible water pumps set before delivery. 36 quality-control staffs is in charge of production lines every day. We have acquired CE; ISO14001; ISO9001 and ABS, stressing on quality and credibility always.
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
Cutomer Cases:
Win-win cooperation is the foundation of our business. We listen to all our customers' requirements and provide best solutions. Best quality, fast delivery, good after sale service are our core values. And, we are looking partners all over the world. Welcome to be our agents if you are interested.
FAQ
Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes we have, kindly contact with us for more details.
Q2:Can you make customized products and customized packing?
A: Yes we can, OEM and ODM are acceptable. We are focusing on customer service.
Q3: How could I confirm the quality?
A: Before we start cooperation, it's welcomed that you get a sample of stainless steel sea water submersible electric pump for testing.
Q4: How to ship my order ? Is it safe?
A: By sea, LCL or FCL is available. The good package could ensure the safety. We will be responsible to any product damage caused on delivery.
Q5:Do you have a guarantee of your product quality?
A: One year guarantee. If the damage is caused by product quality problem, we offer replacement or maintenance service in free of charge.
