45KW Borehole Well Pump For Stainless Steel Drainage System
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 | Price : | Contact us |
|---|---|---|---|
| Packaging Details : | Stainless steel submersible pump is packed with seaworthy export standard plywood case | Delivery Time : | 7-25 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 5000 sets per month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | CE;ISO;ABS | Model Number: | Stainless Steel Submersible Pump |
|
Detail Information |
|||
| Flow Rate: | 20m3/h-1300m3/h | Head Meters: | 16m-465m |
|---|---|---|---|
| Voltage: | 380v/400v/440v/460v/480v Or As Per Request | Material: | Bronze/SS304/SS316/SS316L/Duplex Stainless/SS904L |
| Install: | Vertical | Warranty: | 24 Months |
| High Light: | SS316 Impeller Submersible Pump,20hp Impeller Submersible Pump,20m3/H Stainless Steel Submersible Pump |
||
Product Description

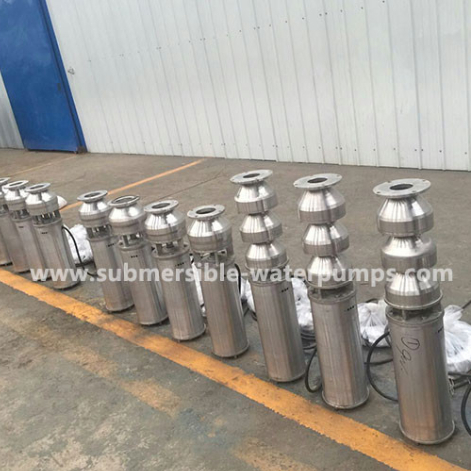

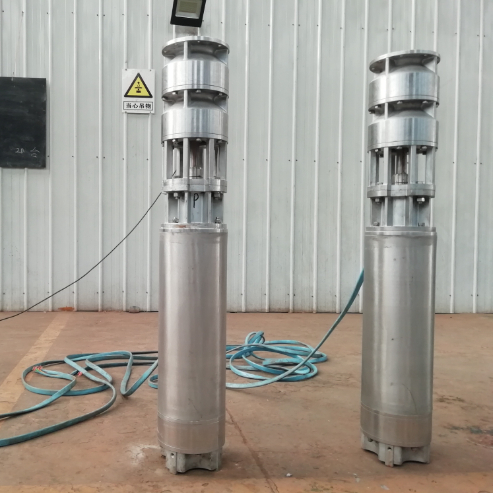

300m3/h 100 hp Resistant Sea Water Stainless Steel Impeller Submersible Pump
Electric seawater submersible pump is casting stainless steel production line, more corrosive resistant than stamping stainless steel, and longer service life. Mainly for pumping drinking water or sea water lift. If the submersible pump for water with stronger corrosive, we have stainless steel 316, 316L, duplex stainless steel and 904L.
We supply seawater electric submersible pump with best quality and competitive price. Our products are well exported to Europe, Africa, Asia, South America, covering more than 70 countries. We are expecting to become your long term partner.
Stainless Steel Submersible Pump Models:
We will choose one suitable stainless steel submersible pump model if you have any special pump requirements.
| Model | Power | Flow rate | Head meters | |
| QJH type | kw | hp | m3/h | m |
| 200QJH20-135/10 | 15 | 20 | 20 | 135 |
| 200QJH20-175/13 | 18.5 | 25 | 20 | 175 |
| 200QJH20-202/15 | 22 | 30 | 20 | 202 |
| 200QJH20-283/21 | 30 | 40 | 20 | 283 |
| 200QJH20-338/25 | 37 | 50 | 20 | 338 |
| 200QJH25-182/13 | 22 | 30 | 25 | 182 |
| 200QJH25-294/21 | 37 | 50 | 25 | 294 |
| 200QJH32-144/9 | 22 | 30 | 32 | 144 |
| 200QJH32-234/18 | 37 | 50 | 32 | 234 |
| 200QJH40-78/6 | 15 | 20 | 40 | 78 |
| 200QJH50-91/7 | 22 | 30 | 50 | 91 |
| 200QJH63-112/8 | 30 | 40 | 63 | 112 |
| 200QJH80-44/4 | 15 | 20 | 80 | 44 |
| 200QJH80-88/8 | 30 | 40 | 80 | 88 |
| 200QJH100-75/5 | 37 | 50 | 100 | 75 |
| 250QJH50-80/4 | 18.5 | 25 | 50 | 80 |
| 250QJH50-340/17 | 75 | 100 | 50 | 340 |
| 250QJH63-60/3 | 18.5 | 25 | 63 | 60 |
| 250QJH63-100/5 | 30 | 40 | 63 | 100 |
| 250QJH63-260/13 | 75 | 100 | 63 | 260 |
| 250QJH125-32/2 | 18.5 | 25 | 125 | 32 |
| 250QJH125-128/8 | 75 | 100 | 125 | 128 |
| 250QJH160-105/7 | 75 | 100 | 160 | 105 |
| 300QJH200-20/1 | 18.5 | 25 | 200 | 20 |
| 300QJH240-22/1 | 22 | 30 | 240 | 22 |
| 300QJH300-20/1 | 25 | 35 | 300 | 20 |
| 300QJH300-40/2 | 55 | 75 | 300 | 40 |
| 300QJH300-60/3 | 75 | 100 | 300 | 60 |
| 300QJH300-80/4 | 110 | 150 | 300 | 80 |
| 300QJH300-100/5 | 140 | 190 | 300 | 100 |
| 300QJH300-120/6 | 160 | 220 | 300 | 120 |
| 300QJH300-140/7 | 185 | 250 | 300 | 140 |
| 300QJH300-160/8 | 220 | 300 | 300 | 160 |
| 350QJH320-40/2 | 63 | 85 | 320 | 40 |
| 350QJH320-90/3 | 140 | 190 | 320 | 90 |
| 350QJH320-120/4 | 185 | 250 | 320 | 120 |
| 400QJH400-50/1 | 90 | 120 | 400 | 50 |
| 450QJH500-80/2 | 185 | 250 | 500 | 80 |
| 450QJH800-16/1 | 75 | 100 | 800 | 16 |
| 450QJH1000-16/1 | 90 | 120 | 1000 | 16 |
| 500QJH640-56/2 | 185 | 250 | 640 | 56 |
| 550QJH1200-18/1 | 110 | 150 | 1200 | 18 |
| 600QJH800-50/2 | 220 | 300 | 800 | 50 |
| 600QJH800-75/3 | 300 | 400 | 800 | 75 |
| 600QJH1000-20/1 | 110 | 150 | 1000 | 20 |
| 600QJH1000-40/2 | 220 | 300 | 1000 | 40 |
| 600QJH1000-60/3 | 300 | 400 | 1000 | 60 |
The stainless steel submersible pump main part material is as below:
(1). Submersible motor: SS304, SS316, SS316L, duplex stainless steel, and SS904L
(2). Submersible impeller: SS304, SS316, SS316L, duplex stainless steel and SS904L
(3). Screw and nuts: SS316, SS316L, duplex stainless steel and SS904L
(4). Pump shaft: 45#steel, 2CR13, duplex stainless steel
(5). Bearing: rubber
(6). Pump bowl: SS304, SS316, SS316L, duplex stainless steel, and SS904L
Submersible water pump accessories:
We also offer submersible pump with control panels, frequency inverter(ABB or as per request) or cables If you are in demand.
Why ordering submersible water pumps from APK?
Quality Standard: APK tested EACH submersible water pumps set before delivery. 36 quality-control staffs is in charge of production lines every day. We have acquired CE; ISO14001; ISO9001 and ABS, stressing on quality and credibility always.
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
Cutomer Cases:
Win-win cooperation is the foundation of our business. We listen to all our customers' requirements and provide best solutions. Best quality, fast delivery, good after sale service are our core values. And, we are looking partners all over the world. Welcome to be our agents if you are interested.
Customers Installed in Singapore:
The stainless steel submersible pump is for sea water lifting in boat. It's SS316L 300m3/h 70m 100 hp submersible pump models, one of our main submersible pump types with upper standard quality and best price.
FAQ
Q1: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes we have, kindly contact with us for more details.
Q2:Can you make customized products and customized packing?
A: Yes we can, OEM and ODM are acceptable. We are focusing on customer service.
Q3: How could I confirm the quality?
A: Before we start cooperation, it's welcomed that you get a sample of stainless steel sea water submersible electric pump for testing.
Q4: How to ship my order ? Is it safe?
A: By sea, LCL or FCL is available. The good package could ensure the safety. We will be responsible to any product damage caused on delivery.
Q5:Do you have a guarantee of your product quality?
A: One year guarantee. If the damage is caused by product quality problem, we offer replacement or maintenance service in free of charge.
