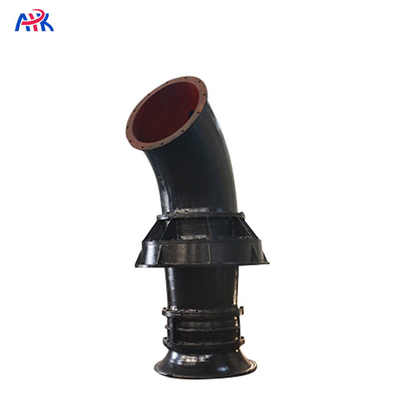

Large Capacity Head 5m Mixed Flow Water Pump Construction Drainage

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Mixed flow water pump is packed with seaworthy export standard plywood case. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 3000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO;CE Model Number: Mixed Flow Water Pump

Detail Information

Flow Rate: 105l/s-926l/s Head: 2m-10m
Power: 7.5kw-75kw; 10hp-100hp Voltage: 380v/415v/420v/460v/480v/660v
Material: Cast Iron/Stainless Steel Temperature: 2℃-50℃
Warranty: 24 Months ODM OEM: Accept
High Light:

5m Head Axial Flow Pump

,

10hp Drainage Axial Flow Pump

,

75kw Axial Flow Pump

Product Description



   The large flow vertical axial flow propeller pump, surface installed, named ZLB in China. Also, we have submerged type if you are in  demand. ZLB series pump are single-stage,vertical axial flow pump,with the liquid flowing in axial direction.The pumps are used to transfer clean water or other liquid with similar physical and chemical properties to those of water. The highest temperature of the transferred liquid can be 50. The ZL pumps have large capacity and low head, which is widely used in agriculture irrigation, civil water supply and drainage, water circulation in industrial power station, dock water level control and other conservancy projects.



Mixed flow water pump for drainage:



Mixed flow pump specifications:

Flow Head Shaft Power Impeller Dia
l/s m kw mm
280
300
325
6
5.15
3.75
21
19.9
17.1
296
305
355
380
6
4.43
3.20
24
18.8
15.6
300
340
354
393
8.2
7.45
5.5
34.9
33.1
28.6
300
583
600
696
6.82
6.43
4.12
48.79
46.58
36.51
450
430
506
545
3.63
4.56
1.94
20.6
16
13.3
450
529
762
866
8.48
5.44
3.13
59.4
47.8
35.9
450
851
805
745
2.14
2.75
3.35
22.2
26.6
30.8
450
698
750
794
6.3
5.23
4.1
49.85
47.16
41.98
450
479
559
625
8.08
6.30
4.68
50.93
43.16
36.53
450

Mixed flow water pump features:

1. Optimized elbow passage of better hydraulic performance.

2. Adjustable impeller of high efficiency and wide high efficiency zone.

3. Low pump speed design conforms to the technological requirements of salting out and low temperature crystallization.

4. Cost saving butt welding technology to satisfy requirements of both transmission strength and anti-corrosion.

5. This product is adopted in 95% combined soda process in China. And there are plenty of real sales achievements from flow rate 300 m3/h to 8000 m3/h.

6. Special design to adapt to different applications.For example,increasing the pressure of system and increasing the liquid level,forced circulation purpose.

Mixed flow water pump applications:

1. Agriculture irrigation

2. Water conservancy

3. Water supply

4. Drainage of civil engineering

5. Farmlands

6. Pollution treatment as well as used in salt factories, raise

7. Power station

8. Docks for water lifting and falling

9. Metallurgy and chemical industry.



Mixed flow water pump structure:

1. ZLB series is a typical vertical axial flow pump of vertical installation which takes small room on floor.

2. Pump impeller end is immersed in the fluid which enables direct start without filling water or vacuum pumping.

3. Simple structure,convenient maintenance.

4. Direct coupled transmission or gear box transmission.

5. Dynamic sealing+packing for shaft sealing

Large Capacity Head 5m Mixed Flow Water Pump Construction Drainage 0
