100 hp 160m3/H Vertical Multistage Stainless Steel Water Mine Well Submersible Pump

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Water submersible pump is packed in wooden box (EXPORT standard, more than 8mm thickness) according to the pumps' frame Delivery Time : 7-15 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE; ISO; ABS Model Number: Submersible Pompa

Detail Information

Flow: 160m3/h Submersible Pump Head: 6m Submersible Pump
Power: 75kw 100 Hp Submersible Pump Voltage: 380v/440v/600v Or As Per Request
Material: Stainless Steel 304 ODM OEM: Accept
Highlight:

100hp Mine Well Submersible Pump

,

160m3/h Mine Well Submersible Pump

,

SS304 Well Submersible Pump

Product Description



100 hp 160m3/h 6m 75kw Stamping Stainless Steel 304 Water Mine Well Submersible Pompa



100 hp submersible pumps models:

(Notice: We will choose one suitable submersible pumps type according to your local site. Inquiry, please)

Pump Diameter Model Power Flow range Head range Outlet diameter
Inch(") QJ type kw hp m3/h m Inch(")
10" 250QJ50-340/17 75 100 50 340 3"
10" 250QJ63-260/13 75 100 63 260 3"
10" 250QJ80-200/10 75 100 80 200 4"
10" 250QJ100-162/9 75 100 100 162 4"
10" 250QJ125-128/8 75 100 125 128 5"
10" 250QJ140-120/8 75 100 140 120 5"
10" 250QJ160-105/7 75 100 160 105 5"
12" 300QJ200-80/4 75 100 200 80 6"
12" 300QJ240-66/3 75 100 240 66 6"
12" 300QJ300-60/3 75 100 300 60 6"
16" 450QJ800-16/1 75 100 800 16 12"



Customer Case:

1. Model: 10SP160-6-75KW

2. 160m3/h 122m water submersible pump

3. Power: 75kw 100hp

4. Voltage: 380v/50Hz, 3 phase;

5. 2900rpm speed.

6. Stamping SS304 material.

100 hp 160m3/H Vertical Multistage Stainless Steel Water Mine Well Submersible Pump 0



The pump used for mine well pumping clean water. But the well is new, so the pump is clean well in early days. The water is dirty when the start working, but few days ago, the water is clean, and the pump working good now.

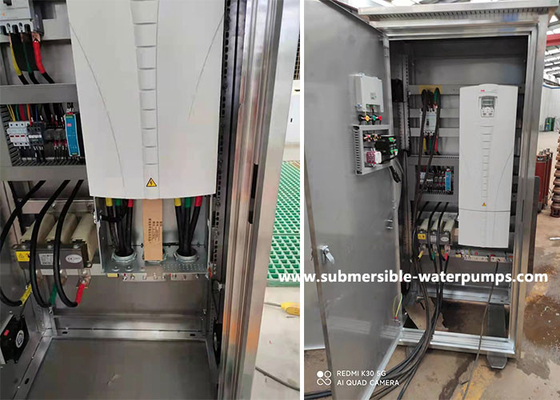

The pump is installed about 70 m depth in well. Match VFD control cabinet. The weather is very hot when the installation. So the control cabinet need to cool after the pump working many hours, otherwise the control cabinet will be auto stop. For protect pump and control cabinet.

100 hp 160m3/H Vertical Multistage Stainless Steel Water Mine Well Submersible Pump 1

And the pump is BSPT screw thread connect. We can also provide flange connect. The connect type by customer’s require. Different country have different connect standard, we also provide custom-made by the customer’s require.



100 hp 160m3/H Vertical Multistage Stainless Steel Water Mine Well Submersible Pump 2



The power supply is diesel engine generating set. 1 set 150kw diesel set match 1 pump. For the provide enough power, advise the diesel match more large. The control cabinet have the port connect the diesel engine generating set.



Note:

1. When the flow too small than the rate flow, please check that whether the pump is reversal.

2. Advise install the flow gauge on the pipe, control flow about the rate flow. If the flow too large than the rate flow, the pump easy overcurrent. The pump will be burn if the pump overcurrent long time.



Factory Strength for Zhengzhou Shenlong Pump Industry CO.,Ltd:

1. Factory direct price

2. Professional knowledge and attentive service

3. Strict quality inspection and timely delivery

4. Highly value every order, no matter how small it is.

5. Offer confidentiality agreement "business secret contract"



  Win-win cooperation is the foundation of our business. We listen to our customers' requirements and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values. We are looking partners all over the world.



100 hp 160m3/H Vertical Multistage Stainless Steel Water Mine Well Submersible Pump 3



FAQ

Q:How to customize pumps and mechanical seals ?

A:Customers could send us application data or drawings , we will select suitable pump and seal .

Q:How long is warranty?

A:About 12 months.



Q:How long is production lead time?

A:Depends on quantity, the normal small amount production is about 10 days.



Q:What’s type of shipping?
A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way



Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,
such as EXW, FOB, CIF.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.

Q:Who is in charge of after-sales? A:We have professional after sales service team, we will follow up the client's comments and suggest them good solutions,solve client's problems and keeping the clients profit.
