SS304 SS316 High Pressure Jockey Inline Vertical Multistage Booster Water Pump

Minimum Order Quantity : 1 piece Price : E-mail or send an inquiry
Packaging Details : Vertical multistage water pump is packed in wooden box (EXPORT standard, more than 8mm thickness) according to the pumps' frame Delivery Time : 7-15 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE; ISO Model Number: Vertical Multistage Water Pump

Detail Information

Flow: 65m3/h Head: 4 Bar
Power: 18.5kw 25hp Pump Set Material: Stainless Steel 316
Quality Warranty: 24 Months ODM OEM: Acceptable
High Light:

Inline Multistage Booster Water Pump

,

Vertical Multistage Booster Water Pump

,

SS304 Multistage Booster Water Pump

Product Description





Stainless Steel  Seamless RO Centrifugal Vertical Multistage Water Pump Manufacturer



Stainless Steel Vertical Multistage Pump Overview:
 Non self-priming type vertical multistage pump, the motor is directly connected with the pump through shaft couplings, impeller guide vane is made of stamping stainless steel plate or precision casting stainless steel, smooth surface, hydraulic flow loss is small, and easily for cleaning, is very favorable for conveying pure medium. Pump inlet and outlet in a straight line(can be equipped with IEC or NEMA motor).


Stainless Steel Vertical Multistage Pump Operating Conditions
1. Thin, clean, non inflammable and explosive liquid not containing solids or fiber.
2. The liquid temperature: Normal temperature type - 15 º C to 70 º C hot water type to + 120 º C
3. Environmental temperature: Highest + 40 º C
4. Height: Highest 1000m


Stainless Steel Vertical Multistage Pump Motor
1. Motor is fully enclosed, air-cooled type 2 pole standard motors.
2. Protection grade: IP55
3. Insulation grade: F
4. Standard voltage: 1pH 220-230/240V
5. 3pH 200-220/346-380V
6. 3pH 220-240/380-415V
7. 3pH 380-415V



Vertical multistage centrifugal water pump specifications:

(material, head meters, flow rate, power supply, all could be customized.)

Inlet/Outlet diameter Type Grade Flow rate Head Power
mm CDLF series / m3/h m kw hp
150 150CDL160-20 2 113.4
160
194.4
46 30 40
40
34
4 92 55 75
80
68
7 161 90 120
140
119
9 207 110 150
108
153
125 125CDL100-20 3 75.6
100
126
69 30 40
60
51
5 115 45 60
100
85
6 138 55 75
120
102
100 100CDL100-20 2 75.6
100
126
46 18.5 25
40
34
5 115 45 60
100
85
7 161 75 100
140
119
10 230 75 100
200
170
100 100CDL72-14 2 50.4
72
86.4
32 11 15
28
24
3 48 15 20
42
36
4 64 18.5 25
56
48
6 96 30 40
84
72
80 80CDL54-14 2 37.8
54
64.8
32 7.5 10
28
25
3 48 11 15
42
37.5
5 80 18.5 25
70
62.5
10 160 37 50
140
125
80 80CDL36-12 6 25.2
36
43.2
81 11 15
72
63
7 94.5 15 20
84
73.5
8 108 15 20
96
84
9 121.5 18.5 25
108
94.5
80 80CDL36-12 2 25.2
36
43.2
27 4 5
24
21
3 40.5 5.5 7
36
31.5
4 54 7.5 10
48
42
5 67.5 11 15
60
52.5
65 65CDL24-12 2 16.8
24
28.8
27 3 4
24
20
3 40.5 4 5
36
30
4 54 5.5 7
48
40
5 67.5 7.5 10
60
50
6 81 7.5 10
72
60
7 94.5 11 15
84
70
8 108 11 15
96
80
9 121.5 15 20
108
90
10 135 15 20
120
100
11 148.5 18.5 25
132
110
50 50CDL18-15 2 12.6
18
21.6
36 3 4
30
25
3 54 4 5
45
37.5
4 72 5.5 7
60
50
5 90 7.5 10
75
62.5
8 144 11 15
120
100
50 50CDL12-15 2 8.4 36 2.2 3
30
25
3 54 3 4
45
37.5
4 72 4 5
60
50
5 90 5.5 7
75
62.5
8 144 7.5 10
120
100
10 180 11 15
150
125
40 40CDL6-12 3 4.2 41 1.5 2
36
30.5
4 54 2.2 3
48
40.6
6 82 3 4
72
61
9 123 4 5
108
91
11 150 5.5 7
132
112
15 205 7.5 10
180
152.5

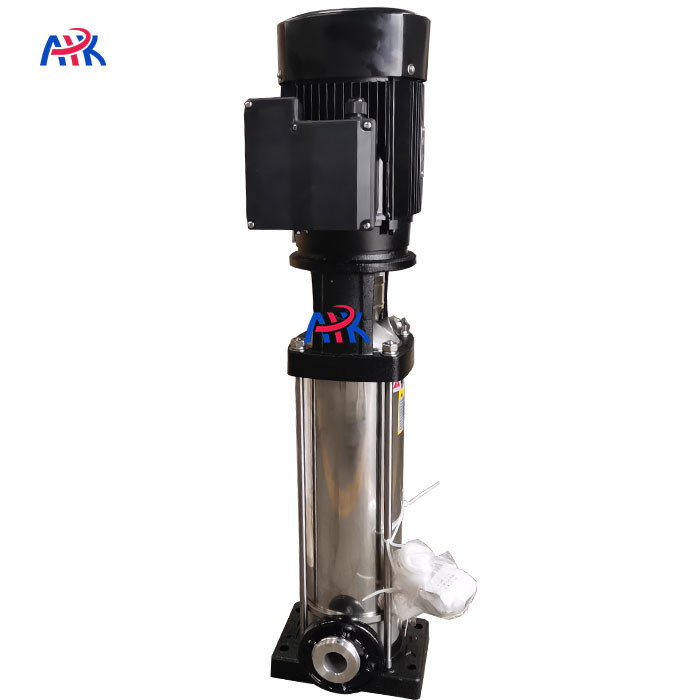

SS304 SS316 High Pressure Jockey Inline Vertical Multistage Booster Water Pump 0

Stainless Steel Vertical Multistage Pump Application
1. Water supply: Water filtration and conveying, waterworks water supply, pipe pressurization, high-rise building pressurization.
2. Industrial pressurization: Process water system, cleaning system, high pressure flushing system, fire control system.
3. Industrial liquid transportation: Cooling and air conditioning system, the boiler feed water and condensation system, machine tool accessory, acid and alkali.
4. Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator.
5. Irrigation: Farm irrigation, sprinkler, drip.



Why Ordering Water Pumps from Zhengzhou Shenlong Pump Industry CO.,Ltd?

1. Factory direct price

2. Professional knowledge and attentive service

3. Strict quality inspection and timely delivery

4. Highly value every order, no matter how small it is.

5. Offer confidentiality agreement "business secret contract

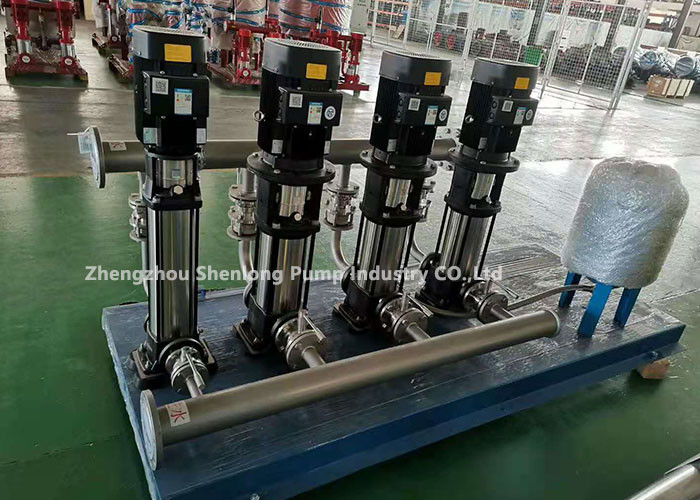

SS304 SS316 High Pressure Jockey Inline Vertical Multistage Booster Water Pump 1



FAQ



Q:How long is warranty?

A:About 12 months.



Q:How long is production lead time?

A:Depends on quantity, the normal small amount production is about 10 days.



Q:What’s type of shipping?

A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way



Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,

such as EXW, FOB, CIF.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
