250M3/H Axial Flow Pump Applied In Fishing Farm
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
Minimum Order Quantity : | 1 set | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Water submersible pump is packed with seaworthy export standard plywood case. | Delivery Time : | Within 10-25 working days upon receipt of payment |
Payment Terms : | T/T, Western Union, MoneyGram | Supply Ability : | 3000 sets per month |
Place of Origin: | China | Brand Name: | APK |
---|---|---|---|
Certification: | ISO;CE,BV; TUV; SGS | Model Number: | QSZ |
Detail Information |
|||
Flow Rate: | 914m3/h-80000m3/h | Head: | 3m-20m |
---|---|---|---|
Power Supply: | 3phase; 380v-10000v | Motor Power: | 7.5kw-1200kw |
Install: | Vertical/Horizontal | Warranty: | 24 Months |
Highlight: | Sewage Drainage Submersible Water Pump,20m Head Submersible Water Pump,7.5kw Submersible Water Pump |
Product Description

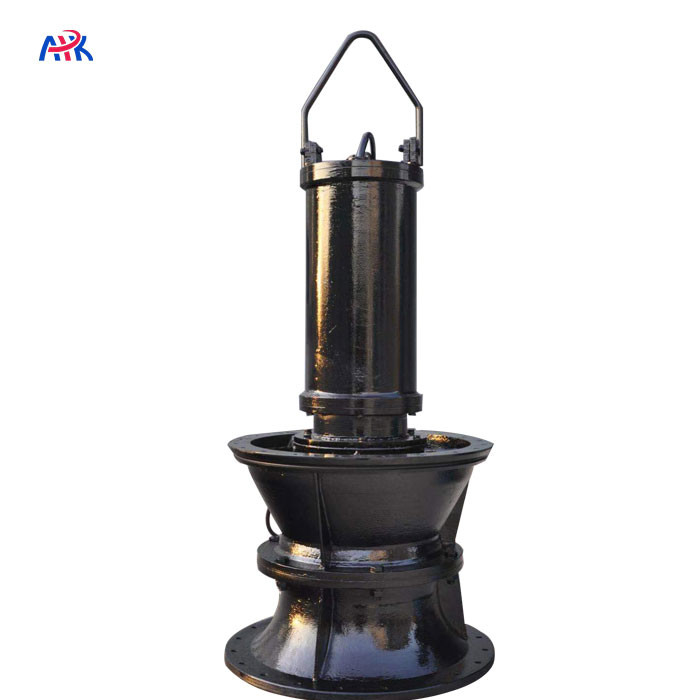

Mixed Flow Submersible Water Pump Flood Control Sewage Drainage Water
Mixed flow submersible pump characteristic:
1. It is the most thorough way to solve the problem of motor flood control by building pump stations along rivers and lakes with large water level fluctuation, and omit the long shaft and intermediate bearing between machines and pumps, so as to make the operation of the unit more reliable
2. Since the motor and water pump are integrated, the on-site installation is convenient and fast
3. Due to submerged operation, the civil engineering of the pump station can be simplified, the installation area can be reduced and the cost can be saved
4. Low noise, no high temperature in the pump station, improve the operating environment, and build an all underground pump station as required.
Mixed flow water submersible pump:
(Notice: flow rate, head meters, power, material, color, ODM OEM is available)
Model | Flow | Head | Shaft | Motor power | |
QZB | m3/h | l/s | m | kw | kw |
350QZB-50 | 914 | 254 | 10.5 | 34.74 | YQGN160-4 37 |
1101 | 306 | 8.97 | 34.74 | YQGN160-4 40 |
|
1177 | 327 | 9.08 | 37.54 | YQGN160-4 45 |
|
1372 | 381 | 7.2 | 35.88 | YQGN160-4 45 |
|
350QZB-50J | 608 | 169 | 4.88 | 10.82 | YQGN260-6 15 |
752 | 209 | 4.02 | 10.61 | ||
853 | 237 | 4.15 | 12.48 | ||
911 | 253 | 4.23 | 13.52 | ||
350QZB-70 | 770 | 214 | 7.65 | 21.6 | YQGN160-4 30 |
1159 | 322 | 4.46 | 18.3 | ||
1098 | 305 | 6.31 | 24.5 | YQGN160-4 37 |
|
918 | 255 | 3.92 | 13.1 | YQGN160-4 22 |
|
350QZB-85 | 968 | 269 | 5.01 | 17.4 | YQGN160-4 30 |
677 | 188 | 3.17 | 8.06 | YQGN260-4 11 |
|
350QZB-100 | 1040 | 289 | 2.17 | 8.9 | YQGN160-4 18.5 |
871 | 242 | 5.96 | 18.7 | YQGN160-4 22 |
|
1170 | 325 | 4.39 | 17.6 | YQGN160-4 30 |
|
350QZB-125 | 745 | 207 | 4.56 | 12.95 | YQGN160-4 15 |
1400 | 389 | 3.97 | 20.11 | YQGN160-4 22 |
|
619 | 172 | 2.26 | 5.24 | YQGN260-6 7.5 |
|
500QZB-50 | 1969 | 547 | 11.3 | 81.33 | YQGN225-6 90 |
2902 | 806 | 9.15 | 79.25 | YQGN225-6 110 |
|
500QZB-100 | 2952 | 820 | 2.97 | 29.9 | YQGN225-6 55 |
3020 | 839 | 4.89 | 49.9 | YQGN225-6 65 |
|
600QZB-70 | 2797 | 777 | 3.62 | 35.88 | YQGN462-8 65 |
3553 | 987 | 4 | 49.4 | YQGN462-8 75 |
|
600QZB-125 | 1800 | 500 | 3.57 | 24.9 | YQGN280-8 30 |
4680 | 1300 | 2.61 | 44 | YQGN280-8 75 |
|
700QZB-85 | 5551 | 1542 | 3.36 | 74.3 | YQGN315-8 132 |
6019 | 1672 | 6.78 | 143 | YQGN315-8 180 |
|
800QZB-50 | 7686 | 2165 | 5.21 | 156.8 | YQGN450-10 250 |
9763 | 2712 | 5.84 | 225.1 | YQGN450-10 330 |
|
900QZB-160 | 7880 | 2191 | 2.84 | 82.07 | YQGN450-12 90 |
10001 | 2778 | 3.17 | 119.6 | YQGN450-12 132 |
|
1000QZB-100 | 9072.3 | 2520.1 | 2.79 | 84.9 | 160 |
11803.5 | 3278.8 | 3.38 | 133.7 | 220 | |
1200QZB-125 | 13737.2 | 3815.9 | 3.72 | 165.1 | 250 |
16778.7 | 4660.7 | 3.26 | 183.8 |
316 |
Mixed Flow Water Submersible Pump Application:
1. Farmland drainage and irrigation
2. Dock, shipyard, yard
3. Urban construction
4. Water supply project
5. Water supply and drainage of power station
6. Amusement park

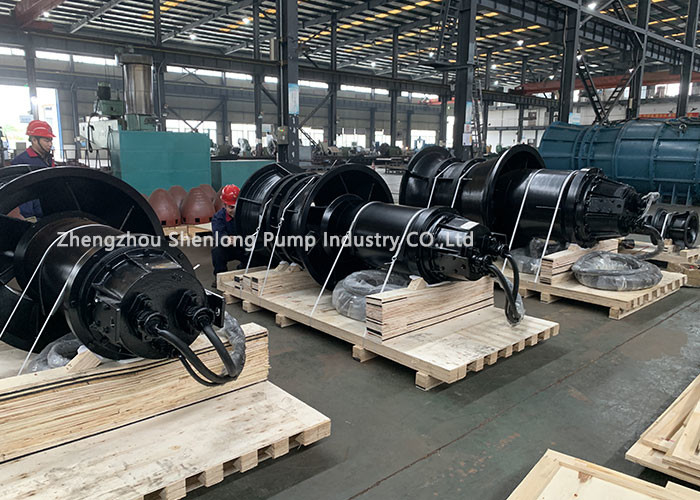

Zhengzhou Shenlong Pump Industry CO.,Ltd have been exported to more than 70 countries and regions, such as Southeast Asia, Europe, Africa, South America and Oceania and so on. It is the leader in the submersible pump industry in domestic, always stressing on quality and credibility. The company has participated in national standards and plays an important role in amending the national standards, such as CE, ABS.
Why choose us?
1. Specialized production Manufacturer for Water Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
