45KW Borehole Well Pump For Stainless Steel Drainage System
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
Minimum Order Quantity : | 1 | Price : | 9999USD/unit |
---|---|---|---|
Packaging Details : | Plywood as for export standard | Supply Ability : | 2000units/month |
Place of Origin: | China | Brand Name: | SLAPK |
---|---|---|---|
Certification: | CE | Model Number: | WLT300 large flow drainage fountain pumps |
Detail Information |
|||
Application: | Dry And Submersible Pumps | ||
---|---|---|---|
Highlight: | WLT Series Flow Drainage Fountain Pumps,Stainless Steel Flow Drainage submersible pumps,Wear Resistance Stainless Steel submersible pumps |
Product Description

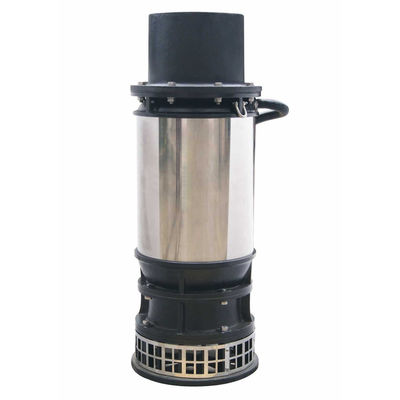

WLT series large flow drainage pump
l Strong pump structure, dry motor, double group mechanical seal, good waterproof, impeller diversion device, smooth water flow, long-term operation and use, pump waterproof grade meets IP68;
l Centrifugal, axial flow, oblique flow impeller design, low head, large flow, low energy consumption in line with economic benefits
l Impeller bronze material, is an excellent grade of copper material, both seawater corrosion resistance and wear resistance, sand wear least.
Application:
WLT series large flow drainage pump manufacture part

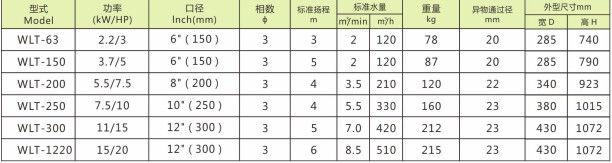

WLT series large flow drainage pump main specification:
Medium | Temperature | 0~40℃ | |
Medium | Agricultural irrigation, aquaculture water, river water. | ||
Maximum depth in use | 30m | ||
Pump | Structure | Impeller | 3HP,5HP:Centrifugal type;7.5HP,10HP:axial-flow type;15HP,20HP:Inclined flow |
Seal |
|
||
Bearing | Deep groove ball bearing | ||
Material | outer cover | Stainless steel | |
On the inside cover | Cast iron | ||
Housing | Cast iron | ||
Impeller | bronze | ||
sealed chamber | Cast iron | ||
bearing pedestal | Cast iron | ||
Motor | Type | Dry submersible | |
Pole | 4P | ||
insulation | F | ||
frequency | 50HZ | ||
Material | Motor case | Stainless steel | |
Cable | H07RN-F |
WLT 300 large flow drainage fountain pumps tested for Australian customer:
