524m3/H Long Shaft Water Pump Municipal Drainage Stainless Steel

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : pump is packed by wooden case or as your request Delivery Time : 3-5 working days after payment confirmation
Payment Terms : T/T, Western Union Supply Ability : 8563 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: LC

Detail Information

Name: Long Shaft Water Pump 524m3/H Municipal Drainage Flow Rate: 524m3/h
Head: 24-207.1m Material: Stainless Steel
Voltage: 380v Power: 55-45kw
Motor: 100% Copper Wire Warranty: One Year
High Light:

524 m3/H Long Shaft Water Pump

,

Municipal Drainage Submerged Long Shaft Pump

,

Stainless steel Submerged Long Shaft Pump

Product Description

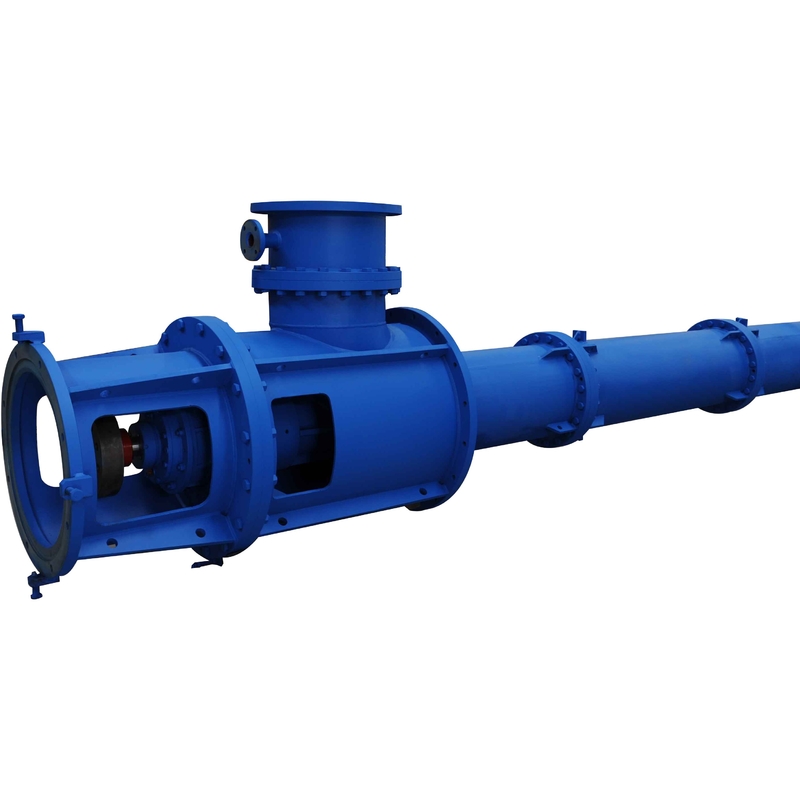

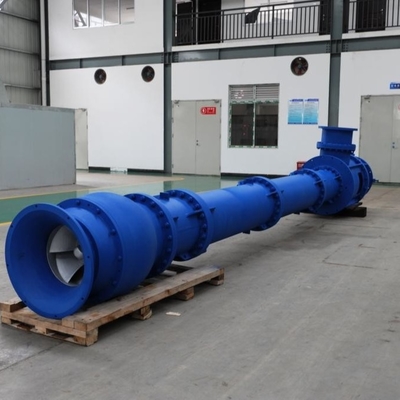

Long Shaft Water Pump 524m3/H Municipal Drainage



Long Shaft Water Pump 524m3/H Municipal Drainage Introduction:



Vertical long shaft turbine submersible pump is an advanced and mature series of pumps developed by our company on the basis of absorbing the advanced experience in the design and manufacturing of vertical long shaft pump at domestic and abroad, which combined with the market demand. Special design by our technical department, the temperature of conveying medium can reach 105 ℃.



Long Shaft Water Pump 524m3/H Municipal Drainage Model:



Type Capacity Head Shaft Power Motor Power
m3/h l/s m kw kw Type
250LC-24 524 144.9 24 43.4 55 YE2-250M-4 79
250LC-34 524 145.6 34 61.9 90 YE2-280M-4 78.5
250LC-52 524 145.6 51.8 94.8 132 YE2-315M-4 78
250LC-34×2 524 145.6 68 123.7 160 YE2-315L-4 78.5
250LC-34×3 524 145.6 102 185.6 250 YL450-4 78.5
250LC-34×4 524 145.6 136 247.4 315 YL450-4 78.5
250LC-52×3 524 145.6 155.3 284.4 355 YL450-4 78
250LC-34×5 524 145.6 170 309.3 400 YL450-4 78.5
250LC-52×4 524 145.6 207.1 379.2 450 YL450-4 78




Long Shaft Water Pump 524m3/H Municipal Drainage Model Other Model:



Type Capacity Head Shaft Power Motor Power Eff.
m3/h l/s m kw kw Type %
150LC-20 100 27.8 20 7.1 11 YE2-160M-4 77
150LC-7 181 50.4 7.4 4.7 7.5 YE2-132M-4 77
150LC-13 181 50.3 13 8.3 15 YE2-160L-4 77
150LC-18 188 52.2 18 12 18.5 YE2-180M-4 76.5
150LC-26 187 52 26 17.5 30 YE2-200L-4 76
150LC-18×2 188 52.2 36 24.1 30 YE2-200L-4 76.5
150LC-18×3 188 52.2 54 36.1 55 YE2-250M-4 76.5
150LC-18×4 188 52.2 72 48.2 75 YE2-280S-4 76.5
150LC-18×5 188 52.2 90 60.2 75 YE2-280S-4 76.5
150LC-18×6 188 52.2 108 72.3 110 YE2-315S-4 76.5
150LC-26×2 187 52 52.1 34.9 45 YE2-225M-4 76
150LC-26×3 187 52 78.1 52.4 75 YE2-280S-4 76
150LC-26×4 187 52 104.2 69.9 90 YE2-280M-4 76
150LC-26×5 187 52 130.2 87.3 110 YE2-315S-4 76
150LC-26×6 187 52 156.3 104.8 132 YE2-315M-4 76
200LC-7 335 93.1 7.7 9.1 15 YE2-160L-4 77.5
200LC-11 336 93.4 11.2 13.1 18.5 YE2-180M-4 78
200LC-21 360 100 21 26.4 37 YE2-225S-4 78
200LC-26 336 93.2 26.5 31.2 45 YE2-225M-4 77.5
200LC-38 334 92.8 38.3 45.3 75 YE2-280S-4 77
200LC-21×2 360 100 42 52.8 75 YE2-280S-4 78
200LC-21×3 360 100 63 79.2 110 YE2-315S-4 78
200LC-21×4 360 100 84 105.6 132 YE2-315M-4 78
200LC-21×5 360 100 105 132.1 185 YE2-315L-4 78
200LC-21×6 360 100 126 158.5 200 YE2-315L-4 78
200LC-38×4 334 92.8 153.3 181.2 220 YE2-355M-4 77
200LC-38×5 334 92.8 191.7 226.5 280 YL450-4 77
250LC-7 531 147.6 7.1 13.2 18.5 YE2-180M-4 78
250LC-10 535 148.5 10.6 19.6 30 YE2-200L-4 78.5
250LC-15 522 144.9 15 26.9 37 YE2-225S-4 79
250LC-24 524 144.9 24 43.4 55 YE2-250M-4 79
250LC-34 524 145.6 34 61.9 90 YE2-280M-4 78.5
250LC-52 524 145.6 51.8 94.8 132 YE2-315M-4 78
250LC-34×2 524 145.6 68 123.7 160 YE2-315L-4 78.5
250LC-34×3 524 145.6 102 185.6 250 YL450-4 78.5
250LC-34×4 524 145.6 136 247.4 315 YL450-4 78.5
250LC-52×3 524 145.6 155.3 284.4 355 YL450-4 78
250LC-34×5 524 145.6 170 309.3 400 YL450-4 78.5
250LC-52×4 524 145.6 207.1 379.2 450 YL450-4 78
300LC-9 754 209.3 9 23.3 30 YE2-200L-4 79
300LC-13 751 208.6 13.2 34.1 45 YE2-225M-4 79.5
300LC-19 759 211 19.2 49.7 75 YE2-280S-4 80
300LC-33 760 211.1 33.8 87.4 110 YE2-315S-4 80
300LC-45 746 207.3 45.1 115.4 160 YE2-315L-4 79.5
300LC-65 752 208.9 65.9 170.9 220 YE2-355M-4 79
300LC-45×2 746 207.3 90.2 230.8 280 YL450-4 79.5
300LC-65×2 752 208.9 131.7 341.7 450 YL450-4 79
300LC-45×4 746 207.3 180.4 461.5 560 YL450-4 79.5
300LC-65×3 752 208.9 197.6 512.6 630 YL450-4 79
350LC-11 952 286.2 11.3 38.8 55 YE2-250M-4 80
350LC-16 1039 288.6 16.4 57.8 75 YE2-280S-4 80.5
350LC-23 1030 286.2 23.6 81.6 110 YE2-315S-4 81
350LC-30 900 250 30.2 92 132 YE2-315M-4 80.5
350LC-41 1034 287.1 41.5 144.2 185 YE2-315L-4 81
350LC-52 1024 284.4 52 180.2 250 YL450-4 80.5
350LC-81 1038 288.3 81.6 288.7 355 YL450-4 80
350LC-52×2 1024 284.4 104 360.4 450 YL450-4 80.5
350LC-52×3 1024 284.4 156 540.6 710 YL500-4 80.5
350LC-52×4 1024 284.4 208 720.8 900 YL500-4 80.5
400LC-13 1331 369.7 13.1 58.7 75 YE2-280S-4 81
400LC-19 1345 373.5 19.5 87.8 110 YE2-315S-4 81.5
400LC-27 1323 367.5 27.8 122.3 160 YE2-315L-4 82
400LC-30 1400 389 30 139.6 185 YE2-315L-4 82



Long Shaft Water Pump 524m3/H Municipal Drainage advantages:



high efficiency,

wide high efficiency area

high head

wide type spectrum coverage

flat head curve

no overload of power curve

long length below the foundation

It is used to transport clean water, river water, rainwater, sea water below 80 ℃, sewage containing certain solid particles (such as iron oxide scale, sand, pulverized coal)

corrosive industrial wastewater. Through special design, the temperature of conveying medium can reach 105 ℃.



Long Shaft Water Pump 524m3/H Municipal Drainage Application fields:



Iron and steel, metallurgical industry, thermal power plant, hydropower station, petrochemical industry, river, lake, reservoir, seaside water intake and fire control.



Win-win cooperation is the foundation of our business. We listen to our customers' requirements and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values.
