ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Pipeline water pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram Supply Ability : 1000 pieces per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE Model Number: Pipeline Water Pump

Detail Information

Flow: 95m3/h Head: 113m
Power: 55kw Voltage: 380v/440v Or As Per Request
Frequency: 3 Phase 50hz/60hz Install: Vertical; Horizontal
Highlight:

7.5kw Pipeline Centrifugal Pump

,

15kw Pipeline Centrifugal Pump

,

Pipeline Centrifugal Pump For Water Transportation

Product Description


ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance water transportation



The ISW pipeline centrifugal pump is a single-stage, single-suction vertical centrifugal pump widely used in industrial and municipal water supply systems. It features a compact structure, smooth operation, high efficiency, and low noise. It is suitable for conveying clean water or liquids with physical and chemical properties similar to water.

ISW pumps are usually installed directly in the pipeline, saving space and making maintenance easier. They are commonly used in modern buildings, high-rise buildings, factories, and other facilities.

The four power configurations of 5.5 kW, 7.5 kW, 11 kW, and 15 kW meet the requirements of different working conditions. The fully sealed structure and high-quality motor ensure long-term continuous operation and reduce maintenance frequency. The compact pump body facilitates on-site installation and later maintenance, saving time and labor costs. Different materials can be selected according to specific water quality conditions to extend service life.


Working Principle
The ISW pipeline centrifugal pump uses an electric motor to drive the impeller to rotate at high speed, causing the liquid to be thrown from the center of the impeller to the edge under centrifugal force, thereby increasing the kinetic and pressure energy of the liquid. The liquid is collected by the volute casing and directed to the outlet, achieving continuous liquid transfer.


Advantages of IS Pump


Feature

Description

Compact Structure

Vertical installation saves space

Stable Operation

Low vibration and noise

Easy Maintenance

Removable pump body for easy repair

High Efficiency

Optimized impeller design improves energy efficiency

Customizable Options

Can be tailored in material, performance, etc.

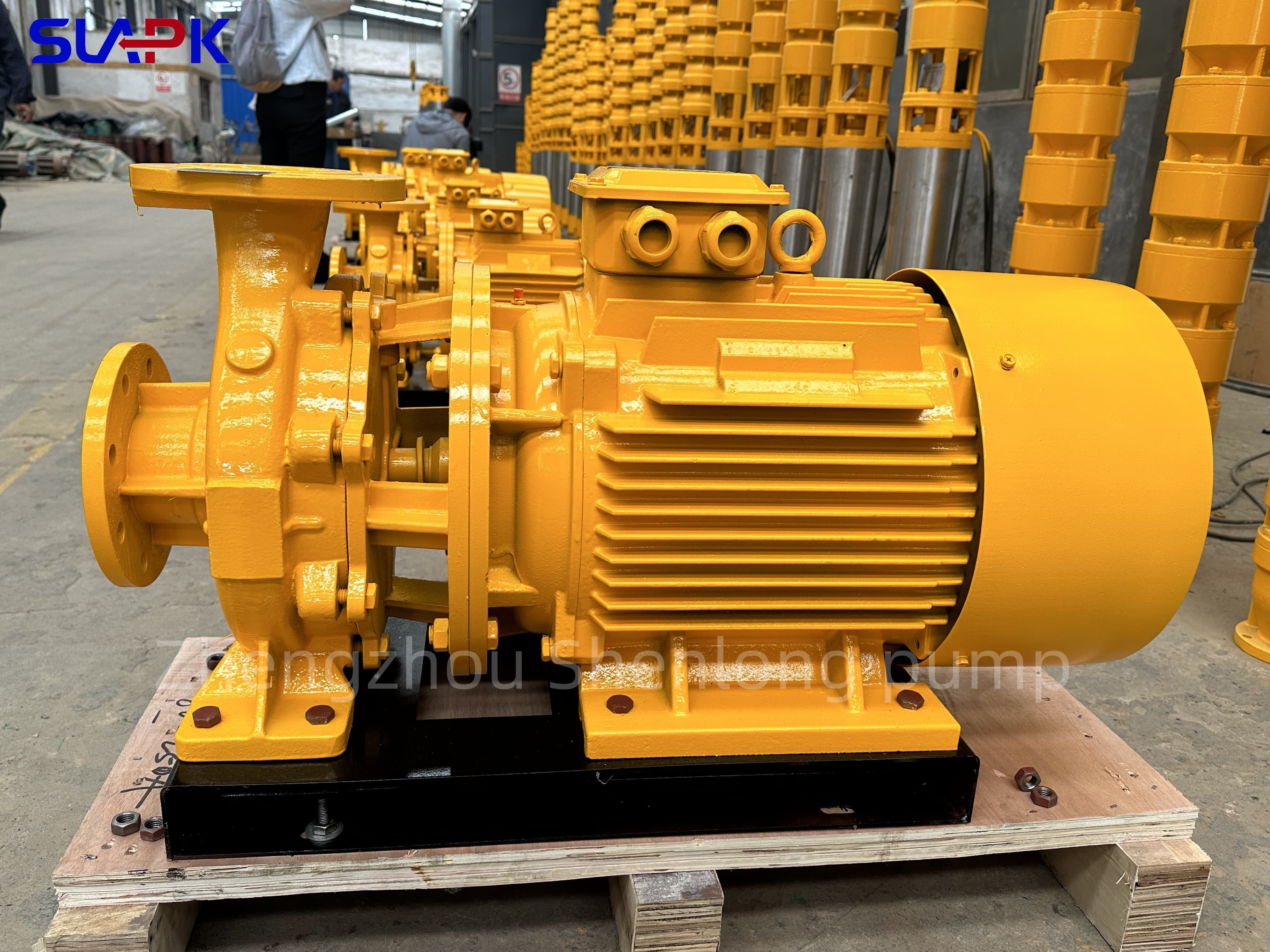

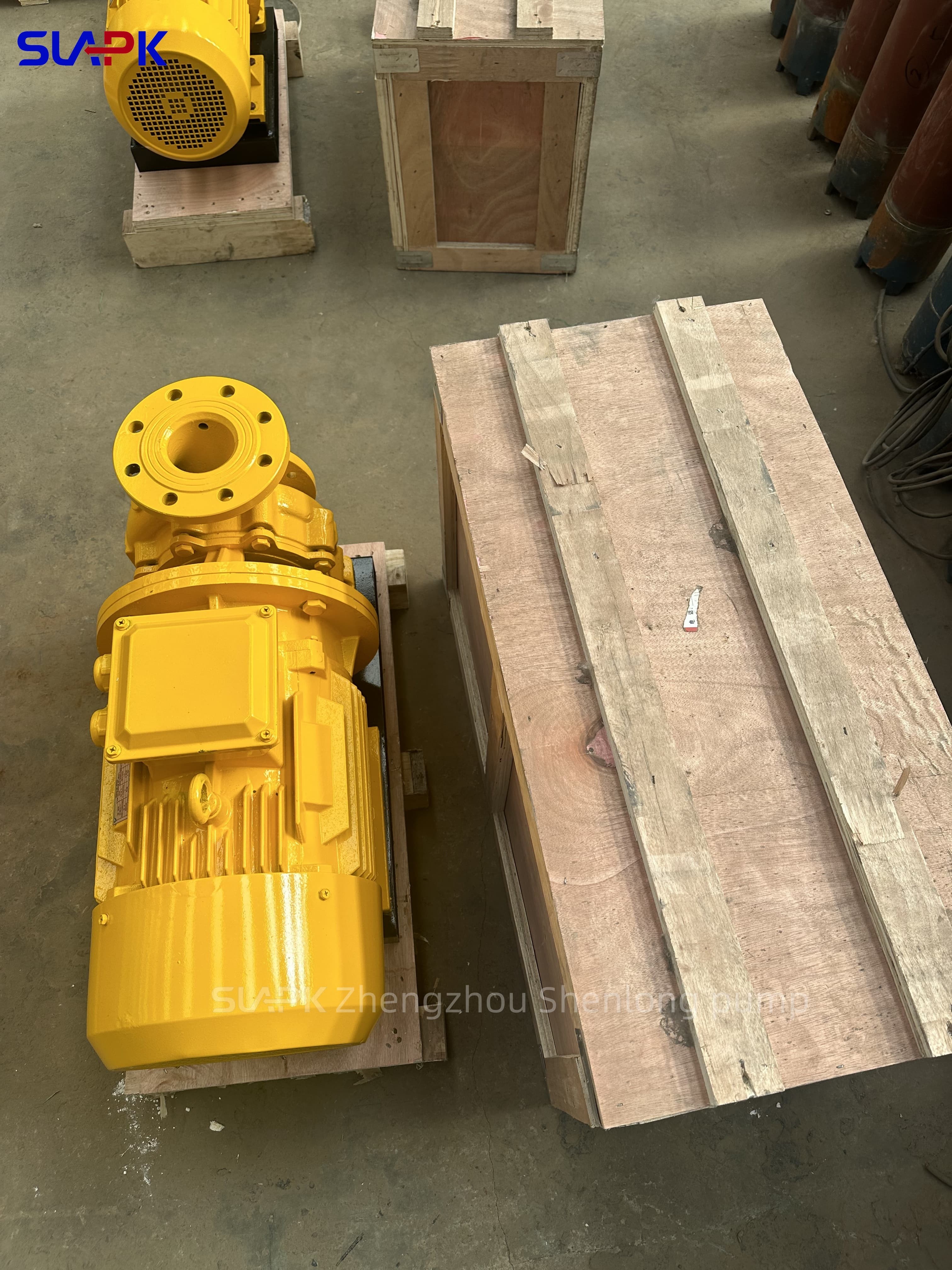

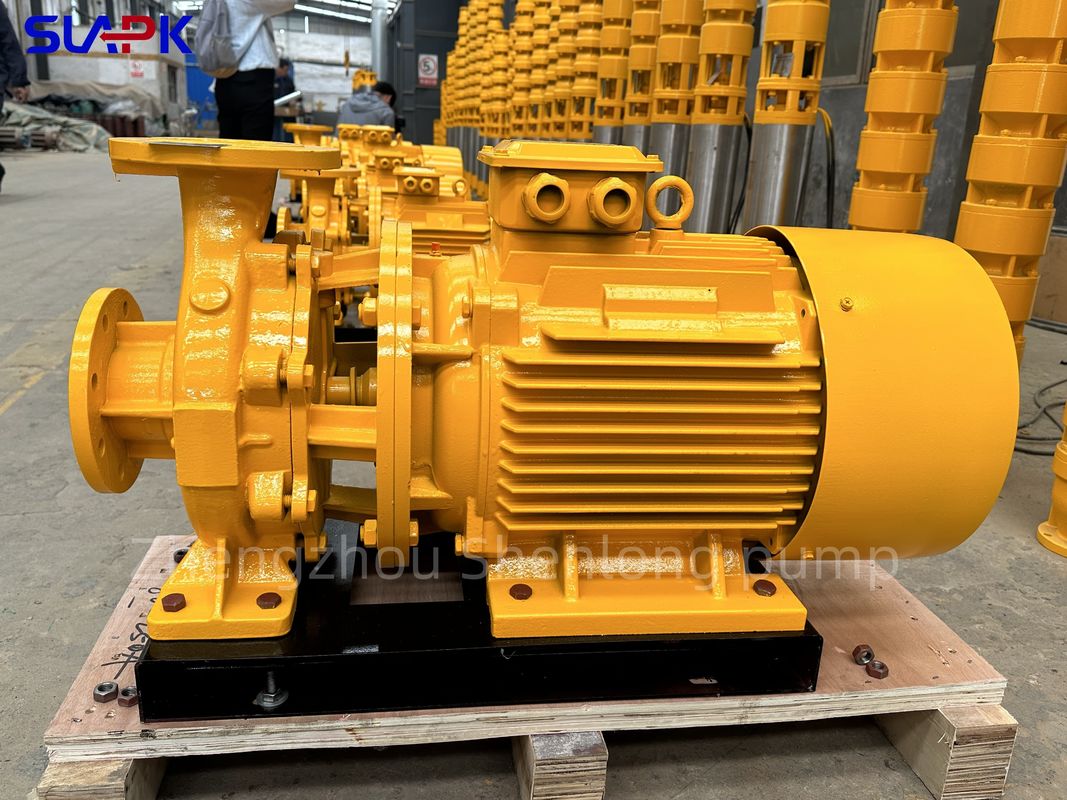

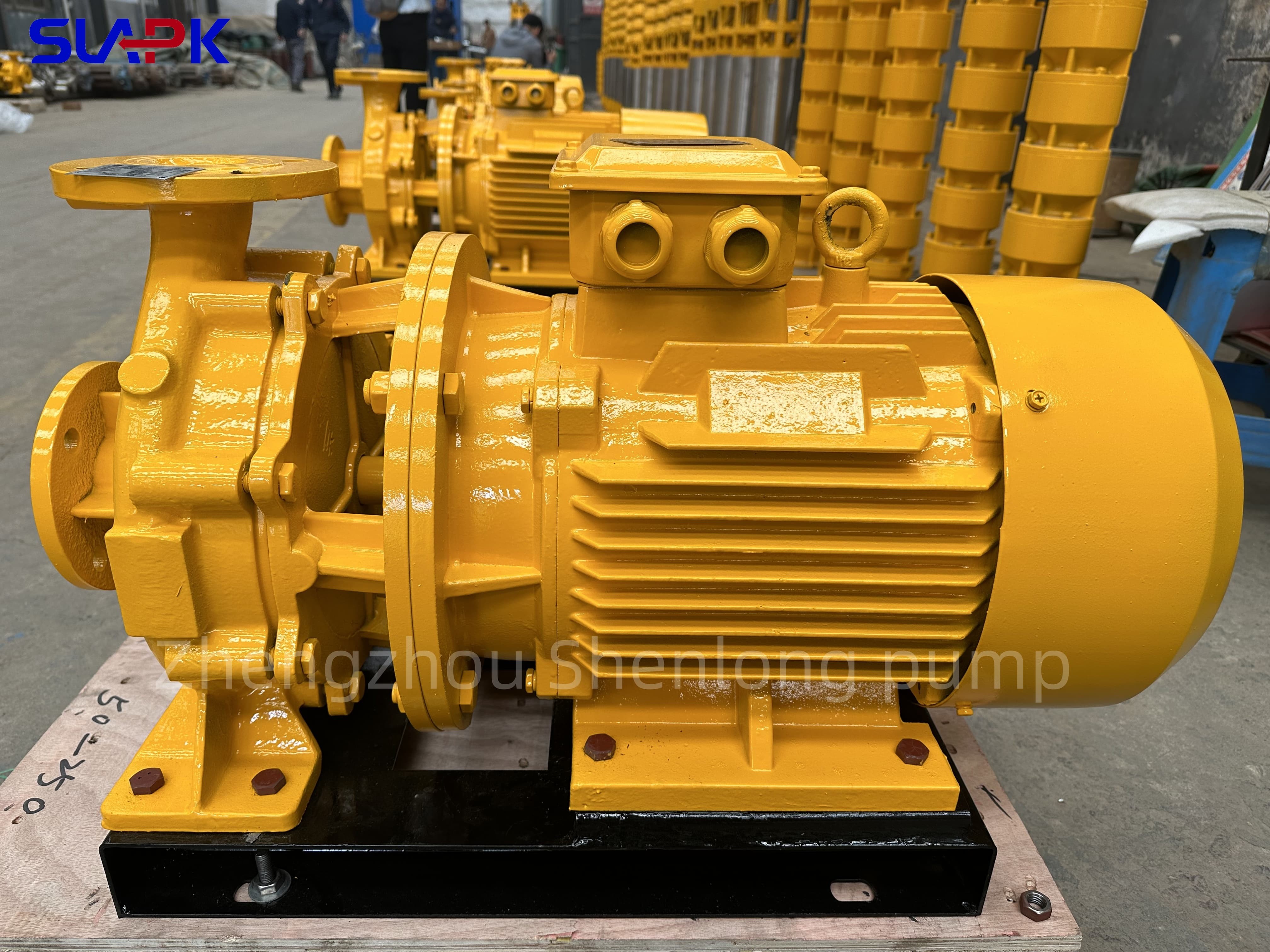

Picture:


ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation 0

ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation 1

ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation 2

ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation 3

ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation 4

ISW Pipeline Centrifugal Pump 5.5kw 7.5kw 11kw 15kw Long-distance Water Transportation 5

Customization Support

ISW pumps can be customized according to user requirements, including:

Selection of materials (e.g., cast iron, stainless steel, bronze) to suit different media;

Adjustment of flow rate and head;

Explosion-proof motor configurations for flammable and explosive environments;

Corrosion-resistant treatments for use in chemical and wastewater treatment industries;

Integration of intelligent control systems (e.g., frequency conversion control, remote monitoring).

If you have any needs, please contact us. Our email is enquiry02@apkpump.com, our Whatsapp is +86 17537187726. Thank you for your inquiry!
