| Minimum Order Quantity : | 1 set | Price : | Please feel free to contact us |
|---|---|---|---|
| Packaging Details : | Submersible fountain pumps is packed by standard export wooden case | Delivery Time : | 15-25 working days after payment confirmation |
| Payment Terms : | T/T,Western Union,L/C,MoneyGram,D/P,D/A | Supply Ability : | 8578 pieces per month |
| Place of Origin: | Henan, China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service | Model Number: | submersible fountain pump |
|
Detail Information |
|||
| Features: | Vertical Or Horizontal | Flow: | 10-250m3/h |
|---|---|---|---|
| Head: | 6-121m | Horsepower: | 1hp-10hp |
| Power: | 0.75kw-7.5kw | Material: | Cast Iron/stainless Steel 304/316/316l |
| Applications: | Music Fountain, Dry Fountan, Landscape, Project Design | Warranty: | 24 Months |
| ODM OEM: | Accept | ||
Product Description

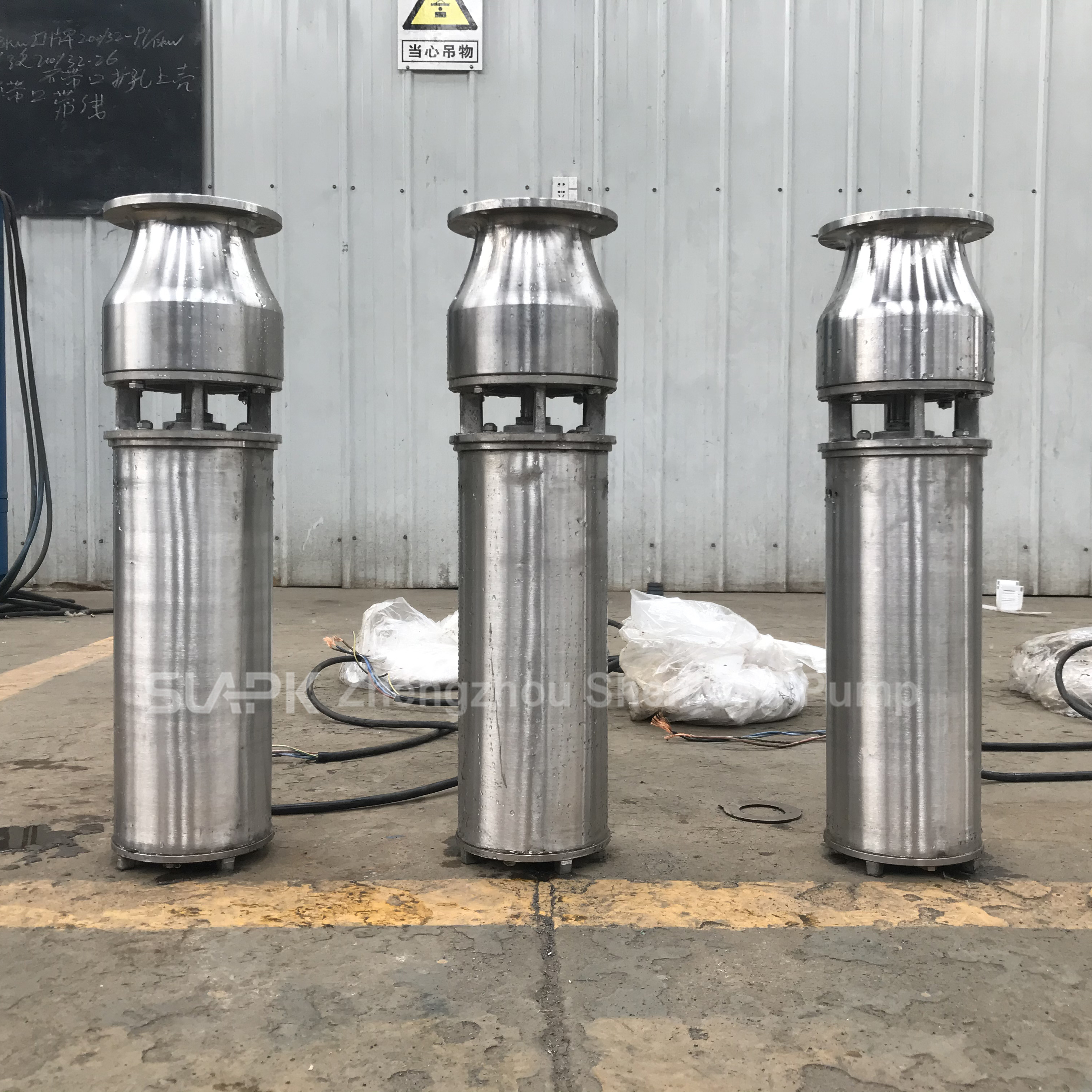

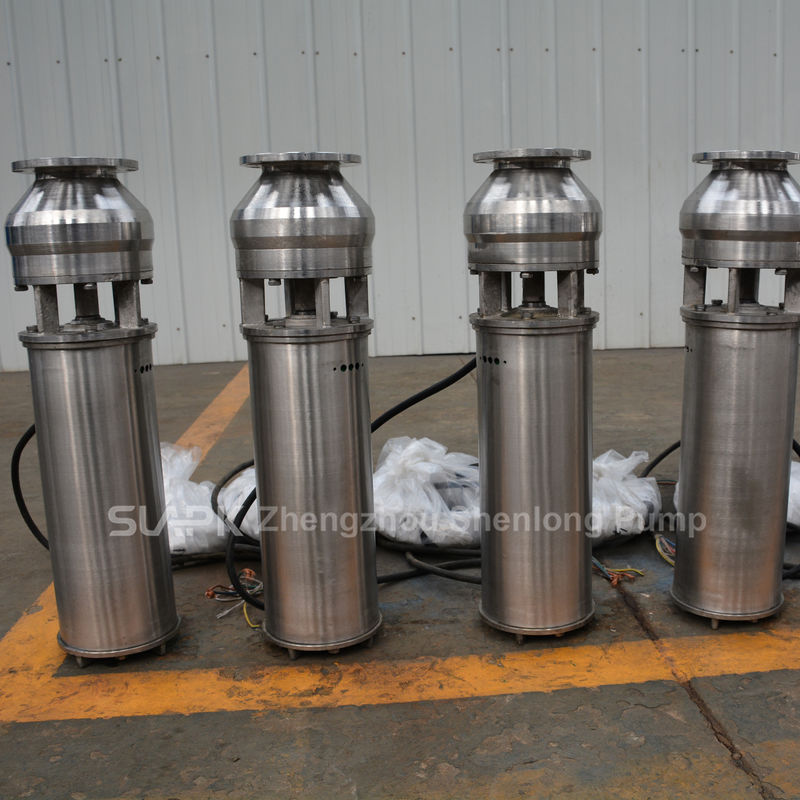

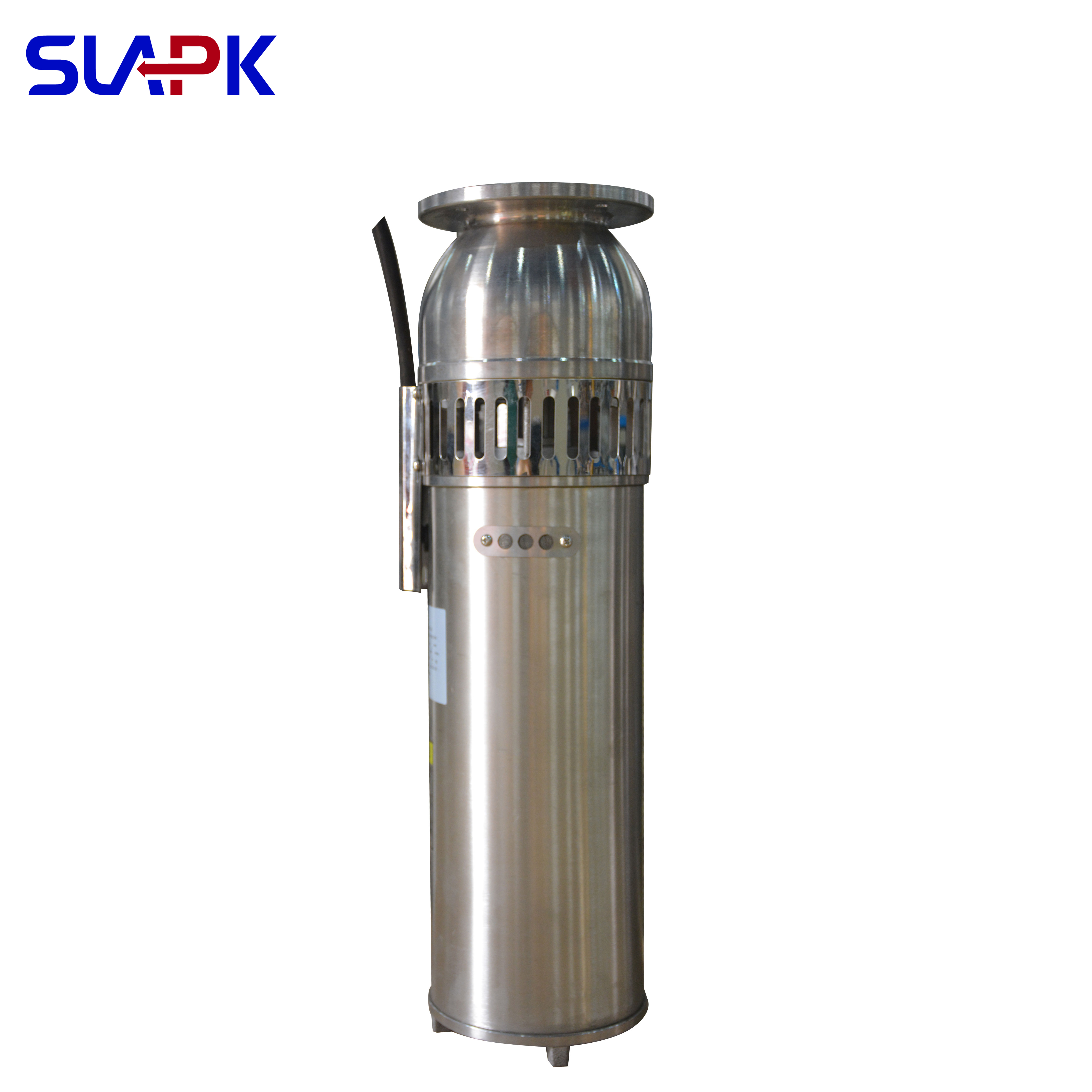

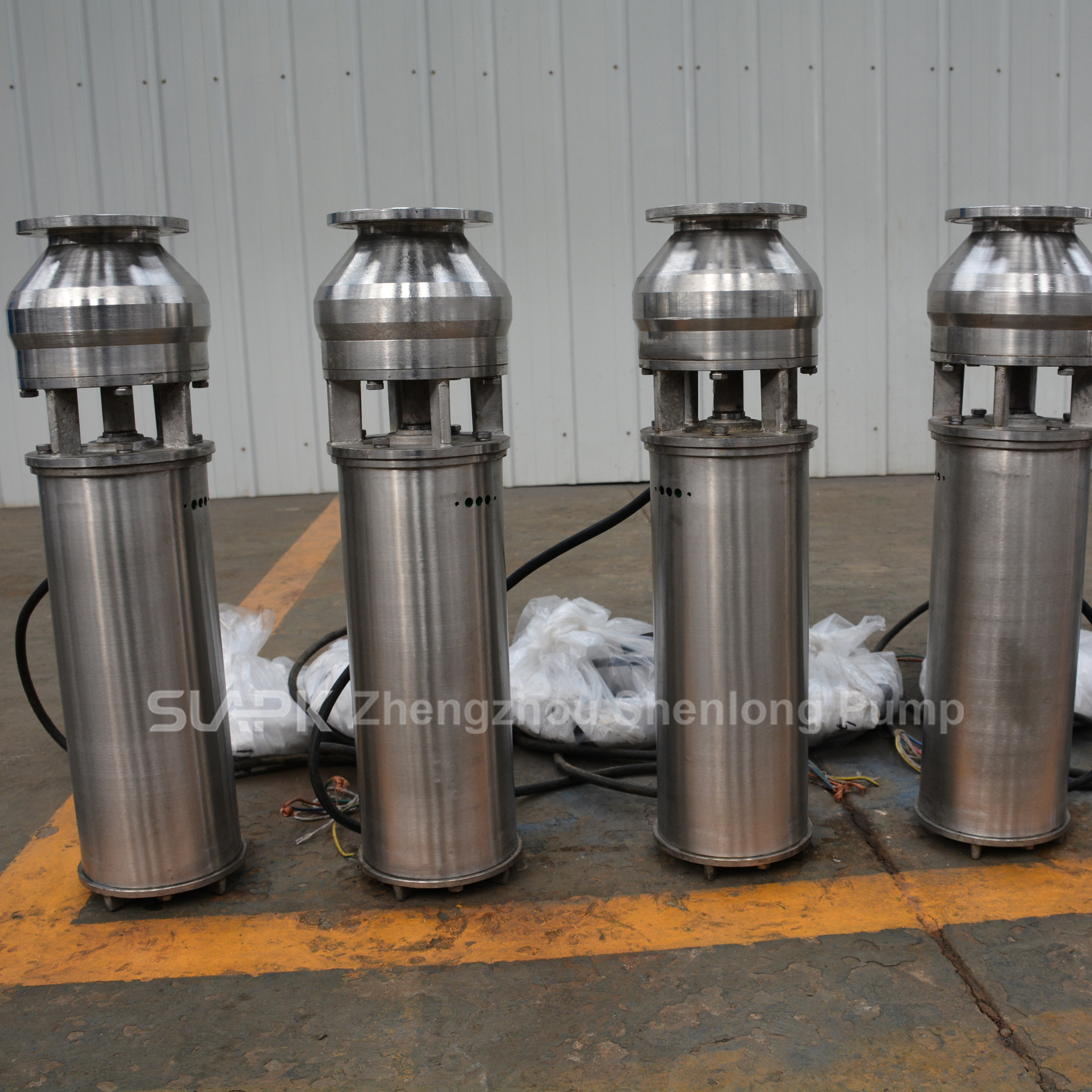

3kw 5.5kw QSP Fountain pump Corrosion resistance Water Fountain Pump Musical Fountain
3kw 5.5kw QSP Fountain pump Overview
The QSP series fountain pump is a newly developed specialized pump designed specifically for fountains. The motor uses DR470 cold-rolled silicon steel sheets, with increased winding turns and thicker submersible wire gauge. The cable is a four-core three-phase JHS-type fountain cable (special fountain cable), and the impeller is equipped with an anti-loosening device. The motor cavity is coated with anti-rust magnetic paint. These structural improvements reduce the pump's moment of inertia, resulting in faster response times. High-performance dedicated bearings and enhanced insulation (insulation class) ensure the pump meets the frequent start-up requirements of musical and special fountains.
3kw 5.5kw QSP Fountain pump Operating conditions
1. QSP series fountain pumps must be completely immersed in water during operation, with a minimum immersion depth of 0.5 meters and a maximum immersion depth of 5 meters.
2. The ambient water temperature must not exceed 40°C.
3. The working medium is non-corrosive clean water, with a sand content of no more than 0.1% and a pH value between 6.5 and 8.5.
4. The power supply is three-phase 50Hz with a rated voltage of 380V. The power supply voltage should be kept within the range of 342V to 420V.
5. QSP series fountain pumps should be used within the applicable range near their rated head (pressure).
6. The pump must be equipped with a suitable start protector and reliably grounded.
3kw 5.5kw QSP Fountain pump Parameter Table:
|
model |
flow |
Head |
Power |
Maximum outer diameter |
Pump height |
|
QSP10-10-0.55 |
10 |
10 |
0.55 |
150 |
420 |
|
QSP10-7-0.55 |
15 |
7 |
0.55 |
150 |
420 |
|
QSP10-13-0.75 |
10 |
13 |
0.75 |
168 |
440 |
|
QSP15-10-0.75 |
15 |
10 |
0.75 |
168 |
440 |
|
QSP25-6-0.75 |
25 |
6 |
0.75 |
168 |
440 |
|
QSP10-13-0.75 |
10 |
13 |
0.75 |
168 |
440 |
|
QSP25-9-1.1 |
25 |
9 |
1.1 |
168 |
460 |
|
QSP40-6-1.1 |
40 |
6 |
1.1 |
168 |
460 |
|
QSP15-14-1.1 |
15 |
14 |
1.1 |
150 |
460 |
|
QSP65-5-1.1 |
65 |
5 |
1.1 |
150 |
460 |
|
QSP25-12-1.5 |
25 |
12 |
1.5 |
168 |
460 |
|
QSP40-8-1.5 |
40 |
8 |
1.5 |
168 |
460 |
|
QSP15-26-2.2 |
15 |
26 |
2.2 |
168 |
535 |
|
QSP20-20-2.2 |
20 |
20 |
2.2 |
168 |
535 |
|
QSP25-17-2.2 |
25 |
17 |
2.2 |
168 |
570 |
|
QSP40-13-2.2 |
40 |
13 |
2.2 |
168 |
560 |
|
QSP65-7-2.2 |
65 |
7 |
2.2 |
168 |
570 |
|
QSP40-16-3 |
40 |
16 |
3 |
168 |
530 |
|
QSP40-18-3 |
40 |
18 |
3 |
168 |
530 |
|
QSP45-16-3 |
45 |
16 |
3 |
168 |
530 |
|
QSP25-25-3 |
25 |
25 |
3 |
168 |
530 |
|
QSP32-20-3 |
32 |
20 |
3 |
168 |
530 |
|
QSP50-13-3 |
50 |
13 |
3 |
168 |
530 |
|
QSP65-10-3 |
65 |
10 |
3 |
168 |
610 |
|
QSP15-36/2-3 |
15 |
36 |
3 |
168 |
640 |
|
QSP30-25/2-3 |
30 |
25 |
3 |
168 |
640 |
|
QSP20-30/2-3 |
20 |
30 |
3 |
168 |
640 |
|
QSP15-40/3-3 |
15 |
40 |
3 |
168 |
750 |
|
QSP40-21-4 |
40 |
21 |
4 |
168 |
600 |
|
QSP40-24-4 |
40 |
24 |
4 |
168 |
600 |
|
QSP65-13-4 |
65 |
13 |
4 |
168 |
600 |
|
QSP80-10-4 |
80 |
10 |
4 |
168 |
610 |
|
QSP100-7-4 |
100 |
7 |
4 |
184 |
650 |
|
QSP25-36/2-4 |
25 |
36 |
4 |
168 |
700 |
|
QSP15-45/3-4 |
15 |
45 |
4 |
168 |
810 |
|
QSP15-52/4-4 |
15 |
52 |
4 |
168 |
920 |
|
QSP20-40/2-4 |
20 |
40 |
4 |
168 |
700 |
|
QSP30-26/2-4 |
30 |
26 |
4 |
168 |
700 |
|
QSP40-28-5.5 |
40 |
28 |
5.5 |
225 |
620 |
|
QSP45-25-5.5 |
45 |
25 |
380 |
620 |
|
|
QSP60-20-5.5 |
60 |
20 |
5.5 |
184 |
620 |
|
QSP65-18-5.5 |
65 |
18 |
5.5 |
184 |
620 |
|
QSP120-10-5.5 |
120 |
10 |
5.5 |
205 |
760 |
|
QSP200-8-5.5 |
200 |
8 |
5.5 |
205 |
760 |
|
QSP220-5-5.5 |
220 |
5 |
5.5 |
205 |
760 |
|
QSP250-5-5.5 |
250 |
5 |
5.5 |
205 |
760 |
|
QSP40-30/2-5.5 |
40 |
30 |
5.5 |
168 |
740 |
|
QSP30-36/2-5.5 |
30 |
36 |
5.5 |
168 |
740 |
|
QSP30-40/3-5.5 |
30 |
40 |
5.5 |
168 |
840 |
|
QSP20-50/3-5.5 |
20 |
50 |
5.5 |
168 |
840 |
|
QSP20-54/4-5.5 |
20 |
54 |
5.5 |
168 |
950 |
|
QSP15-65/4-5.5 |
15 |
65 |
5.5 |
168 |
950 |
|
QSP65-25-7.5 |
65 |
25 |
7.5 |
184 |
740 |
|
QSP80-20-7.5 |
80 |
20 |
7.5 |
184 |
740 |
|
QSP100-17-7.5 |
100 |
7 |
7.5 |
205 |
780 |
|
QSP150-8-7.5 |
150 |
8 |
7.5 |
205 |
780 |
|
QSP250-8-7.5 |
250 |
8 |
7.5 |
205 |
780 |
|
QSP40-40/2-7.5 |
40 |
40 |
7.5 |
184 |
850 |
|
QSP80-24/2-7.5 |
80 |
24 |
7.5 |
184 |
880 |
|
QSP30-54/3-7.5 |
30 |
54 |
7.5 |
184 |
940 |
|
QSP25-65/3-7.5 |
25 |
65 |
7.5 |
184 |
945 |
|
QSP50-36/2-7.5 |
50 |
36 |
7.5 |
184 |
850 |
|
QSP20-78/6-7.5 |
20 |
78 |
7.5 |
184 |
1360 |
|
QSP120-18/2-7.5 |
120 |
18 |
7.5 |
205 |
880 |
1. Power: 1.1kw-7.5kw (1hp-10hp)
2. Flow: 10-250m3/h
3. Head: 6-121m
4. Material: cast iron/stainless steel 304/316/316l
5. Install: vertical or horizontal
6. Applications: music fountain, dry fountain, landscape or project design
Testing: We test each submersible water pump before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not.
Also we could send raw material testing report, testing video, testing pictures.
