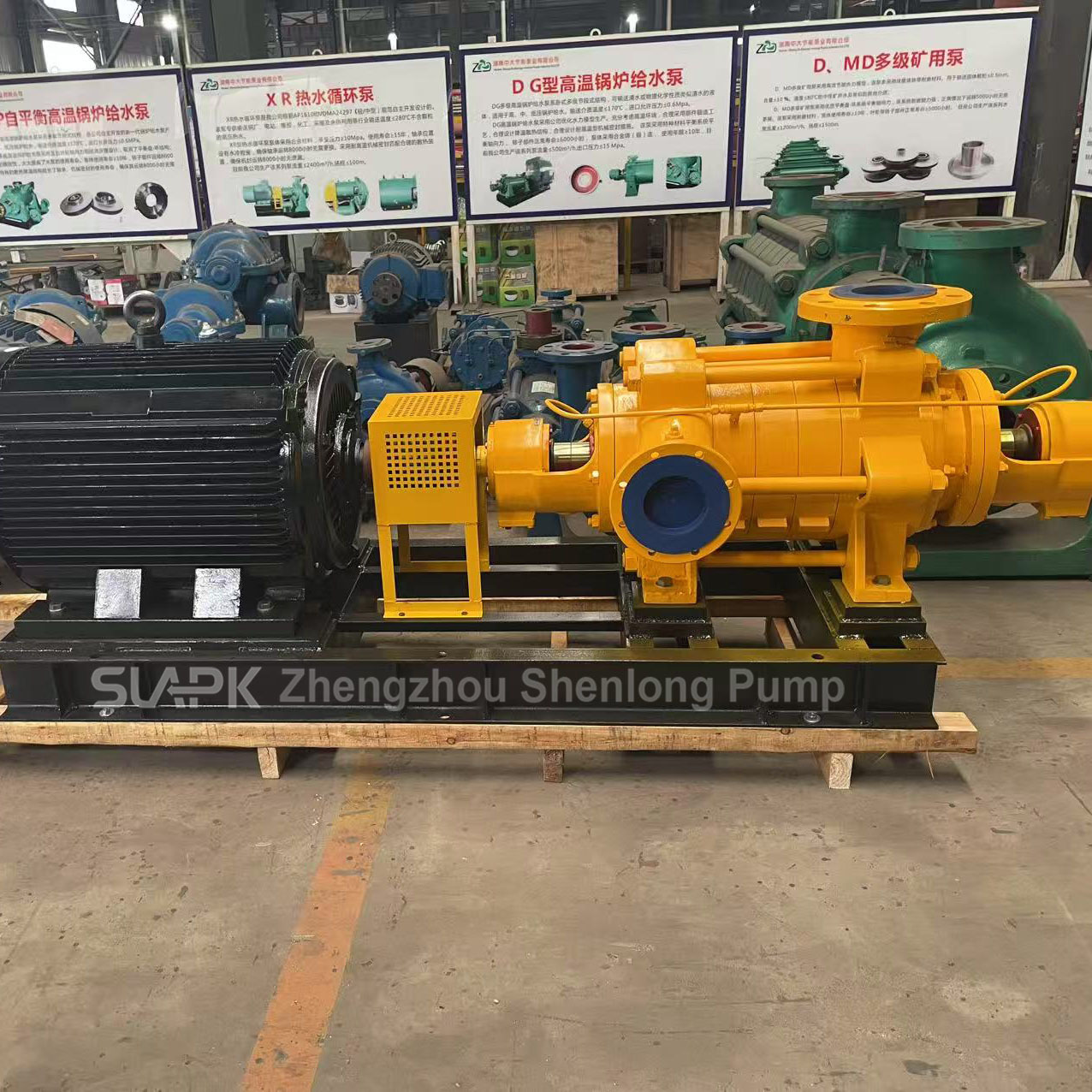

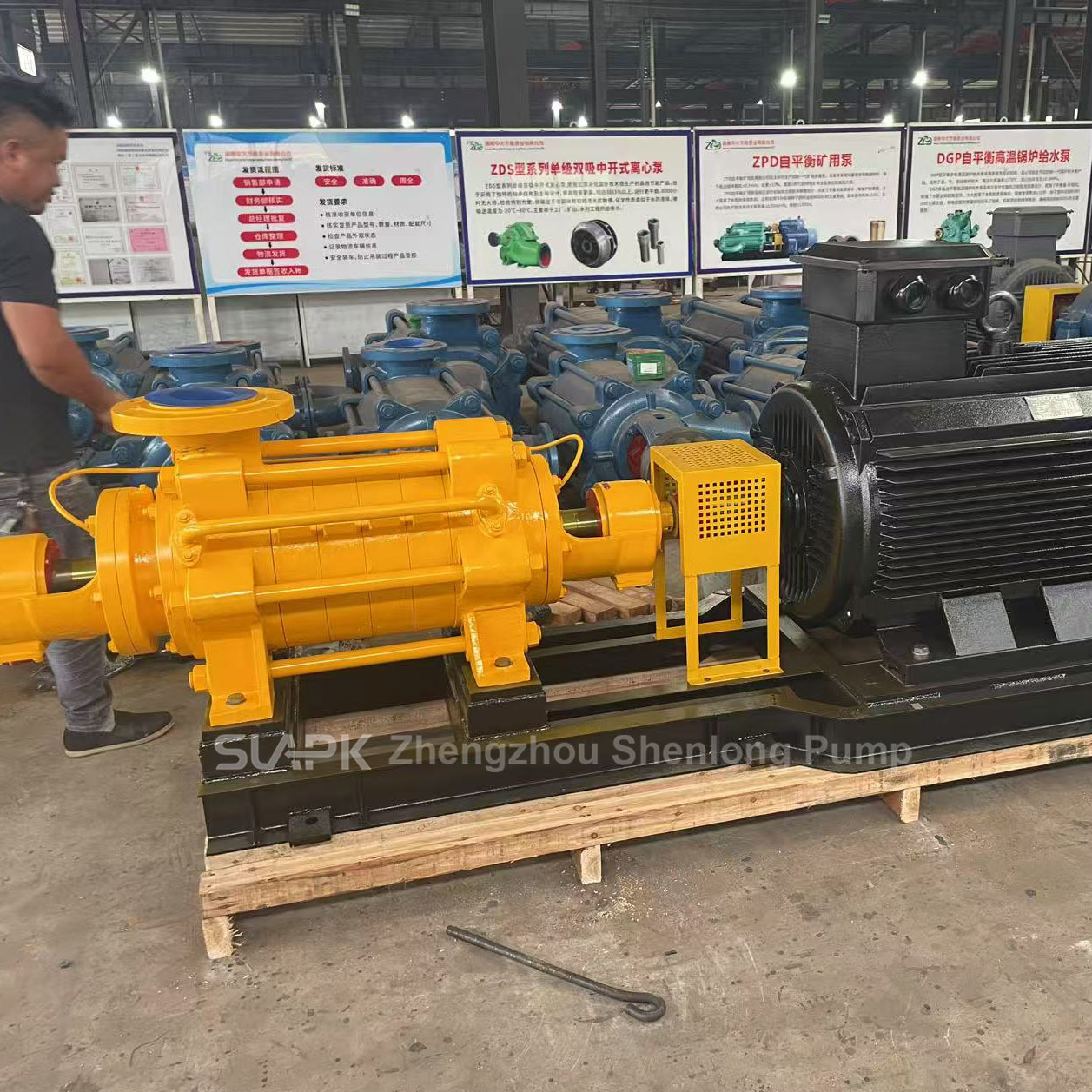

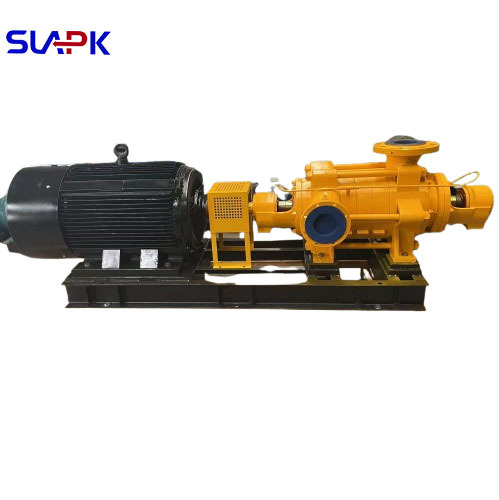

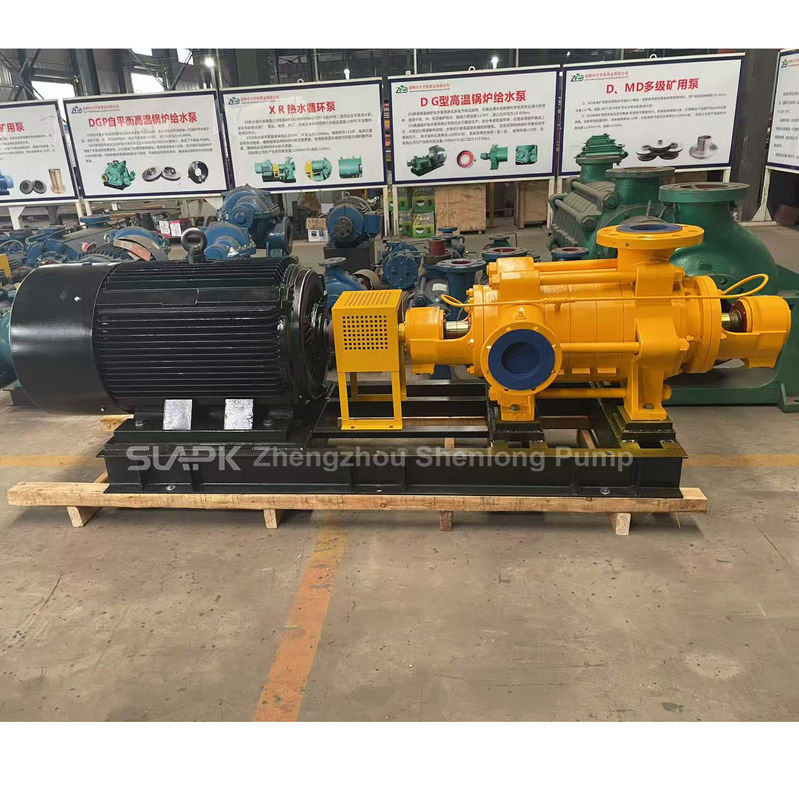

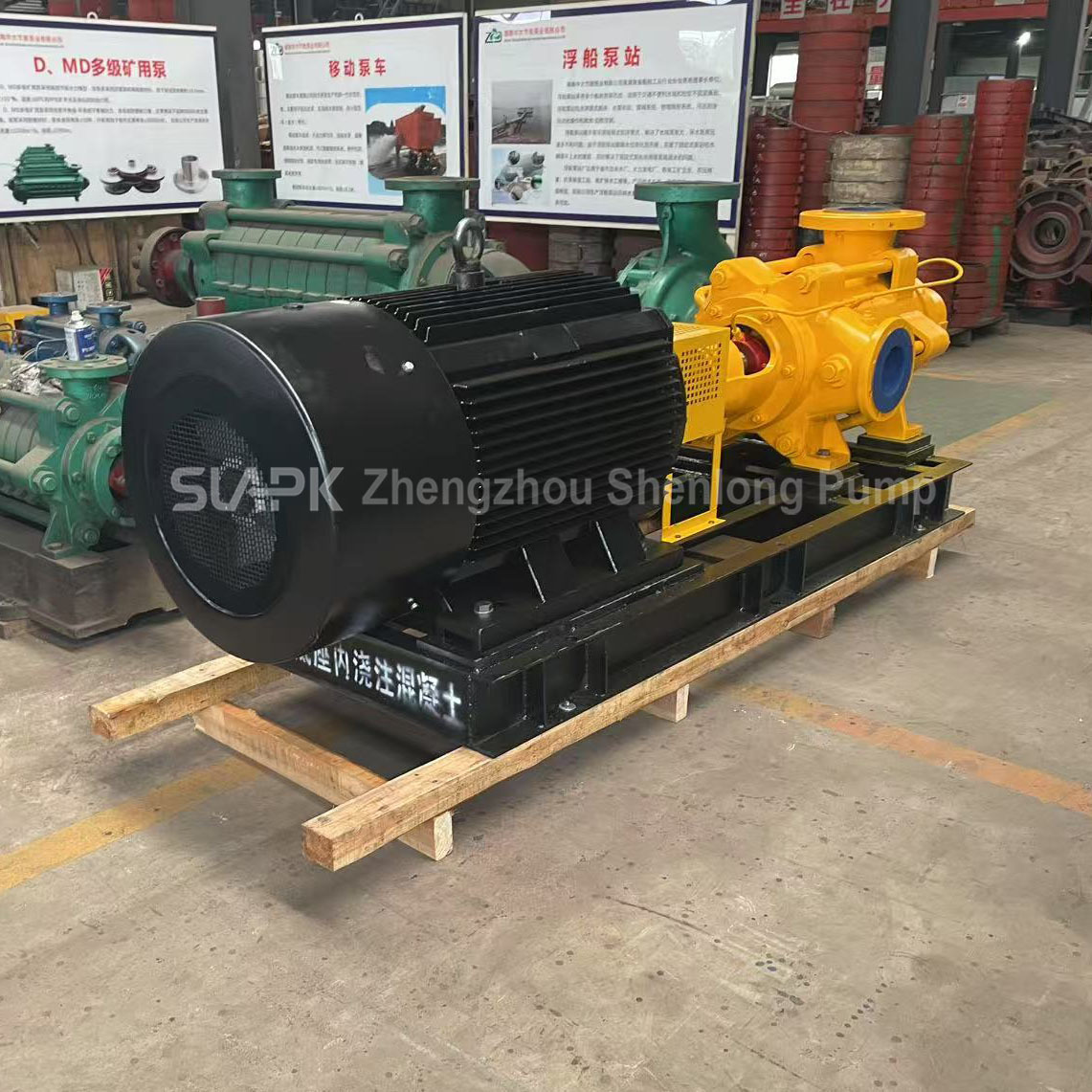

D-type horizontal multistage centrifugal clean water pump High-head industrial water supply pump

Product Description

D-type horizontal multistage centrifugal clean water pump High-head industrial water supply pump

D-type horizontal multistage centrifugal clean water pump introduce:

The D-type horizontal multi-stage centrifugal pump is a single-suction, multi-stage sectional centrifugal pump. It is mainly used in industrial and municipal water supply and drainage, high-rise building pressure-boosting systems, garden sprinkler irrigation, fire protection pressurization, long-distance water transportation, heating systems, bathroom facilities, as well as cold and hot water circulation boosting and equipment (support applications).
 The impeller is made of high-quality cast iron and contains blades. The liquid enters the impeller axially from one side. Due to the unequal pressure on both sides of the impeller, an axial force is inevitably generated. This axial force is borne by the balance disc. The impeller has undergone static balance testing during manufacturing.

The sealing ring is made of cast iron and is designed to prevent high-pressure water from leaking back into the inlet section. It is respectively fixed on the inlet segment and the middle segment.

The balance disc is made of wear-resistant cast iron and is located between the discharge section and the tail cover. Together with the balance ring, it forms the balancing device, which is used to counteract the axial forces.

Zhengzhou Shenlong Pump Industry is a professional manufacturer of multi-stage centrifugal pumps, with more than 40 years of experience in the research, development, and production of multi-stage pumps. The company relies on strong technical capabilities, abundant production experience, and comprehensive testing methods, as well as a professional R&D design team and production technicians.

D-type horizontal multistage centrifugal clean water pump Application

Application Range of D-Type Horizontal Multi-Stage Centrifugal Pump

The D-type horizontal multi-stage centrifugal pump is designed for the efficient transportation of clean water or other media with similar physical and chemical properties to water. It is suitable for liquids within a temperature range of -20°C to 80°C, containing non-soluble solid particles with a maximum volume concentration of 0.1% and particle size not exceeding 2 mm.

Typical applications include:

Municipal water supply and drainage

High-rise building pressurization systems

Garden sprinkler irrigation

Fire protection boosting

Long-distance water transfer

Heating, ventilation, and air conditioning (HVAC) systems

Industrial equipment support systems

D-type horizontal multistage centrifugal clean water pump Structural features

1. Pump Design and Configuration

Single-suction, multi-stage segmented centrifugal pump structure with horizontal or vertical suction port arrangement.

The pump body consists of an inlet section, intermediate sections (configured according to the number of stages), and an outlet section, all connected by tension bolts.

Bearing housings are installed at both ends of the pump, and the number of impeller stages is selected based on the required head.

2. Rotor Assembly

Rotating components include a precision-machined pump shaft, impellers, shaft sleeves, and a balance disc. The number of impellers corresponds to the number of pump stages.

All components are securely fixed to the shaft via keys and locking nuts, ensuring rigidity and integrity of the rotor structure.

3. Bearing and Axial Force Management

The rotor is supported by rolling bearings or sleeve bearings (depending on the model), with bearings not subjected to axial loads.

Axial thrust is counteracted by a durable balance disc system. A visual wear indicator is installed at the pump end for real-time monitoring of the balance disc condition.

D-type horizontal multistage centrifugal clean water pump parameters:

(It is regular submersible pump type in Shenlong pump factory, high temperature and 380v/440v/480v/600v/660v, etc. Please kindly choose submersible pump type you are interested.)

FAQ

Q: What are the sealing methods for D-type pumps? How to choose?

A: Mechanical seal: Suitable for high-temperature, high-pressure or high-precision sealing requirements (such as in the chemical and pharmaceutical industries).

Packing seal: Lower cost, suitable for routine conditions.

Q: Can the inlet and outlet directions of the D-type pump be customized?

A: Yes, the inlet and outlet directions of the D-type pump (horizontal or vertical) can be adjusted according to your actual installation requirements.

Q: How to choose the right type of pump?

A: Provide your working conditions, medium, voltage, and our engineers will recommend the most suitable pump for you. Our email is enquiry02@apkpump.com, our Whatsapp is +86 17537187726.If you have any product requirements, please feel free to contact us.
