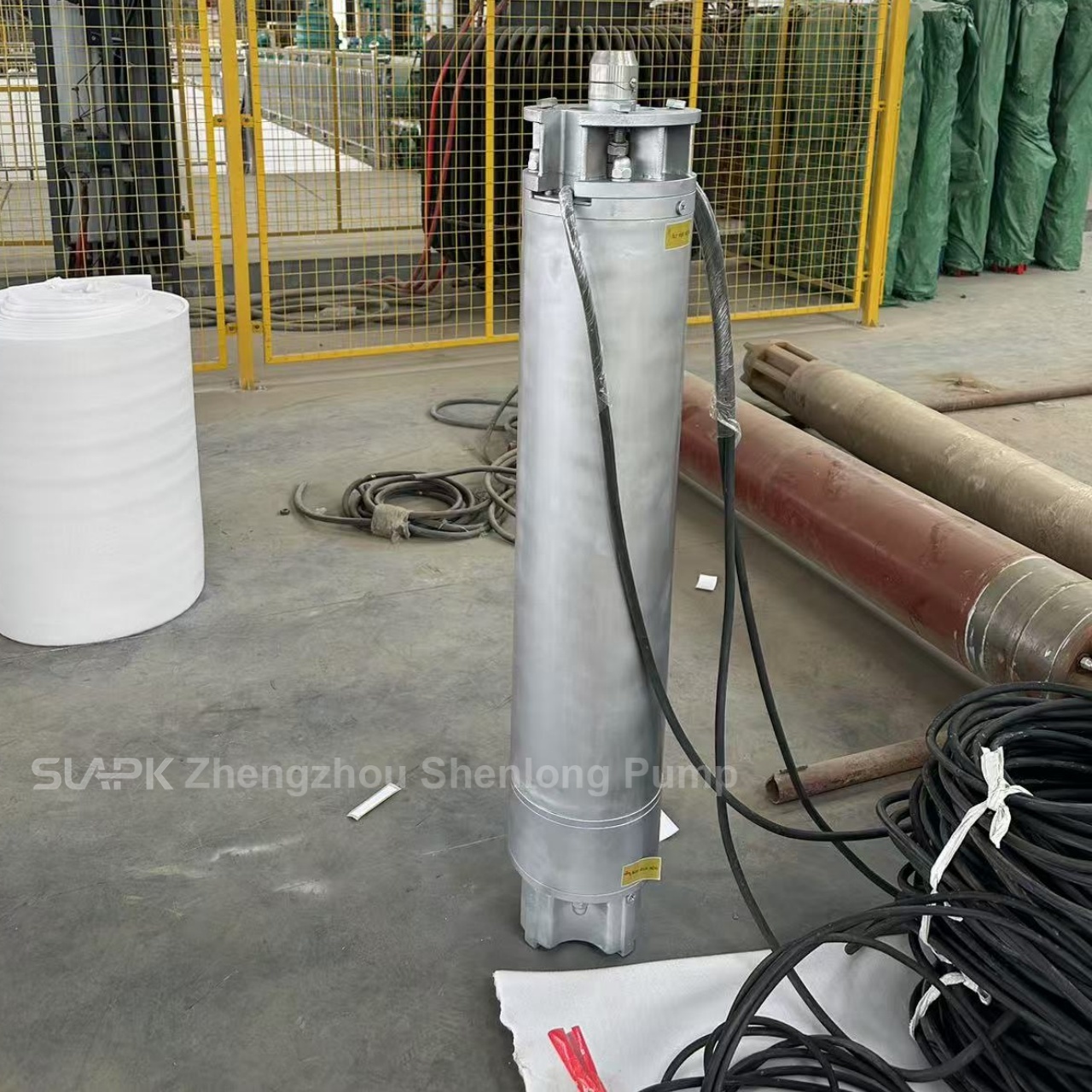

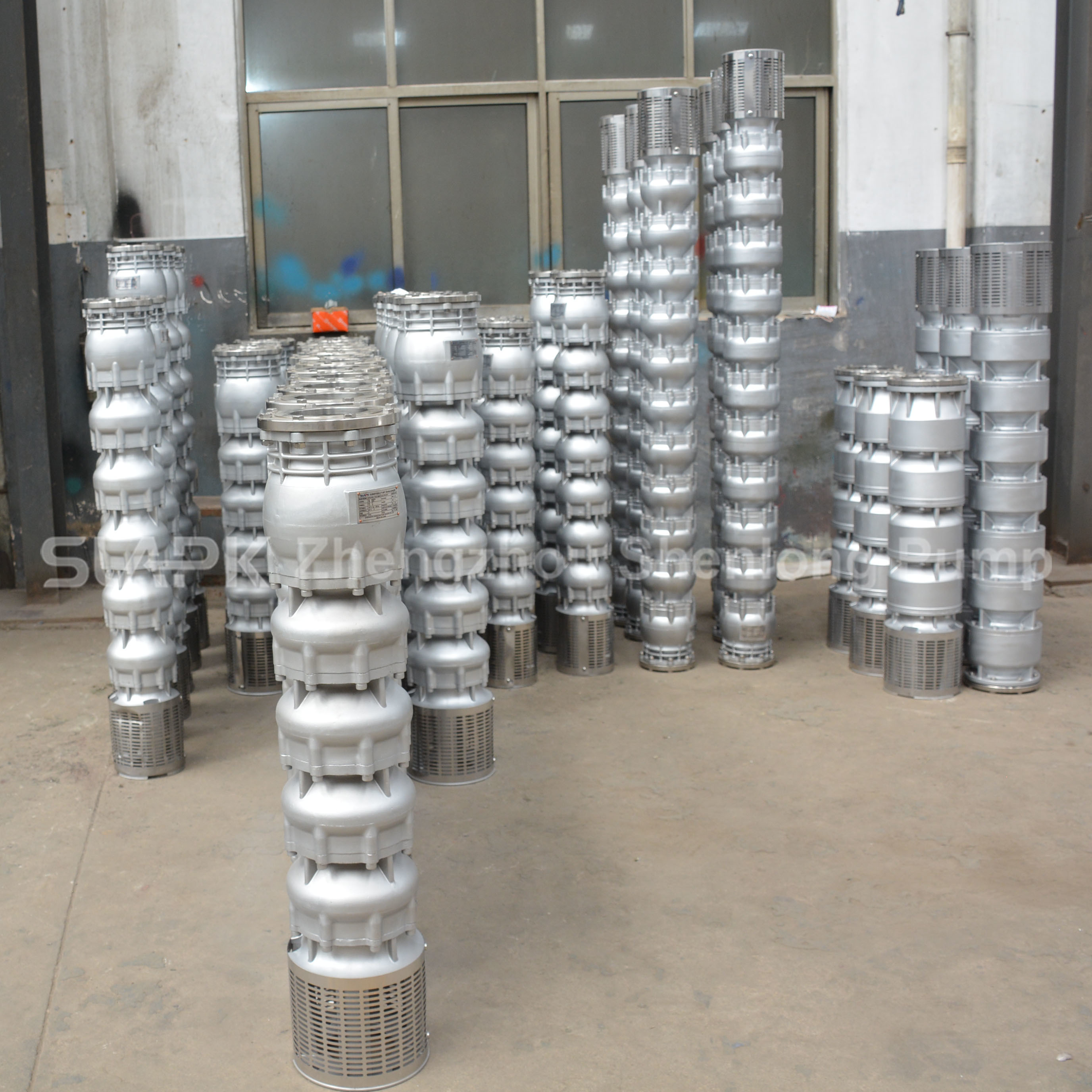

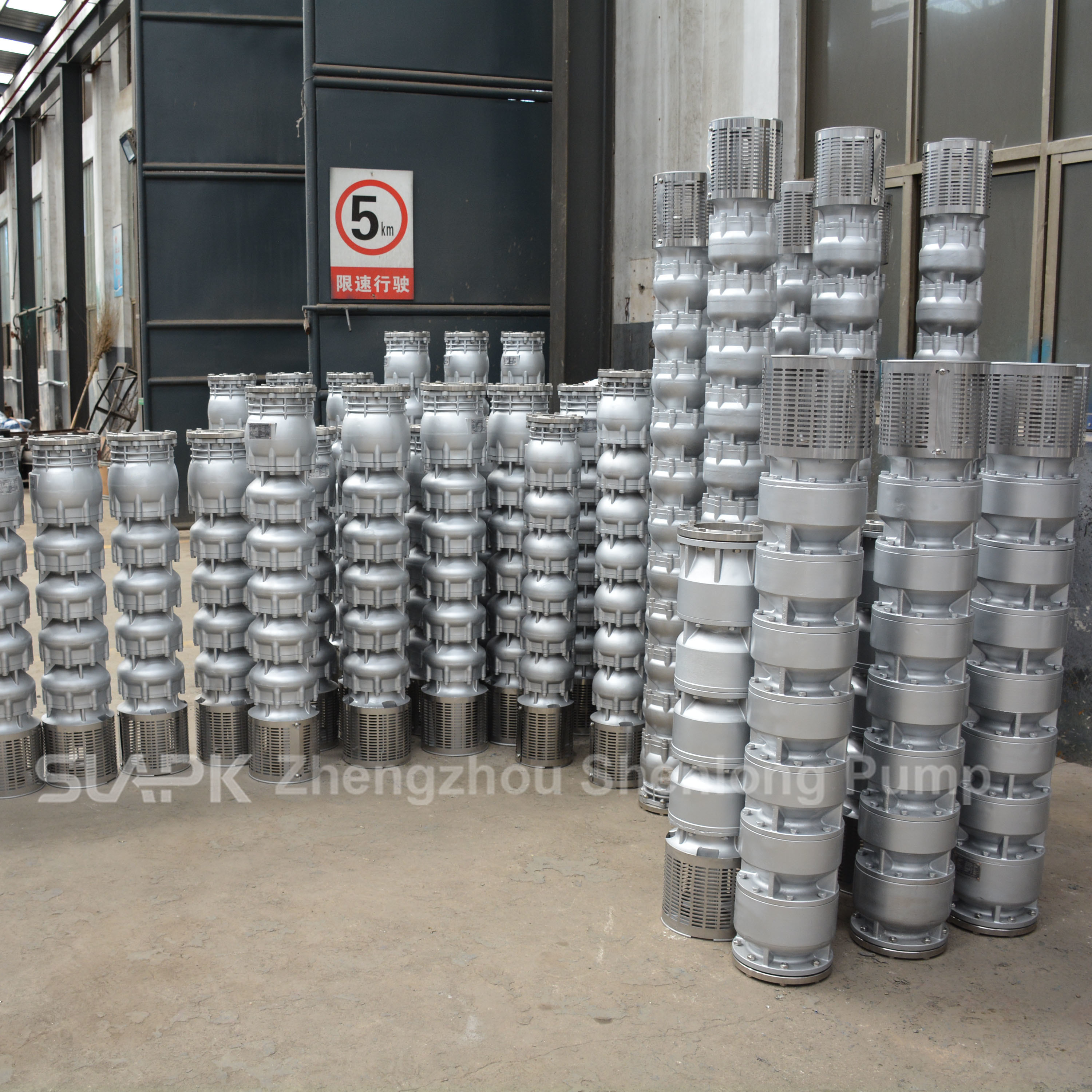

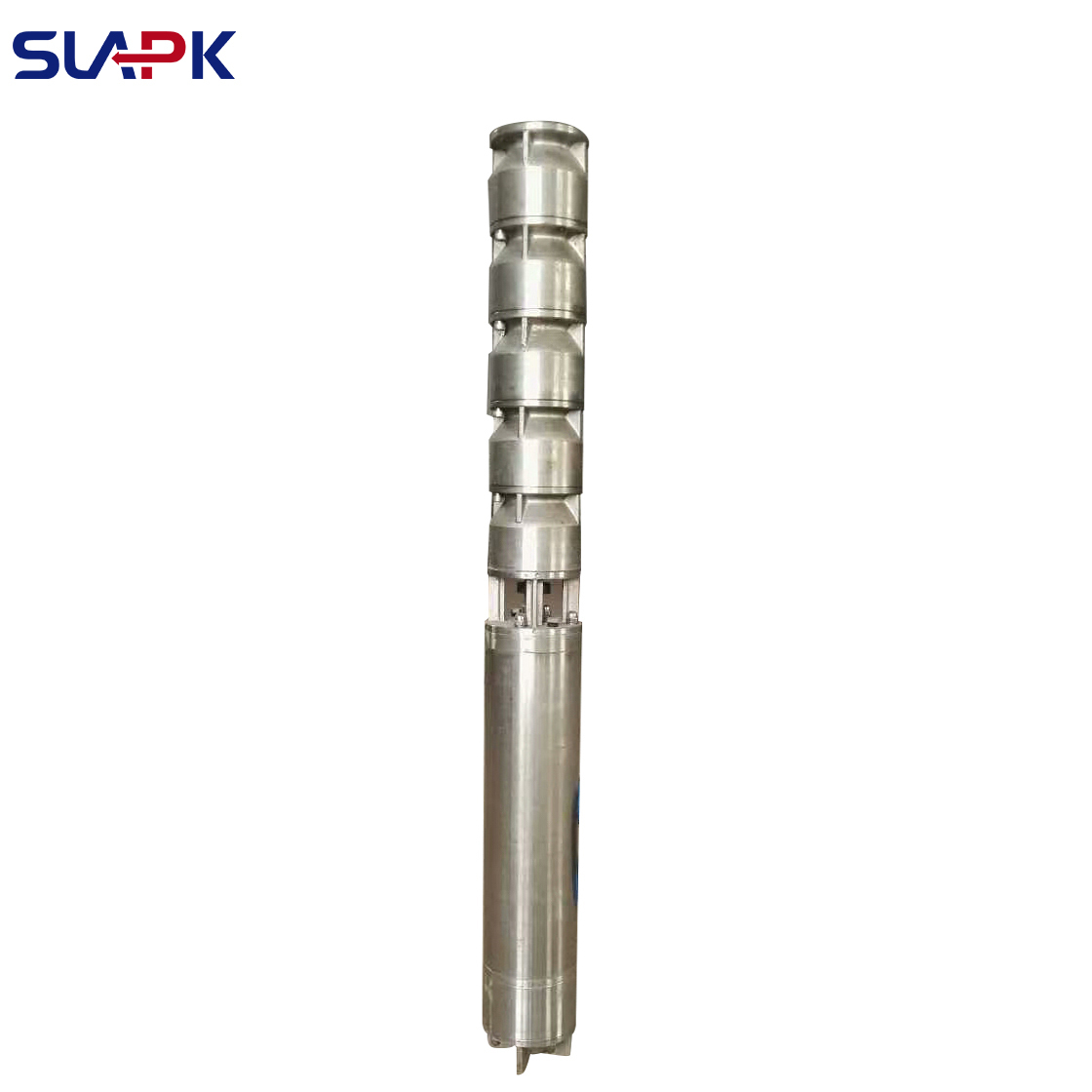

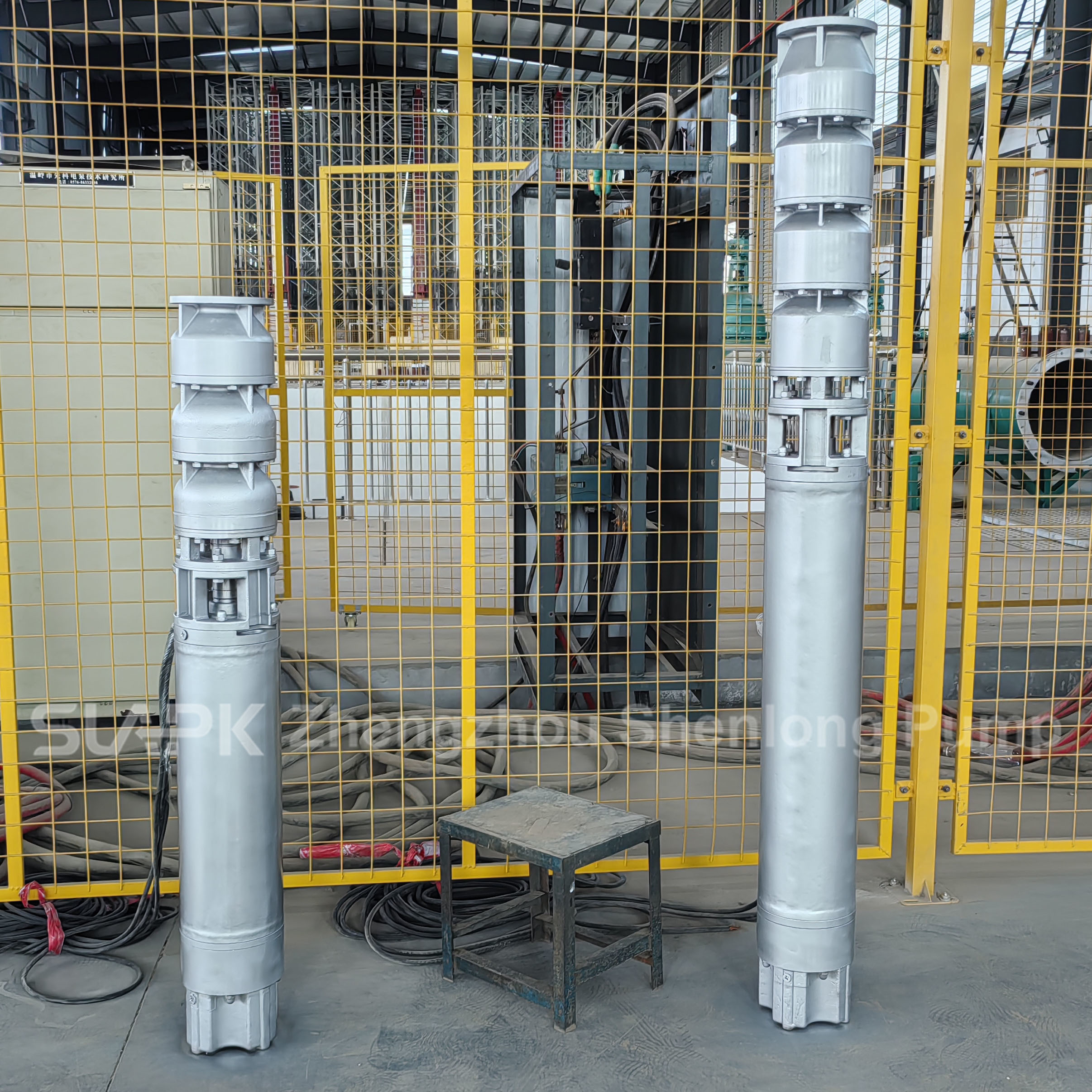

316L Stainless Steel Seawater Submersible Pump 2.2-410kw High-Lift

This series is designed specifically for harsh marine environments. Utilizing ultra-corrosion-resistant 316L stainless steel and incorporating advanced fluid dynamics optimization technology, it delivers high-lift, long-life, and low-energy submersible pump solutions. Widely used in seawater desalination pretreatment, shipbuilding, offshore platforms, deep-sea mining, geothermal development, and other fields, it is an ideal choice for handling complex corrosive media and high-pressure conditions.

• 316L Stainless Steel: The pump body, impeller, and shaft are all stainless steel, resistant to chloride ion corrosion and suitable for seawater and saline media.
• High-lift Design: Single-stage lifts reach 120 meters, with a maximum total lift of 500 meters, meeting deep-sea water extraction requirements.
• Sealing: IP68-rated, with dual mechanical seals and rubber O-rings, ensures long-term, stable underwater operation.

• Power Range: 15kW-250kW
• Voltage: 380V/660V (customizable)
• Frequency: 50Hz/60Hz
• Head Range: 120-500m
• Flow Range: 10-1200m³/h
• Applicable Media: Seawater, saline liquids (sand content ≤ 2%)
• Material: 316L stainless steel, tin bronze, duplex steel (optional)

• Wear-Resistant Design: The impeller features a three-blade structure and wear-resistant sealing rings. It can pump impurities with a sand content of ≤ 2% (particle size < 3mm), making it suitable for applications such as dock water intake and mine drainage.
• Multi-Voltage Compatibility: Supports a variety of power supply configurations, including 380V/460V/660V/1140V/3300V, and is compatible with both land and marine power systems.
• Extreme Environment Certification: IP68 waterproof rating, ExdⅡBT4 explosion-proof rating, and CCS certification are achieved, ensuring stable operation in temperatures ranging from -20°C to 90°C.

Zhengzhou Shenlong Pump Industry Co., Ltd. established in 1996, We are specialized in the RD, Manufacture and Sales of submersible water pumps & spare parts. We provide ODM and OEM customization services to meet the unique needs of our clients.

The main products include deep well submersible pumps, submersible fountain pumps, submersible sewage pumps, pipeline booster pumps, split-case pumps, multistage centrifugal pumps etc, the annual output is more than 110,000 units.
