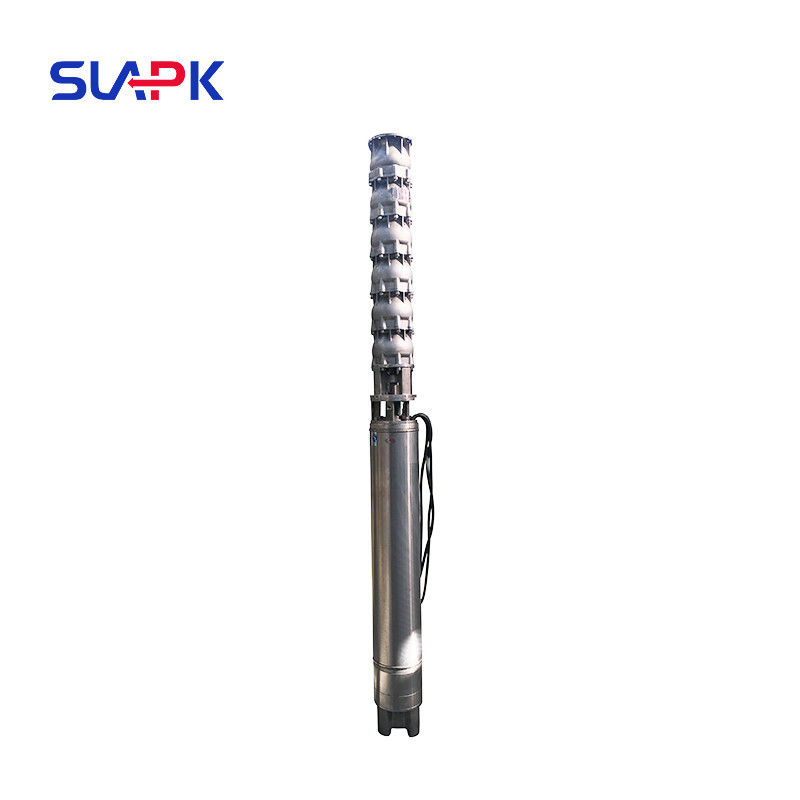

Ultimate Guide to Selecting Stainless Steel Submersible Pumps: Materials & Applications

Material Comparison and Performance Analysis

In the field of industrial fluid handling, the choice of material for a stainless steel submersible pump directly dictates the equipment’s lifespan and operational costs. The current market is dominated by four main materials: 304 Stainless Steel, 316L Stainless Steel, 2205 Duplex Steel, and Super Duplex Steel (2507/2506).

These materials differ significantly in corrosion resistance, mechanical strength, and application scenarios. Below is a detailed breakdown.

1. 304 Stainless Steel: The Standard for Basic Corrosion Protection

304 Stainless Steel (18% Chromium, 8% Nickel) is the most widely used base material. The passive film formed on its surface effectively resists weakly acidic media.

• Case Study: A fruit juice processing plant reported that 304 pumps transporting cleaning wastewater containing citric acid (pH 3.5) operated continuously for 18 months without visible corrosion, extending the maintenance cycle by 3 times compared to cast iron pumps.

• Limitation: 304 is sensitive to chloride ions. It is prone to pitting corrosion when chloride concentration exceeds 200mg/L, making it unsuitable for seawater or high-salinity environments.







2. 316L Stainless Steel: Enhanced Resistance to Chlorine Corrosion

By adding 2-3% Molybdenum, 316L Stainless Steel increases its pitting resistance by more than 3 times compared to 304. It can withstand extreme environments ranging from pH 2 to 12.

• Case Study: At a seawater aquaculture base in Tianjin, a 316L submersible pump has operated in seawater with a chloride concentration of 2000mg/L for 2 years without rusting, improving water exchange efficiency by 15%.

• Ideal Scenarios:

  • Seawater desalination and marine engineering.

  • Sulfur-containing wastewater treatment in chemical parks.

  • Water for Injection (WFI) transport in the pharmaceutical industry.



3. Duplex Steel (2205 / Super Duplex): The Ultimate Solution for Extreme Environments

Duplex steel combines the advantages of austenite and ferrite. 2205 Duplex Steel boasts a yield strength of 450MPa (twice that of 304), while Super Duplex (2507/2506) maintains 90% operating efficiency even in deep-sea environments up to 600 meters.

• Case Study: In a ship bilge drainage project, a 2507 Super Duplex pump operating in a sulfuric acid mist environment (pH 2.0) achieved a lifespan 4 times that of standard 316L, reducing annual maintenance costs by 60%.

• Ideal Scenarios:

  • Deep-sea mining and oil & gas platforms.

  • Concentrated brine evaporation and crystallization systems.

  • High-temperature geothermal well drainage (≤120°C).



Industry-Specific Selection Guide

Municipal Water Supply & Agricultural Irrigation: 304 Stainless Steel (Best Value)

For urban water supply or farmland irrigation, 304 stainless steel is the preferred choice due to its 1.6MPa compressive strength and IP68 protection rating.

• Performance: In a high-standard farmland project in Jiangsu, a 304 pump ran for 5,000 continuous hours in well water with 0.01% sand content, resulting in only 0.02mm of impeller wear.

• Selection Focus:

  • Match the Flow-Head Curve (e.g., Q=50m³/h, H=20m).

  • Motor Insulation Class (Class F allows for temperatures up to 155°C).

  • Auto-coupling installation system (reduces deep-well maintenance difficulty).

Chemical & Pharmaceutical Industry: 316L Stainless Steel (Safety Guarantee)

Acid and alkali wastewater treatment requires strict material standards. A chemical plant using 316L pumps for sulfuric acid wastewater (pH 2.0) achieved 6 months of maintenance-free operation, reducing energy consumption by 18% compared to traditional PVC pumps.

• Key Parameters:

  • Mechanical Seal: Silicon Carbide vs. Silicon Carbide (superior wear resistance).

  • Medium Temperature: 316L is suitable for ≤80°C (Select 2507 Duplex for higher temps).

  • Explosion-Proof Rating: Ex d IIB T4 (essential for solvent environments).

Marine Engineering & Aquaculture: Duplex Steel (Absolute Advantage)

A comparative test at a South China Sea aquaculture base revealed:

• 304: Red rust appeared after 96 hours in salt spray testing.

• 316L: Lasted 720 hours.

• 2205 Duplex: Showed no corrosion after 1000 hours.

• Recommendation: For ocean vessel ballast water systems, Super Duplex is recommended due to:

  • Chloride tolerance up to 50,000mg/L.

  • Fatigue strength 40% higher than 316L.

  • 10-year replacement-free lifespan when paired with sacrificial anodes.



Decision Flowchart & Cost Analysis

The 4-Step Selection Method

1. Media Analysis: Measure the three core parameters: pH value, Chloride ion concentration, and Temperature.

2. Environment Assessment: Check for shock loads or vibration (e.g., ship bilges require resistance to 6-8Hz vibration).

3. Life Cycle Costing: Calculated over a 5-year cycle, Duplex Steel has a 30% higher initial investment but reduces total life cycle costs by 45%.

4. Standard Certification: Ensure compliance with NSF 61 (Food/Water) or DNV (Marine).

Installation, Maintenance & Material Matching

Installation Best Practices

• 304 Stainless Steel: Inspect for surface scratches before installation. Repair with 320-grit polishing paste. Use 304 stainless steel waterproof glands for cable joints.

• 316L Stainless Steel: In chemical environments, install PTFE gaskets to prevent galvanic corrosion caused by contact with dissimilar metals.

• Duplex Steel: Fastening bolts must match the pump material (e.g., 2205 bolts for a 2205 pump body). Torque must be executed to the 80 N·m standard.

Maintenance Cycles

• 304 Pumps: Inspect impeller corrosion every 3 months.

• 316L Pumps: Inspection cycle can be extended to 6 months.

• Duplex Pumps: typically maintenance-free for 12 months under normal conditions.

• Pro Tip: Experience from a petrochemical firm suggests that injecting Food Grade Grease (NLGI Grade 2) every 2,000 hours can extend mechanical seal life by 50%.
