Product Description

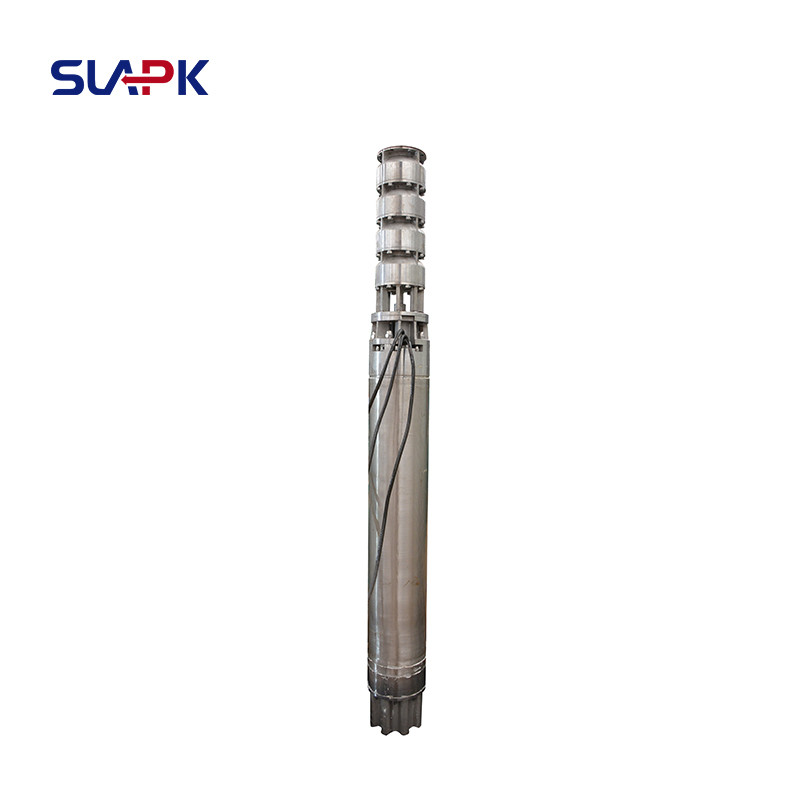

High-Flow Stainless Steel Submersible Pump for Seawater Cooling Systems
In demanding marine and industrial environments, reliable water circulation is critical—especially when it comes to seawater cooling systems. Corrosion, biofouling, and high operational loads pose significant challenges to conventional pumping equipment. That’s where high-flow stainless steel submersible pumps step in as the ultimate solution for efficiency, durability, and long-term performance.
Why Stainless Steel?
Built to Withstand the Harshest Conditions
Seawater is highly corrosive due to its high chloride content. Standard cast iron or carbon steel pumps degrade rapidly, leading to frequent maintenance, system downtime, and increased lifecycle costs. In contrast, marine-grade stainless steel (typically 316L or duplex grades) offers exceptional resistance to saltwater corrosion, pitting, and crevice corrosion.
Key material advantages include:
Full stainless steel wetted parts: Pump casing, motor housing, shaft, and wear rings are all constructed from corrosion-resistant alloys.
Food-grade lubricants: Ensures environmental safety even in sensitive coastal or offshore applications.
Robust mechanical seals: Graphite-ceramic or silicon carbide seals provide leak-proof operation under continuous immersion.
Engineered for High Flow & Continuous Duty
Modern high-flow stainless steel submersible pumps are designed to deliver flow rates up to 280 m³/h with heads reaching 480 meters, making them ideal for large-scale seawater cooling loops in power plants, LNG terminals, offshore platforms, and naval vessels.
Power range: 15 kW to 185 kW (up to 250 HP)
Voltage options: 220V / 380V / 415V, single or three-phase
Motor type: hermetically sealed, with thermal protection
Operating speed: 50 Hz/60 Hz
Outlet size: 8inch 10inch 12inch 14inch 20inch
Submersible well pump parameters:
| Pump diameter |
Model |
Flow Range |
Head Range |
Power |
| Inch (") |
QJ Series |
m3/h |
m |
kw |
| 7" |
175QJ |
9-54m3/h |
19-265m |
2.2-37kw |
| 8" |
200QJ |
13-120m3/h |
12-465m |
2.2-45kw |
| 10" |
250QJ |
46-214m3/h |
16-430m |
5.5-125kw |
| 12" |
300QJ |
186-540m3/h |
14-138m |
18.5-220kw |
| 14" |
350QJ |
233-335m3/h |
18-130m |
30-185kw |
| 16" |
400QJ |
388-540m3/h |
18- 83m |
45-185kw |
| 20" |
500QJ |
600-680m3/h |
26-86m |
90-260kw |
| 24" |
600QJ |
750-1200m3/h |
18-77m |
110-300kw |
Ideal Applications in Seawater Cooling
High-flow stainless steel submersible pumps excel in the following scenarios:
Marine vessel engine cooling systems
Offshore oil & gas platform heat exchangers
Coastal power generation plants (nuclear, thermal, or combined cycle)
Desalination pre-cooling circuits
Industrial process cooling near coastal facilities
Their compact, vertical design allows direct installation in seawater intake wells, sumps, or caissons—eliminating the need for priming and reducing piping complexity.
Energy Efficiency & Smart Integration
Contact Us
Contact us now for pump selection drawings, performance curves, and quotation.
