Deep Well Stainless Steel Submersible Pump for Seawater & Brackish Water

Product Description

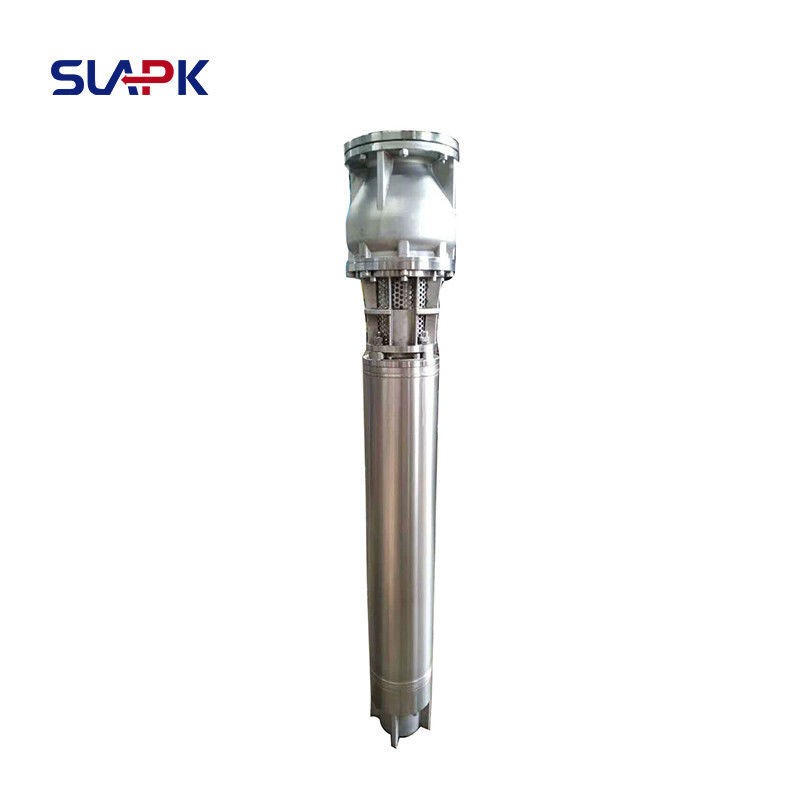

Deep Well Stainless Steel Submersible Pump for Seawater & Brackish Water

Reliable water extraction in coastal, offshore, and arid regions demands pumping solutions that can endure the harsh realities of saline environments. Standard cast iron or carbon steel pumps quickly succumb to corrosion when handling seawater or brackish water—leading to frequent failures, costly repairs, and system downtime.

The answer?

A deep well stainless steel submersible pump, engineered specifically for aggressive saline conditions.

Why Choose Stainless Steel for Saline Water Applications?

Seawater contains high concentrations of chlorides (typically 19,000–20,000 ppm), while brackish water ranges from 1,000 to 10,000 ppm—both far exceeding the tolerance of conventional pump materials. Stainless steel, particularly grade 316L (UNS S31603) or duplex stainless steels (e.g., 2205), provides superior resistance to pitting, crevice corrosion, and stress corrosion cracking.

Key construction features include:

Full 316L stainless steel wetted parts: Casing, motor housing, shaft, and fasteners.

Corrosion-resistant impellers: Often made from reinforced engineering plastics (POM, PC) or bronze alloys for optimal hydraulic efficiency and wear resistance.

Double mechanical seals: Typically silicon carbide/silicon carbide (SiC/SiC) or graphite/ceramic pairs, with oil-lubricated chambers to prevent seawater ingress into the motor.

These design choices ensure decades of trouble-free operation—even in continuous-duty applications.

Optimized for Deep Well Installation

Designed for wells up to 70 meters deep (and some models rated beyond 100m static head), these submersible pumps are ideal for:

Coastal aquifer extraction

Island freshwater supply from brackish lenses

Offshore platform service water systems

Seawater intake for desalination pretreatment

Industrial cooling using subsurface saline sources

The pump is installed vertically inside the well casing, fully submerged below the dynamic water level—eliminating priming issues and reducing surface footprint. No pump house is required, saving space and infrastructure costs.

Technical Performance Highlights

Typical specifications for a modern deep well stainless steel

submersible pump:

Parameter Range / Specification

Flow Rate 5 – 2500 m³/h

Head Up to 680 meters

Voltage 220V / 380V / 415V, 50/60 Hz, 3-phase

Max Fluid Temperature ≤ 40°C (standard); up to 60°C (optional)

Solid Particle Tolerance < 0.01% by weight; particle size < 0.2 mm

pH Range 6.5 – 8.5

Protection Class IP68, hermetically sealed

Insulation Class F or H

Many models comply with international standards such as ISO 9906, GB/T 2816-2002, and IEC 60034 for motors.

Energy Efficiency & Smart Operation

To reduce operational costs, leading manufacturers integrate IE3 or IE4 premium-efficiency motors and support variable frequency drive (VFD) control. This allows the pump to adjust flow based on real-time demand—critical for fluctuating water tables or seasonal usage patterns.

Optional smart features include:

Built-in thermal overload protection

Dry-run prevention sensors

Remote monitoring via Modbus or IoT platforms

Maintenance Tips for Longevity

Even the most robust pump requires basic care:

Run the pump at least once every 2 weeks if not in continuous use to prevent salt crystallization and bearing seizure.

Check insulation resistance (>5 MΩ) before each startup using a megohmmeter.

Replace mechanical seals every 2–3 years in high-salinity environments.

Ensure proper well alignment—crooked casings cause premature wear.


Submersible well pump parameters:


Whether you’re supplying freshwater to a remote island community, supporting an offshore drilling rig, or feeding a reverse osmosis plant, a deep well stainless steel submersible pump delivers unmatched reliability in saline water applications. By combining marine-grade materials, precision hydraulics, and intelligent controls, it turns one of engineering’s toughest challenges into a seamless solution.
