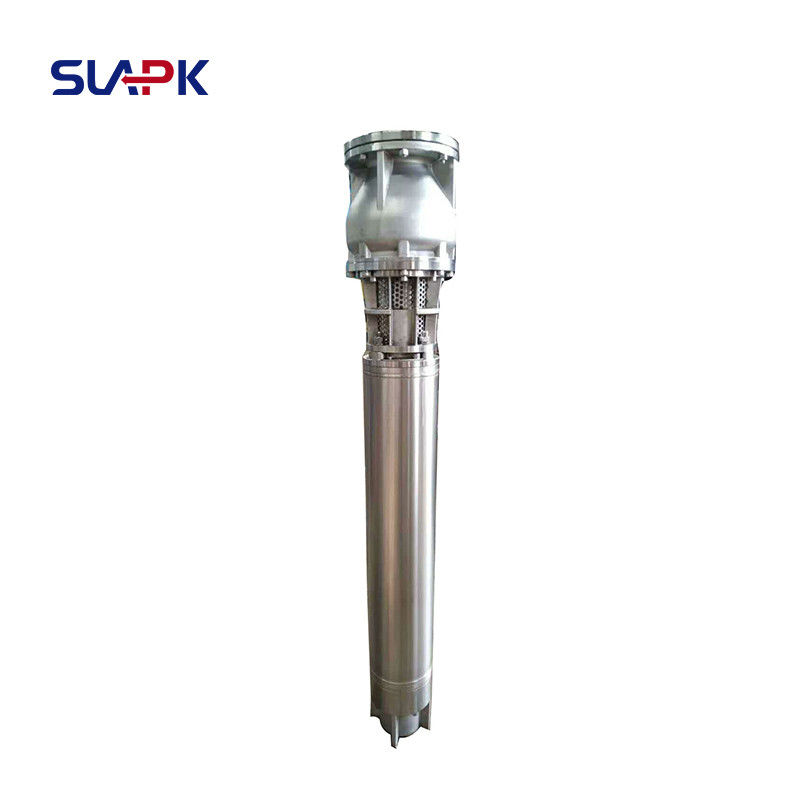

Deep Well Stainless Steel Submersible Pump for Seawater & Brackish Water
Reliable water extraction in coastal, offshore, and arid regions demands pumping solutions that can endure the harsh realities of saline environments. Standard cast iron or carbon steel pumps quickly succumb to corrosion when handling seawater or brackish water, leading to frequent failures, costly repairs, and system downtime.
Superior Corrosion Resistance for Saline Applications
Seawater contains high concentrations of chlorides (typically 19,000-20,000 ppm), while brackish water ranges from 1,000 to 10,000 ppm—both far exceeding the tolerance of conventional pump materials. Stainless steel, particularly grade 316L (UNS S31603) or duplex stainless steels (e.g., 2205), provides superior resistance to pitting, crevice corrosion, and stress corrosion cracking.
Key Construction Features
- Full 316L stainless steel wetted parts: Casing, motor housing, shaft, and fasteners
- Corrosion-resistant impellers made from reinforced engineering plastics (POM, PC) or bronze alloys for optimal hydraulic efficiency and wear resistance
- Double mechanical seals with silicon carbide/silicon carbide (SiC/SiC) or graphite/ceramic pairs, featuring oil-lubricated chambers to prevent seawater ingress into the motor
Optimized for Deep Well Installation
Designed for wells up to 70 meters deep (with some models rated beyond 100m static head), these submersible pumps are ideal for:
- Coastal aquifer extraction
- Island freshwater supply from brackish lenses
- Offshore platform service water systems
- Seawater intake for desalination pretreatment
- Industrial cooling using subsurface saline sources
The pump is installed vertically inside the well casing, fully submerged below the dynamic water level—eliminating priming issues and reducing surface footprint. No pump house is required, saving space and infrastructure costs.
Technical Performance Specifications
Typical specifications for modern deep well stainless steel submersible pumps:
Flow Rate: 5 - 2500 m³/h
Head: Up to 680 meters
Voltage: 220V / 380V / 415V, 50/60 Hz, 3-phase
Max Fluid Temperature: ≤ 40°C (standard); up to 60°C (optional)
Solid Particle Tolerance: < 0.01% by weight; particle size < 0.2 mm
pH Range: 6.5 - 8.5
Protection Class: IP68, hermetically sealed
Insulation Class: F or H
Many models comply with international standards including ISO 9906, GB/T 2816-2002, and IEC 60034 for motors.
Energy Efficiency & Smart Operation
Leading manufacturers integrate IE3 or IE4 premium-efficiency motors and support variable frequency drive (VFD) control, allowing the pump to adjust flow based on real-time demand—critical for fluctuating water tables or seasonal usage patterns.
Optional Smart Features
- Built-in thermal overload protection
- Dry-run prevention sensors
- Remote monitoring via Modbus or IoT platforms
Submersible Well Pump Technical Parameters
| Pump Diameter |
Model |
Flow Range |
Head Range |
Power |
| 7" |
175QJ |
9-54 m³/h |
19-265 m |
2.2-37 kw |
| 8" |
200QJ |
13-120 m³/h |
12-465 m |
2.2-45 kw |
| 10" |
250QJ |
46-214 m³/h |
16-430 m |
5.5-125 kw |
| 12" |
300QJ |
186-540 m³/h |
14-138 m |
18.5-220 kw |
| 14" |
350QJ |
233-335 m³/h |
18-130 m |
30-185 kw |
| 16" |
400QJ |
388-540 m³/h |
18-83 m |
45-185 kw |
| 20" |
500QJ |
600-680 m³/h |
26-86 m |
90-260 kw |
| 24" |
600QJ |
750-1200 m³/h |
18-77 m |
110-300 kw |
Maintenance Tips for Longevity
- Run the pump at least once every 2 weeks if not in continuous use to prevent salt crystallization and bearing seizure
- Check insulation resistance (>5 MΩ) before each startup using a megohmmeter
- Replace mechanical seals every 2-3 years in high-salinity environments
- Ensure proper well alignment—crooked casings cause premature wear
Whether supplying freshwater to remote island communities, supporting offshore drilling rigs, or feeding reverse osmosis plants, deep well stainless steel submersible pumps deliver unmatched reliability in saline water applications. By combining marine-grade materials, precision hydraulics, and intelligent controls, they provide seamless solutions for challenging engineering applications.
