Stainless Steel Submersible Seawater Pump with Multistage High-Head Design and Customizable Configurations

MOQ: 1 piece
Price: Please feel free to contact us
Standard Packaging: Deep well submersible pump is packed with wooden case or 20 inch container.
Delivery Period: 2-5 working days
Payment Method: L/C,D/A,D/P,T/T,Western Union,
Supply Capacity: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Henan, China
Brand Name
SLAPK
Certification
ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER
Model Number
QJH
Head:
25-700m
Voltage:
380v 420v 660v Or As Per Request
Pump Size:
7 8 10 12 14 Inch Submersible Well Pump
Power:
15hp 20hp 30hp 40hp Submersible Water Pump
Quality Warranty:
One Year Or More
Material:
Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904
Frequency:
3 Phase 60hz/50hz
Flow:
15 M3/h-2500 M3/h
Install:
Vertical
Highlight:

stainless steel submersible seawater pump

,

seawater intake transfer pump

,

submersible pump for seawater

Product Description
Stainless Steel Submersible Seawater Pump for Seawater Intake and Transfer
The stainless steel submersible seawater pump is designed for seawater intake, saltwater transfer and coastal water supply applications. The pump and submersible motor form an integrated unit that operates directly underwater, making it suitable for seawater desalination plants, ports, aquaculture facilities, offshore projects and coastal industrial systems.
Depending on the water chemistry and operating conditions, the pump can be manufactured in SS316L, duplex stainless steel 2205 or super duplex stainless steel 2507. Flow rate, head, power, voltage, frequency, cable length and installation method can be customized according to project requirements.
Product Overview

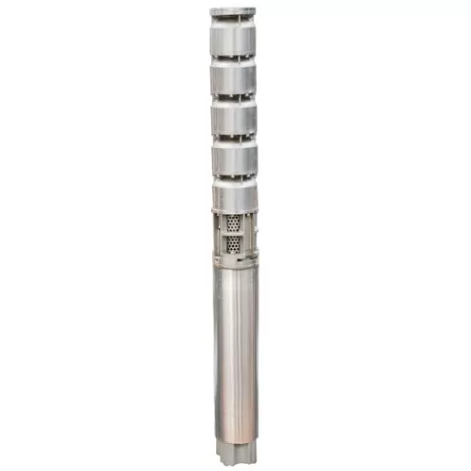

The QJH stainless steel submersible seawater pump uses a multistage centrifugal design. Water passes through multiple impellers, with pressure increasing at each stage. This structure makes the pump suitable for projects requiring high head, deep installation or long-distance water transfer.
The pump and motor are directly connected, eliminating the need for a long transmission shaft or a complicated suction pipeline. The complete unit can be installed vertically in a seawater well, intake chamber or collection tank. Selected models can also be installed horizontally with a properly designed motor cooling sleeve.
Available Technical Configurations
  • Pump type: Multistage submersible seawater pump
  • Pump series: QJH series
  • Pumped liquid: Seawater, saltwater and other compatible corrosive liquids
  • Available materials: SS316L, duplex stainless steel 2205 and super duplex stainless steel 2507
  • Installation: Vertical submersible installation or horizontal installation with a cooling sleeve
  • Power supply: Three-phase AC
  • Frequency: 50 Hz or 60 Hz
  • Available voltage: 380 V, 400 V, 415 V, 440 V, 460 V, 660 V, 690 V or customized voltage
  • Discharge connection: Flanged outlet
  • Cable length: Customized according to installation depth
  • Starting method: Direct-on-line, soft starter or variable-frequency drive
The required flow rate, head, motor power, discharge diameter and pump dimensions should be determined according to the actual intake capacity, elevation difference, pipeline losses and water conditions.
Main Product Features
Corrosion-Resistant Construction
Hydraulic components manufactured from SS316L, duplex stainless steel 2205 or super duplex stainless steel 2507 to reduce pitting, crevice corrosion and premature deterioration in seawater environments.
Multistage High-Head Design
Multiple impellers operate in series to increase discharge pressure, suitable for deep seawater extraction and long-distance pipeline transfer.
Integrated Pump and Motor
Compact pumping unit with direct connection between pump and submersible motor, simplifying installation in wells and intake structures.
Customized for Project Conditions
Pump materials, motor power, cable length, seals and control panels selected according to seawater temperature, salinity and operating requirements.
Factory Performance Testing
Pre-shipment testing to verify flow rate, head, power consumption, current, vibration and sealing performance according to project specifications.
Typical Applications
  • Seawater intake for desalination plants
  • Reverse osmosis pretreatment systems
  • Port and coastal engineering projects
  • Offshore platform water intake
  • Marine and shipboard auxiliary systems
  • Seawater supply for aquaculture
  • Coastal industrial cooling systems
  • Island water supply projects
  • Saltwater and brackish water transfer
  • Seawater wells and beach filtration wells
Stainless Steel Material Selection
Material Applications Key Features
SS316L Stainless Steel Certain saltwater and seawater conditions Suitability depends on chloride concentration, temperature, flow velocity and operating period
Duplex Stainless Steel 2205 Coastal intake and saltwater transfer projects Higher mechanical strength and better resistance to chloride-induced corrosion
Super Duplex Stainless Steel 2507 High-salinity water and demanding marine projects Stronger resistance to pitting and crevice corrosion
Material selection should not be based only on the general description of "seawater." The complete water analysis, operating temperature, duty cycle and expected service life should also be evaluated.
Information Required for Pump Selection
  1. Required flow rate in m³/h
  2. Required head in meters
  3. Pipeline length and diameter
  4. Number of valves, elbows and fittings
  5. Seawater temperature and water analysis
  6. Sand or solid particle content
  7. Installation depth and well diameter
  8. Voltage, frequency and number of phases
  9. Daily operating time and starting frequency
  10. Required material and installation method
This multistage pump is intended primarily for relatively clean seawater or saltwater. If the liquid contains large quantities of sand, fibers or solid particles, a pump designed for abrasive or wastewater service should be selected.
Installation and Maintenance
Before installation, inspect the cable, insulation resistance, fasteners, lifting equipment and electrical connections. Never lift or suspend the pump by its power cable.
During operation, the pump should remain at the specified submerged depth. Voltage, current, flow rate and discharge pressure should be monitored regularly. For horizontal installation, an appropriately designed cooling sleeve may be required to maintain sufficient water flow around the motor.
In seawater service, the impellers, diffusers, shaft, fasteners, cable and sealing areas should be inspected according to the maintenance schedule. If the pump will remain unused for an extended period, freshwater flushing and appropriate corrosion protection are recommended.
Frequently Asked Questions
Can this pump operate directly in seawater?
Yes. However, the material must be selected according to the salinity, chloride concentration, temperature and operating time. Duplex 2205 or super duplex 2507 should be evaluated for long-term or demanding seawater service.
Can it be used in a seawater desalination plant?
Yes. It can be used for raw seawater intake or water transfer within a desalination pretreatment system. The final model depends on the required flow, head, pipeline losses and water quality.
Is a 60 Hz motor available?
Yes. Both 50 Hz and 60 Hz motors are available. Voltages such as 440 V, 460 V and 690 V can also be supplied according to project requirements.
Can the pump be installed horizontally?
Selected models can be installed horizontally with a cooling sleeve. The design must ensure sufficient water movement around the motor for effective cooling.
How can I obtain an accurate quotation?
Please provide the required flow, head, voltage, frequency, installation depth, water analysis, material preference and order quantity. A suitable pump model and technical quotation can then be prepared.
Request Pump Selection and Quotation
We provide stainless steel submersible seawater pump selection support for desalination plants, port projects, aquaculture facilities, offshore engineering and coastal industrial applications. Send us your operating parameters and water analysis to receive a suitable technical solution and quotation.
Tags:

submersible sea water pump,

submersible pump for seawater,

sea water submersible pump

Recommended Products
Vertical Sea Water Submersible Pump Stainless Steel Submersible Pump Corrosive Resistant video

Vertical Sea Water Submersible Pump Stainless Steel Submersible Pump Corrosive Resistant

Contact Now
316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater video

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater

Contact Now
60m3/h 150m3/h Electric Sewage Stainless Steel Submersible Pump video

60m3/h 150m3/h Electric Sewage Stainless Steel Submersible Pump

Contact Now
160m3/h 30m 10 Inch Seawater Stainless Steel Submersible Pump video

160m3/h 30m 10 Inch Seawater Stainless Steel Submersible Pump

Contact Now
7.5kw - 410kw SS Sea Water Submersible Pump , Submersible Well Water Pump video

7.5kw - 410kw SS Sea Water Submersible Pump , Submersible Well Water Pump

Contact Now
300QJH-300-62-75KW Stainless Steel Submersible Well Pump with 300 m³/h Flow and 62m Head for Corrosion-Resistant Industrial Water Transfer video

300QJH-300-62-75KW Stainless Steel Submersible Well Pump with 300 m³/h Flow and 62m Head for Corrosion-Resistant Industrial Water Transfer

Contact Now
6 Inch Duplex Stainless Steel 2205 Deep Well Submersible Pump with 15 m³/h Flow and 180m Head video

6 Inch Duplex Stainless Steel 2205 Deep Well Submersible Pump with 15 m³/h Flow and 180m Head

Contact Now
Products
PRODUCTS DETAILS
Products

Submersible Water Pumps

Stainless Steel Submersible Pump

Bottom Suction Submersible Pump

Electric Submersible Pump

Submersible Sewage Pump

Submersible Seawater Pump

Slurry Submersible Pump

Submersible Fountain Pump

Hot Water Submersible Pump

Mine Submersible Pump

Submersible Turbine Pump

Axial Flow Pump

Horizontal Split Case Pump

Booster Pump

Horizontal Multistage Centrifugal Pump

Vertical Submerged Pump
name
  • name
  • name
  • name
  • name
  • name
  • name
Stainless Steel Submersible Seawater Pump with Multistage High-Head Design and Customizable Configurations
MOQ: 1 piece
Price: Please feel free to contact us
Standard Packaging: Deep well submersible pump is packed with wooden case or 20 inch container.
Delivery Period: 2-5 working days
Payment Method: L/C,D/A,D/P,T/T,Western Union,
Supply Capacity: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Henan, China
Brand Name
SLAPK
Certification
ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER
Model Number
QJH
Head:
25-700m
Voltage:
380v 420v 660v Or As Per Request
Pump Size:
7 8 10 12 14 Inch Submersible Well Pump
Power:
15hp 20hp 30hp 40hp Submersible Water Pump
Quality Warranty:
One Year Or More
Material:
Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904
Frequency:
3 Phase 60hz/50hz
Flow:
15 M3/h-2500 M3/h
Install:
Vertical
Minimum Order Quantity:
1 piece
Price:
Please feel free to contact us
Packaging Details:
Deep well submersible pump is packed with wooden case or 20 inch container.
Delivery Time:
2-5 working days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,
Supply Ability:
10000 pieces per month
Highlight

stainless steel submersible seawater pump

,

seawater intake transfer pump

,

submersible pump for seawater

Product Description
Stainless Steel Submersible Seawater Pump for Seawater Intake and Transfer
The stainless steel submersible seawater pump is designed for seawater intake, saltwater transfer and coastal water supply applications. The pump and submersible motor form an integrated unit that operates directly underwater, making it suitable for seawater desalination plants, ports, aquaculture facilities, offshore projects and coastal industrial systems.
Depending on the water chemistry and operating conditions, the pump can be manufactured in SS316L, duplex stainless steel 2205 or super duplex stainless steel 2507. Flow rate, head, power, voltage, frequency, cable length and installation method can be customized according to project requirements.
Product Overview
The QJH stainless steel submersible seawater pump uses a multistage centrifugal design. Water passes through multiple impellers, with pressure increasing at each stage. This structure makes the pump suitable for projects requiring high head, deep installation or long-distance water transfer.
The pump and motor are directly connected, eliminating the need for a long transmission shaft or a complicated suction pipeline. The complete unit can be installed vertically in a seawater well, intake chamber or collection tank. Selected models can also be installed horizontally with a properly designed motor cooling sleeve.
Available Technical Configurations
  • Pump type: Multistage submersible seawater pump
  • Pump series: QJH series
  • Pumped liquid: Seawater, saltwater and other compatible corrosive liquids
  • Available materials: SS316L, duplex stainless steel 2205 and super duplex stainless steel 2507
  • Installation: Vertical submersible installation or horizontal installation with a cooling sleeve
  • Power supply: Three-phase AC
  • Frequency: 50 Hz or 60 Hz
  • Available voltage: 380 V, 400 V, 415 V, 440 V, 460 V, 660 V, 690 V or customized voltage
  • Discharge connection: Flanged outlet
  • Cable length: Customized according to installation depth
  • Starting method: Direct-on-line, soft starter or variable-frequency drive
The required flow rate, head, motor power, discharge diameter and pump dimensions should be determined according to the actual intake capacity, elevation difference, pipeline losses and water conditions.
Main Product Features
Corrosion-Resistant Construction
Hydraulic components manufactured from SS316L, duplex stainless steel 2205 or super duplex stainless steel 2507 to reduce pitting, crevice corrosion and premature deterioration in seawater environments.
Multistage High-Head Design
Multiple impellers operate in series to increase discharge pressure, suitable for deep seawater extraction and long-distance pipeline transfer.
Integrated Pump and Motor
Compact pumping unit with direct connection between pump and submersible motor, simplifying installation in wells and intake structures.
Customized for Project Conditions
Pump materials, motor power, cable length, seals and control panels selected according to seawater temperature, salinity and operating requirements.
Factory Performance Testing
Pre-shipment testing to verify flow rate, head, power consumption, current, vibration and sealing performance according to project specifications.
Typical Applications
  • Seawater intake for desalination plants
  • Reverse osmosis pretreatment systems
  • Port and coastal engineering projects
  • Offshore platform water intake
  • Marine and shipboard auxiliary systems
  • Seawater supply for aquaculture
  • Coastal industrial cooling systems
  • Island water supply projects
  • Saltwater and brackish water transfer
  • Seawater wells and beach filtration wells
Stainless Steel Material Selection
Material Applications Key Features
SS316L Stainless Steel Certain saltwater and seawater conditions Suitability depends on chloride concentration, temperature, flow velocity and operating period
Duplex Stainless Steel 2205 Coastal intake and saltwater transfer projects Higher mechanical strength and better resistance to chloride-induced corrosion
Super Duplex Stainless Steel 2507 High-salinity water and demanding marine projects Stronger resistance to pitting and crevice corrosion
Material selection should not be based only on the general description of "seawater." The complete water analysis, operating temperature, duty cycle and expected service life should also be evaluated.
Information Required for Pump Selection
  1. Required flow rate in m³/h
  2. Required head in meters
  3. Pipeline length and diameter
  4. Number of valves, elbows and fittings
  5. Seawater temperature and water analysis
  6. Sand or solid particle content
  7. Installation depth and well diameter
  8. Voltage, frequency and number of phases
  9. Daily operating time and starting frequency
  10. Required material and installation method

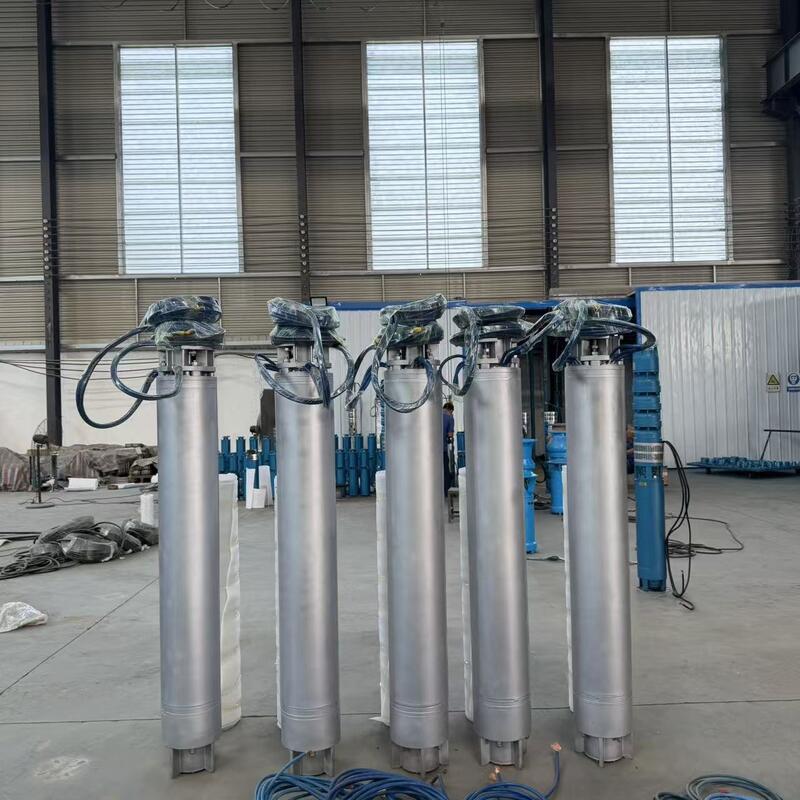

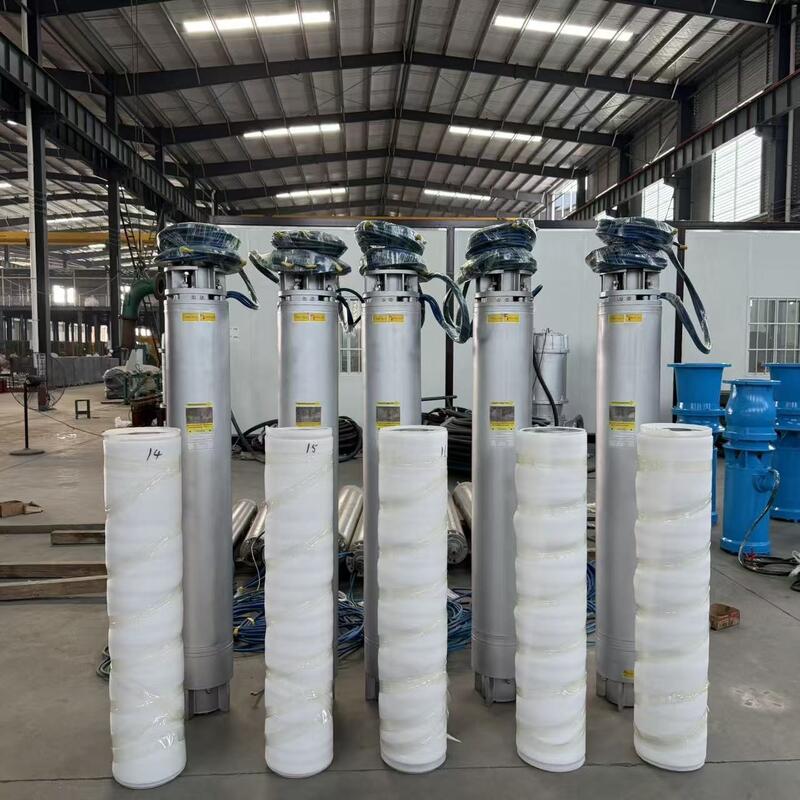

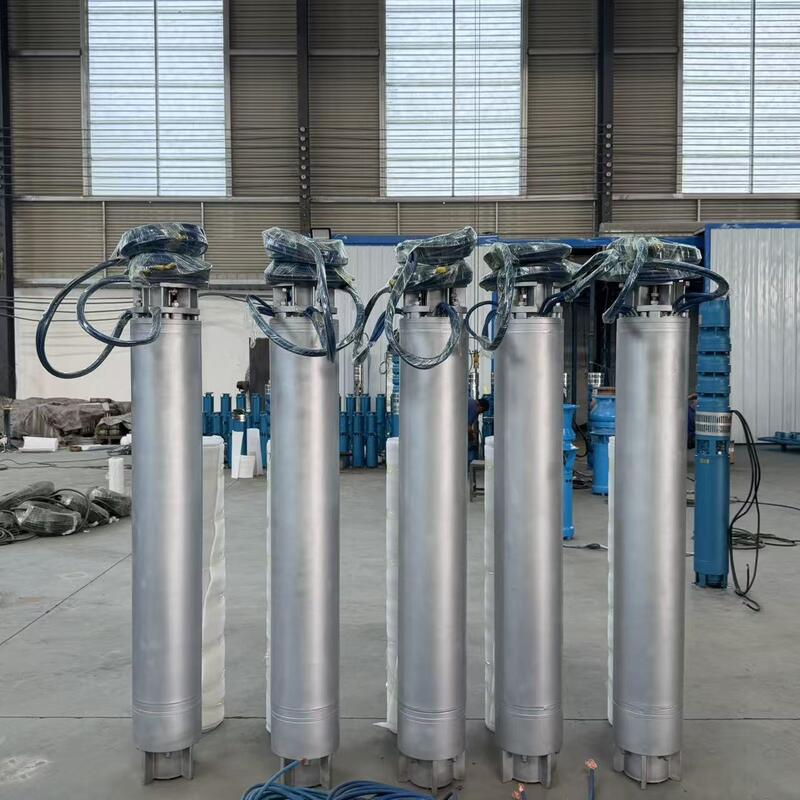

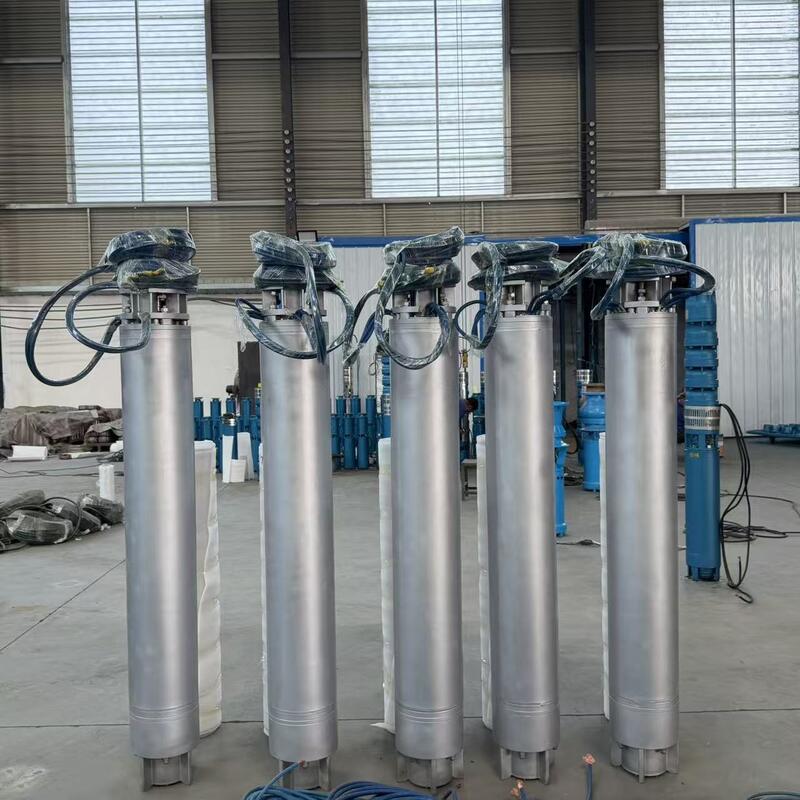

This multistage pump is intended primarily for relatively clean seawater or saltwater. If the liquid contains large quantities of sand, fibers or solid particles, a pump designed for abrasive or wastewater service should be selected.
Installation and Maintenance
Before installation, inspect the cable, insulation resistance, fasteners, lifting equipment and electrical connections. Never lift or suspend the pump by its power cable.
During operation, the pump should remain at the specified submerged depth. Voltage, current, flow rate and discharge pressure should be monitored regularly. For horizontal installation, an appropriately designed cooling sleeve may be required to maintain sufficient water flow around the motor.
In seawater service, the impellers, diffusers, shaft, fasteners, cable and sealing areas should be inspected according to the maintenance schedule. If the pump will remain unused for an extended period, freshwater flushing and appropriate corrosion protection are recommended.
Frequently Asked Questions
Can this pump operate directly in seawater?
Yes. However, the material must be selected according to the salinity, chloride concentration, temperature and operating time. Duplex 2205 or super duplex 2507 should be evaluated for long-term or demanding seawater service.
Can it be used in a seawater desalination plant?
Yes. It can be used for raw seawater intake or water transfer within a desalination pretreatment system. The final model depends on the required flow, head, pipeline losses and water quality.
Is a 60 Hz motor available?
Yes. Both 50 Hz and 60 Hz motors are available. Voltages such as 440 V, 460 V and 690 V can also be supplied according to project requirements.
Can the pump be installed horizontally?
Selected models can be installed horizontally with a cooling sleeve. The design must ensure sufficient water movement around the motor for effective cooling.
How can I obtain an accurate quotation?
Please provide the required flow, head, voltage, frequency, installation depth, water analysis, material preference and order quantity. A suitable pump model and technical quotation can then be prepared.
Request Pump Selection and Quotation
We provide stainless steel submersible seawater pump selection support for desalination plants, port projects, aquaculture facilities, offshore engineering and coastal industrial applications. Send us your operating parameters and water analysis to receive a suitable technical solution and quotation.
Tags:

submersible sea water pump,

submersible pump for seawater,

sea water submersible pump

Zhengzhou Shenlong Pump Industry CO.,Ltd
E-commerce Industrial Park, High-tech Zone, Zhengzhou City, Henan Province, China
Tel: 86 17537187726
Sitemap |  Privacy Policy | China Good Quality Submersible Water Pumps Supplier. Copyright © 2018-2026 Zhengzhou Shenlong Pump Industry CO.,Ltd . All Rights Reserved.
