55KW Stainless Steel Submersible Well Pump with 40 m³/h Flow for Deep Well Applications

55KW Submersible Well Pump

Stainless Steel Submersible Well Pump

40 m³/h Flow Submersible Well Pump

Place of Origin:

Henan, China

Brand Name:

SLAPK

Certification:

ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER

Model Number:

QJH

Request A Quote

Product Details

Voltage:

380v 420v 660v Or As Per Request

Flow:

15 M3/h-2500 M3/h

Pump Size:

7 8 10 12 14 Inch Submersible Well Pump

Frequency:

3 Phase 60hz/50hz

Head:

25-700m

Material:

Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904

Install:

Vertical

Power:

15hp 20hp 30hp 40hp Submersible Water Pump

Quality Warranty:

One Year Or More

Highlight:

55KW Submersible Well Pump

Stainless Steel Submersible Well Pump

40 m³/h Flow Submersible Well Pump

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please feel free to contact us

Packaging Details

Deep well submersible pump is packed with wooden case or 20 inch container.

Delivery Time

2-5 working days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

10000 pieces per month

167m³/h Flow 40m Head Stainless Steel Submersible Pump for Deep Well and Borehole Applications

Get Best Price

video

QJH Series 304 Stainless Steel Deep Well Submersible Pump with 150 m Head and 70–230 m³/h Flow

Get Best Price

video

Stainless Steel Deep Well Pump with 90 kW Motor and 140 m³/h Flow for High-Capacity Water Transfer

Get Best Price

video

200QJH150-150-110kW Stainless Steel Deep Well Pump High-flow, high-head pumping for deep wells and engineered water systems

Get Best Price

Contact Now

Product Description

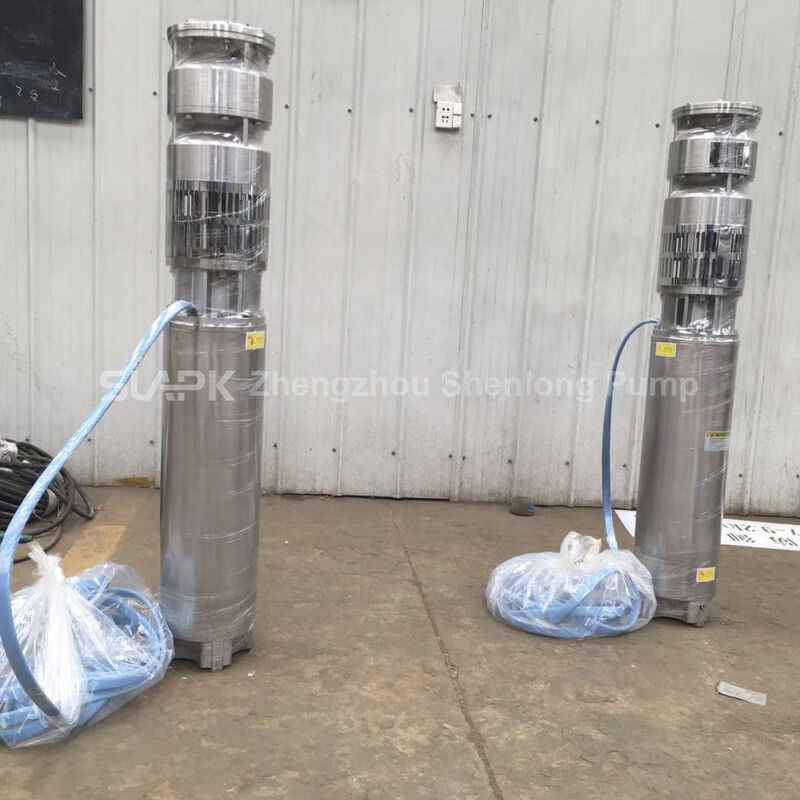

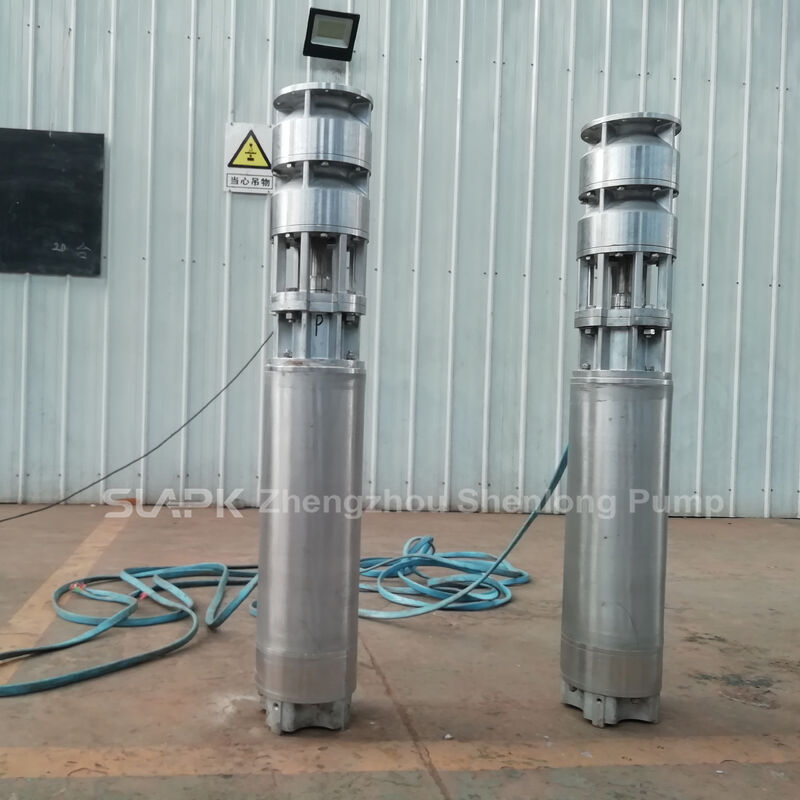

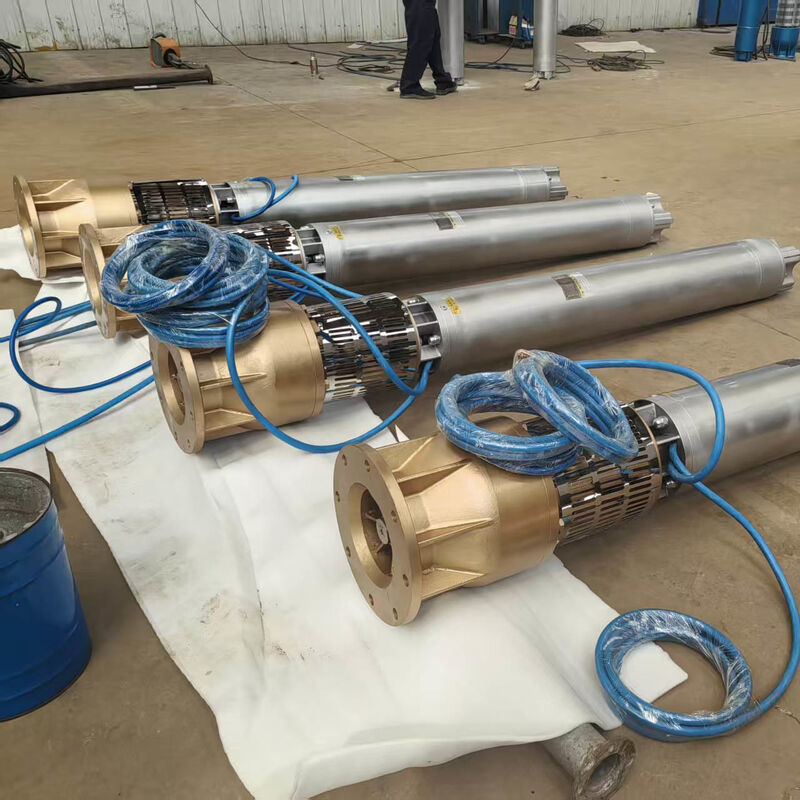

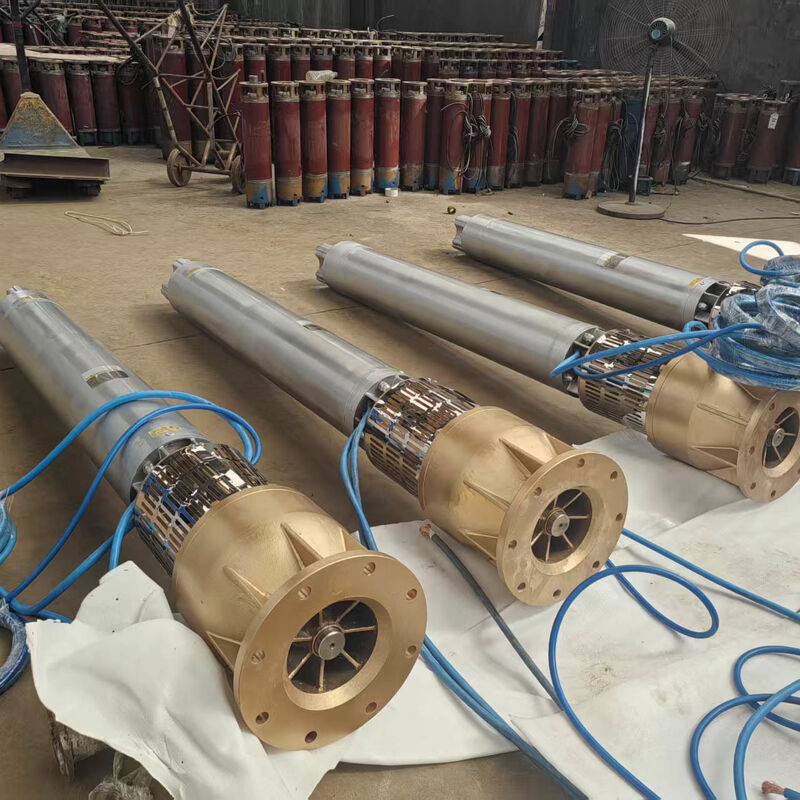

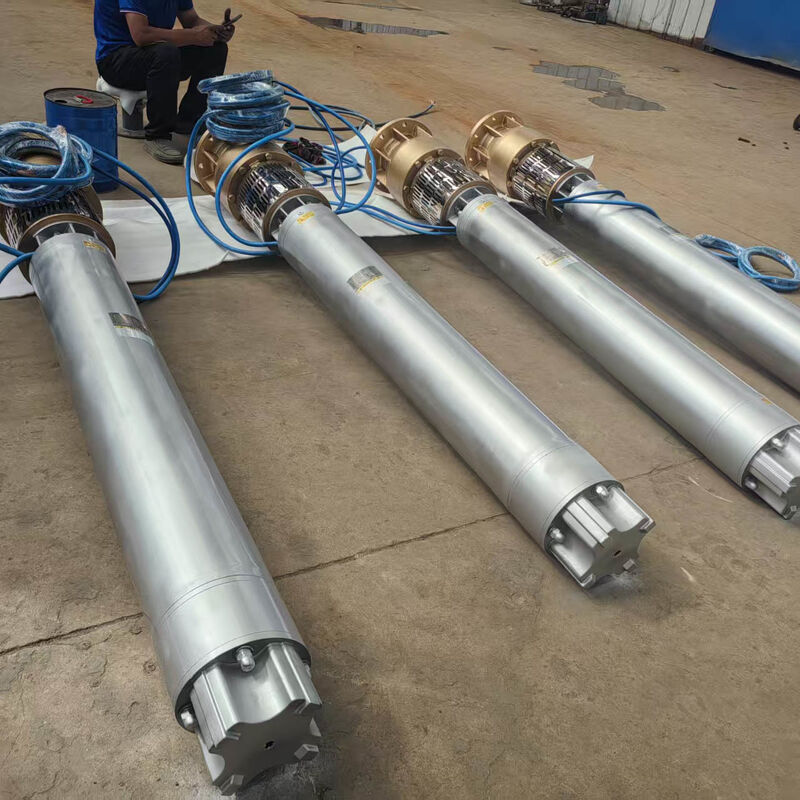

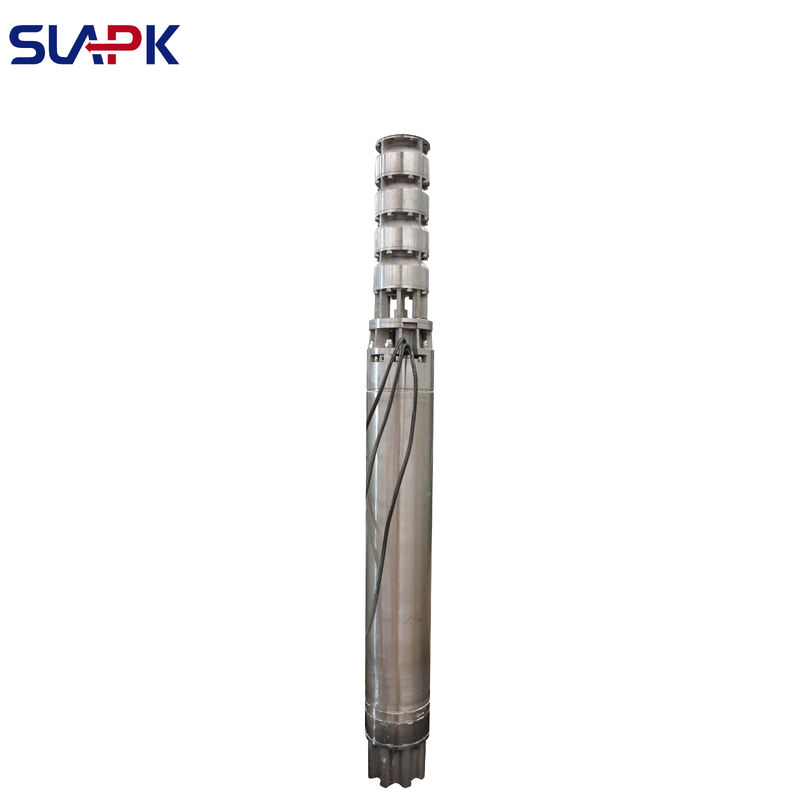

200QJH40-280-55KW Stainless Steel Submersible Well Pump

Vertical multistage stainless steel submersible pump designed for deep-well water extraction and high-head water-transfer applications.

Technical Specifications

Model	200QJH40-280-55KW
Pump type	Vertical multistage submersible well pump
Indicative rated flow	Approximately 40 m³/h
Indicative rated head	Approximately 280 m
Motor power	55 kW
Pump series	200 series
Installation	Vertical submerged installation
Medium	Clean water or liquids with similar properties
Material options	304 stainless steel, 316 stainless steel or project-specific material

Flow, head and motor power are interpreted from the commonly used model designation. Naming systems can vary between manufacturers. Final specifications must be confirmed by the approved datasheet, certified performance curve, nameplate and contract.

Key Features

High-Head Water Delivery: Multistage hydraulic system progressively increases pressure for deep pumping water levels and long pipelines
Approximately 40 m³/h Flow: Practical capacity for irrigation, industrial water supply, and community water systems
Stainless Steel Wetted Components: Resistance to rust and general water corrosion with appropriate grade selection
Multistage Centrifugal Design: Multiple impellers generate high pressure within compact vertical assembly
Integrated Pump and Motor: Compact unit reduces above-ground equipment requirements and operating noise
Project-Specific Configuration: Options include stainless steel grade, voltage, cable length, and control systems

Typical Applications

Deep-well groundwater extraction
Agricultural irrigation
Municipal and community water supply
Industrial process and cooling water
Mine, tunnel and construction drainage
Reservoir and storage-tank transfer
Elevated-tank and fire-water replenishment
Long-distance and high-elevation water transfer

Recommended Operating Conditions

The pumped medium should be clean water or liquids with similar physical and chemical properties. Minimum well-casing diameter must exceed the pump's maximum outside diameter with sufficient clearance for power cable and manufacturing tolerances.

The pump and motor must remain adequately submerged during operation with sufficient water velocity for motor cooling. Required total dynamic head must include pumping water level, delivery elevation, outlet pressure, and all pipe system losses.

Information Required for Selection

Required flow rate in m³/h
Required total dynamic head in metres
Well depth and static/pumping water levels
Minimum internal well diameter
Pipe length, diameter and discharge elevation
Water temperature, chemistry, chloride level and sand content
Available voltage and frequency
Required cable length and control method

Why Choose This Pump?

This pump combines 40 m³/h flow with 280 m head, making it suitable for deep-water-level, high-elevation and long-distance transfer projects. The multistage centrifugal arrangement provides progressive pressure generation with optional stainless steel components for dependable operation in wet environments.
