40m3/H 15m Slurry Sludge Submersible Pump Vertical Sewage Water For Cows
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Please feel free to contact us |
|---|---|---|---|
| Packaging Details : | Submersible sewage pump is packed with wooden case or 20 inch container. | Delivery Time : | 15-25 working days after payment confirmation |
| Payment Terms : | T/T, Western Union, L/C, MoneyGram, D/P, D/A | Supply Ability : | 8578 pieces per month |
| Place of Origin: | Henan, China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service | Model Number: | Submersible Slurry Pump |
|
Detail Information |
|||
| Material: | Cast Iron/SS304/SS316/SS316L/duplex Stainless/SS904L | Frequency: | 3 Phase 50hz/60hz |
|---|---|---|---|
| Outlet Diameter: | 50mm 80mm 100mm 150mm 200mm Or More | Flow: | 18-720m3/h |
| Head: | 10-64m | Power: | 3kw-110kw |
| Voltage: | 380v/440v/660v Or As Per Request | Warranty: | 24 Months |
| Highlight: | submersible sewage water pump,submersible dirty water pump |
||
Product Description

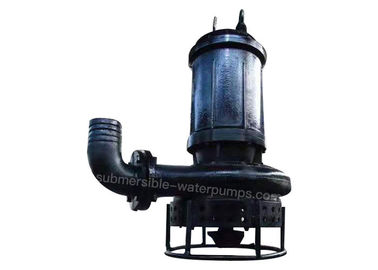

sand gravel dredge pumps electric water 15kw 100m3/h 200m3/h submersible slurry pump
submersible slurry pump parameters:
(It is regular submersible pump type in Shenlong pump factory, stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v, etc. Please kindly choose submersible pump type you are interested.)
| Outlet diameter | flow | head | power | Speed | |
| mm | m3/h | m | kw | hp | r/min |
| 50 | 25 | 12 | 3 | 4 | 1450 |
| 50 | 20 | 25 | 4 | 5 | 1450 |
| 80 | 45 | 15 | 5.5 | 7 | 1450 |
| 100 | 100 | 10 | 7.5 | 10 | 1450 |
| 80 | 70 | 20 | 11 | 15 | 1450 |
| 100 | 100 | 16 | 11 | 15 | 1450 |
| 100 | 120 | 15 | 11 | 15 | 1450 |
| 80 | 30 | 39 | 15 | 20 | 1450 |
| 100 | 75 | 25 | 15 | 20 | 1450 |
| 100 | 105 | 17 | 15 | 20 | 1450 |
| 100 | 180 | 13 | 15 | 20 | 1450 |
| 150 | 200 | 12 | 18.5 | 25 | 980 |
| 100 | 52 | 38 | 22 | 30 | 980 |
| 100 | 75 | 45 | 22 | 30 | 980 |
| 100 | 100 | 25 | 22 | 30 | 980 |
| 100 | 120 | 22 | 22 | 30 | 980 |
| 150 | 105 | 25 | 22 | 30 | 980 |
| 150 | 140 | 17 | 22 | 30 | 980 |
| 150 | 240 | 13.5 | 22 | 30 | 980 |
| 100 | 70 | 38 | 30 | 40 | 980 |
| 150 | 180 | 26 | 30 | 40 | 980 |
| 200 | 300 | 15 | 30 | 40 | 980 |
| 100 | 70 | 53 | 37 | 50 | 980 |
| 150 | 360 | 17 | 37 | 50 | 980 |
| 200 | 400 | 15 | 37 | 50 | 980 |
| 100 | 120 | 55 | 45 | 60 | 980 |
| 150 | 200 | 30 | 45 | 60 | 980 |
| 250 | 500 | 15 | 45 | 60 | 980 |
| 150 | 180 | 42 | 55 | 75 | 980 |
| 150 | 175 | 38 | 55 | 75 | 980 |
| 150 | 360 | 26 | 55 | 75 | 980 |
| 250 | 720 | 11 | 55 | 75 | 980 |
| 150 | 105 | 58 | 75 | 100 | 980 |
| 200 | 245 | 38 | 75 | 100 | 980 |
| 150 | 200 | 60 | 120 | 120 | 980 |
| 150 | 360 | 39 | 120 | 120 | 980 |
| 200 | 450 | 30 | 120 | 120 | 980 |
| 200 | 600 | 20 | 120 | 120 | 980 |
| 150 | 300 | 55 | 110 | 150 | 980 |
submersile slurry pump parameters range:
1. Outlet diameter: 50mm 80mm 100mm 150mm 200mm 250mm
2. Flow rate: 18-720m3/h
3. Head rate: 10m-64m
4. Motor power: 3kw-110kw
5. Volatge: 380v/440v/600v or another
6. Frequency: 3 phase 50hz/60hz
7. Material: Cast iron/SS304/SS316/SS316L/duplex stainless/SS904L
submersile slurry pump applications
1.The slurry slurry pumps is suitable for conveying liquid with slurry, solid particles of gravel, cinders and tailing, etc.
2.The submersible slurry pumps is widely used in river dredging, sand pumping vessel, sewage treatment plants, metallurgical industry, mining, power plants, etc.
Submersible pump display in Shenlong pump factory
non clogging sewage pump, cutter sewage pump, stainless steel sewage pump, bottom suction sewage pump(high head sewage pump),
water filled sewage pump, high temperature sewage pump, submersible slurry pump, automatic mixture sewage pump, etc.
