40m3/H 15m Slurry Sludge Submersible Pump Vertical Sewage Water For Cows
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Please feel free to contact us |
|---|---|---|---|
| Packaging Details : | Submersible slurrye pump is packed with shock absorption,moisture-proof package, standard export wooden case | Delivery Time : | 15-25 working days after payment confirmation |
| Payment Terms : | T/T, Western Union, L/C, MoneyGram, D/P, D/A | Supply Ability : | 8578 pieces per month |
| Place of Origin: | Henan, China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service | Model Number: | Submersible Slurry Pump |
|
Detail Information |
|||
| Outlet Diameter: | 50mm 80mm 100mm 150mm 200mm Or More | Flow: | 18-720m3/h |
|---|---|---|---|
| Head: | 10-64m | Power: | 3kw-110kw |
| Fuel: | Electric | Horespower: | 4hp-150hp |
| Voltage: | 380v/440v/660v Or As Per Request | Material: | Cast Iron/stainless Steel |
| Feature: | Submersible | Warranty: | 24 Months |
| Highlight: | submersible sewage water pump,submersible dirty water pump |
||
Product Description

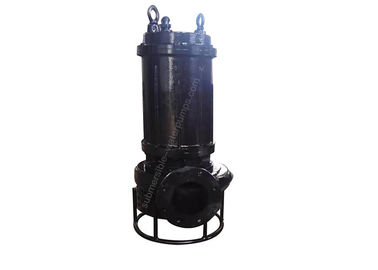

100m3/h 200m3/h 15hp 60hp sand dredging sewage submersible slurry pump
submersible slurry pump parameters:
(It is regular submersible pump type in Shenlong pump factory, stainless steel and 380v/440v/480v/600v/660v or as per request.
Please kindly choose submersible pump type you are interested.)
| Outlet diameter | flow | head | power | Speed | |
| mm | m3/h | m | kw | hp | r/min |
| 50 | 25 | 12 | 3 | 4 | 1450 |
| 50 | 20 | 25 | 4 | 5 | 1450 |
| 80 | 45 | 15 | 5.5 | 7 | 1450 |
| 100 | 100 | 10 | 7.5 | 10 | 1450 |
| 80 | 70 | 20 | 11 | 15 | 1450 |
| 100 | 100 | 16 | 11 | 15 | 1450 |
| 100 | 120 | 15 | 11 | 15 | 1450 |
| 80 | 30 | 39 | 15 | 20 | 1450 |
| 100 | 75 | 25 | 15 | 20 | 1450 |
| 100 | 105 | 17 | 15 | 20 | 1450 |
| 100 | 180 | 13 | 15 | 20 | 1450 |
| 150 | 200 | 12 | 18.5 | 25 | 980 |
| 100 | 52 | 38 | 22 | 30 | 980 |
| 100 | 75 | 45 | 22 | 30 | 980 |
| 100 | 100 | 25 | 22 | 30 | 980 |
| 100 | 120 | 22 | 22 | 30 | 980 |
| 150 | 105 | 25 | 22 | 30 | 980 |
| 150 | 140 | 17 | 22 | 30 | 980 |
| 150 | 240 | 13.5 | 22 | 30 | 980 |
| 100 | 70 | 38 | 30 | 40 | 980 |
| 150 | 180 | 26 | 30 | 40 | 980 |
| 200 | 300 | 15 | 30 | 40 | 980 |
| 100 | 70 | 53 | 37 | 50 | 980 |
| 150 | 360 | 17 | 37 | 50 | 980 |
| 200 | 400 | 15 | 37 | 50 | 980 |
| 100 | 120 | 55 | 45 | 60 | 980 |
| 150 | 200 | 30 | 45 | 60 | 980 |
| 250 | 500 | 15 | 45 | 60 | 980 |
| 150 | 180 | 42 | 55 | 75 | 980 |
| 150 | 175 | 38 | 55 | 75 | 980 |
| 150 | 360 | 26 | 55 | 75 | 980 |
| 250 | 720 | 11 | 55 | 75 | 980 |
| 150 | 105 | 58 | 75 | 100 | 980 |
| 200 | 245 | 38 | 75 | 100 | 980 |
| 150 | 200 | 60 | 120 | 120 | 980 |
| 150 | 360 | 39 | 120 | 120 | 980 |
| 200 | 450 | 30 | 120 | 120 | 980 |
| 200 | 600 | 20 | 120 | 120 | 980 |
| 150 | 300 | 55 | 110 | 150 | 980 |
1. Submersible slurry pump is also called submersible sand suction pump. Submersible slurry pump puts the electric motor and mechanical pump on the same axis, then dives into the medium to dredge sand, mud, slurry and so on
2. Installs a set of agitated impeller at the bottom of the submersible slurry pump besides of the main impeller. The agitated impeller can stir the sediment
3. The main impeller, agitated impeller and other over-flow parts were made of chrome alloy, the material is wear-resistant and corrosion-resistant.
submersile slurry pump applications
1. The slurry slurry pumps is suitable for conveying liquid with slurry, solid particles of gravel, cinders and tailing, etc.
2. The submersible slurry pumps is widely used in river dredging, sand pumping vessel, sewage treatment plants, metallurgical industry, mining, power plants, etc.
