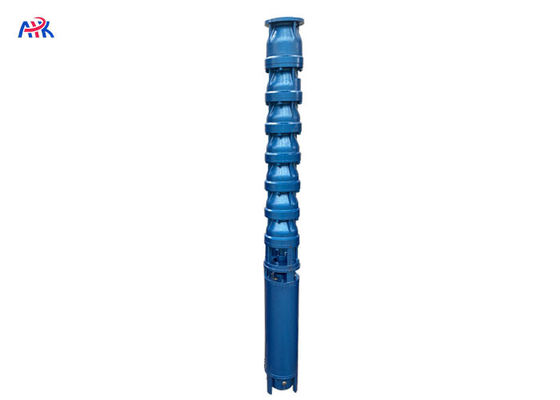

25m3/H 98m 11kw 15hp Transfer Deep Well Submersible Pump

Minimum Order Quantity : 1 piece Price : please kindly contact
Packaging Details : submersible water pump with Shock absorption,moisture-proof package, standard export wooden case Delivery Time : 7-15 working days after payment confirmed
Payment Terms : T/T , Western Union , L/C , D/A , D/P , MoneyGram Supply Ability : 10000 Unit/Units per Month
Place of Origin: Henan, China Brand Name: APK
Certification: CE; ISO9001; Five stars after-sale service Model Number: 11kw 15hp water submersible pump

Detail Information

Power: 11kw 15hp Water Submersible Pump Pump Size: 7 8 10 Inch Water Submersible Pump
Capacity: 23m-68m3/h Head: 34m-112m
Voltage: 380v/440v/460v Or As Per Request Frequency: 3 Phase 50hz/60hz
Motor: AC Motor Material: Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904L
Warranty: 24 Months
Highlight:

Transfer Deep Well Submersible Pump

,

98m Deep Well Submersible Pump

,

25m3/H Deep Well Submersible Pump

Product Description

25m3/h 98m 11kw 15hp borehole electric underwater water transfer deep well submersible pump



How to get quote ASAP?



*what the water pumps head and water capacity?
*How about voltage and frequency 380v or 440v/460v, 50hz or 60hz
*What′s the temperature of water?
*What the material, cast iron or stainless steel?



Pump control cabinet, frequency converter(ABB or as per request), cable, valve



25m3/H 98m 11kw 15hp Transfer Deep Well Submersible Pump 0

Material of other parts can be consulted and disucssed in details.



*Impeller: the new casting technology is adopted, and the hydraulic performance of the pump is up to the national standard.
*Electric motor water-resistant electromagnetic wire: using three layers of insulation performance, excellent insulation performance, cold resistance, acid and alkali salt resistance; using copper content oxygen free copper as conductor core, low resistance, high conductivity.
*Pump shaft: 30Cr13 stainless steel, high strength, good abrasion resistance and corrosion resistance.
*Rotor components: rotor shaft is made of 30Cr13 stainless steel, and rotor is tested for dynamic balance, so that it runs smoothly and reliably.



11kw 15hp water submersible pump parameters:

Pump diameter

Model

Motor Power

Flow Range

Head Range

Inch(")

QJ(H) Series

kw

hp

m3/h

m

7"

175QJ(H)25-91/7

11

15

23-27

75-105

7"

175QJ(H)32-72/6

11

15

29-35

60-80

7"

175QJ(H)40-60/5

11

15

37-43

50-70

7"

175QJ(H)50-48/4

11

15

46-54

40-56

8"

200QJ(H)25-84/6

11

15

23-27

67-100

8"

200QJ(H)25-98/7

11

15

23-27

84-112

10"

250QJ(H)63-40/2

11

15

58-68

34-46



25m3/H 98m 11kw 15hp Transfer Deep Well Submersible Pump 1

Working Conditions

(1) Three-phase AC power supply of rated frequency at 50HZ and rated voltage at 380±5%V.(user voltage at 660V shall be otherwise specified) (2) Pump inlet shall be kept below the dynamic level by 1 meter, but the submerged depth shall not exceed 70 meters below the static level. And the lower part of motor shall be kept at least 1 meter to the bottom of the well.

(3) Generally, water temperature shall not be higher than 30℃.

(4) Water quality requirements :

① Sand content in water not greater than 0.01%( weight ration)

② PH value between 6.5~8.5

③ chlorine ion content not greater than 400mg/l

Packing

If the customer has no special requirement, we generally pack the products with wooden cases. The pump and motor are packed in one case if the total length of the full set is less than 3.2m. Contrarily, the pump and motor are respectively packed.
