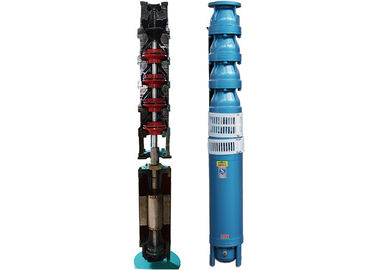

185kw Submersible Pump Farmland Irrigation Stainless Steel
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
| Minimum Order Quantity : | 1 piece | Price : | please kindly contact |
|---|---|---|---|
| Packaging Details : | submersible water pump with Shock absorption,moisture-proof package, standard export wooden case | Delivery Time : | 7-15 working days after payment confirmed |
| Payment Terms : | T/T , Western Union , L/C , D/A , D/P , MoneyGram | Supply Ability : | 10000 Unit/Units per Month |
| Place of Origin: | Henan, China | Brand Name: | APK |
|---|---|---|---|
| Certification: | CE; ISO9001; Five stars after-sale service | Model Number: | 18.5kw 25hp water submersible pump |
|
Detail Information |
|||
| Power: | 18.5kw 25hp Water Submersible Pump | Pump Size: | 7 8 10 12 Inch Water Submersible Pump |
|---|---|---|---|
| Capacity: | 18m3/h-214m3/h | Head: | 17m-210m |
| Voltage: | 380v/440v/460v Or As Per Request | Frequency: | 3 Phase 50hz/60hz |
| Motor: | AC Motor | Material: | Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904L |
| Warranty: | 24 Months | ||
| Highlight: | 25hp Submersible Water Pumps,30Cr13 Submersible Water Pumps,18.5kw Submersible Water Pumps |
||
Product Description
140m3/h 30m 18.5kw 25hp underwater water transfer pumps electric deep well submersible pump
Material of other parts can be consulted and disucssed in details.
How to get quote ASAP?
*what the water pumps head and water capacity?
*How about voltage and frequency 380v or 440v/460v, 50hz or 60hz
*What′s the temperature of water?
*What the material, cast iron or stainless steel?
FAQ
1) Q: Do you accept OEM?
A: Yes, we do.
2) Q: What's your delivery time?
A: It's according to the quantity of the order. Normally it is between 5 and 20 days.
3) Q: What's your production capacity?
A: About 1200 pieces per month.
4) Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, or customized if it is acceptable.
5) Q: Do you provide a free sample?
A: Samples for testing are available, but not free. MOQ is 1 set.
Pump control cabinet, frequency converter(ABB or as per request), cable, valve
18.5kw 25hp water submersible pump parameters:
|
Diameter |
Model |
Power |
Flow Range |
Head Range |
|
|
Inch(") |
QJ Series |
kw |
hp |
m3/h |
m |
|
8" |
200QJ20-175/13 |
18.5 |
25 |
18-22 |
150-210 |
|
8" |
200QJ25-154/11 |
18.5 |
25 |
23-27 |
138-184 |
|
8" |
200QJ32-117/9 |
18.5 |
25 |
29-35 |
90-132 |
|
8" |
200QJ40-104/8 |
18.5 |
25 |
37-43 |
89-124 |
|
8" |
200QJ50-78/6 |
18.5 |
25 |
46-54 |
63-93 |
|
8" |
200QJ80-55/5 |
18.5 |
25 |
74-86 |
47-63 |
|
10" |
250QJ50-80/4 |
18.5 |
25 |
46-54 |
68-92 |
|
10" |
250QJ63-60/3 |
18.5 |
25 |
58-68 |
51-69 |
|
10" |
250QJ125-32/2 |
18.5 |
25 |
116-134 |
27-37 |
|
10" |
250QJ140-30/2 |
18.5 |
25 |
130-150 |
26-34 |
|
12" |
300QJ200-20/1 |
18.5 |
25 |
186-214 |
17-23 |
Working Conditions:
(1) Three-phase AC power supply of rated frequency at 50HZ and rated voltage at 380±5%V.(user voltage at 660V shall be otherwise specified) (2) Pump inlet shall be kept below the dynamic level by 1 meter, but the submerged depth shall not exceed 70 meters below the static level. And the lower part of motor shall be kept at least 1 meter to the bottom of the well.
(3) Generally, water temperature shall not be higher than 30℃.
( 4) Water quality requirements :
① Sand content in water not greater than 0.01%( weight ration)
② PH value between 6.5~8.5
③ chlorine ion content not greater than 400mg/l
Packing
If the customer has no special requirement, we generally pack the products with wooden cases. The pump and motor are packed in one case if the total length of the full set is less than 3.2m. Contrarily, the pump and motor are respectively packed.
