5.5kw 40m3/H Slurry Submersible Pump Sewage Water Electric Vertical
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
| Minimum Order Quantity : | 1 piece | Price : | please kindly contact |
|---|---|---|---|
| Packaging Details : | Slurry submersible pump with is packed with standard wooden case. | Delivery Time : | 7-15 working days after payment confirmed |
| Payment Terms : | T/T , Western Union , L/C | Supply Ability : | 1000 Unit/Units per Month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | CE; ISO | Model Number: | Slurry Submersible Pump |
|
Detail Information |
|||
| Flow: | 40m3/h Slurry Submersible Pump | Head: | 15m Slurry Submersible Pump |
|---|---|---|---|
| Power: | 5.5kw Slurry Submersible Pump | Material: | A05 Slurry Submersible Pump |
| Applications: | Duck Farm, Sheep, Piggery | Impeller: | Open Impeller |
| Highlight: | 15m Slurry Submersible Pump,40m3/H Slurry Submersible Pump,Sewage Water Slurry Submersible Pump |
||
Product Description
40m3/h 15m 5.5kw 80mm Vertical Electric Sewage Water Slurry Submersible Pump To Namibia
| Outlet diameter: 80mm |
| Voltage: 3 phase 400v 50hz |
| Speed: 1450rpm |
| Material: wet part is A05, other spare parts is SS304 |
2. Slurry Submersible Pump Features:
1. The offered pump head part is with wear-resistant and corrosion-resistant material named A05.
2. The offer includes 5m submersible power cable.
3. The sludge sewage slurry submersible pump with open impeller, it's non clog type. Meanwhile, there's a small agitator at the bottom of the pump. It can mix up the sewage at the bottom of the tank.
4. Max temperature is up to 95℃
3. Slurry submersible pump applications:
For sewage slurry submersible pump is used in duck farm, cattle farm, or sheep farm and similiar applications, sludge sewage slurry submersible pump with A05 material is best choose. Because the pump could mix up the sewage at the bottom of the tank,non clogging. Also, the sludge sewage submersible pump is A05 material, stronger wear and corrosion resistance. Also, we have cast iron, stainless steel slurry submersible pump material.
4. Slurry Submersible Pump Models:
| Outlet diameter | Model | Discharge flow | Head | Power | |
| mm | WQ type | m3/h | m | kw | hp |
| 50 | 50WQ7-15-1.1 | 7 | 15 | 1.1 | 1.5 |
| 50 | 50WQ10-15-1.5 | 10 | 15 | 1.5 | 2 |
| 50 | 50WQ10-22-2.2 | 10 | 22 | 2.2 | 3 |
| 50 | 50WQ15-20-2.2 | 15 | 20 | 2.2 | 3 |
| 50 | 50WQ15-25-3 | 15 | 25 | 3 | 4 |
| 50 | 50WQ15-32-4 | 15 | 32 | 4 | 5 |
| 50 | 50WQ18-40-5.5 | 18 | 40 | 5.5 | 7 |
| 65 | 65WQ15-7-1.1 | 15 | 7 | 1.1 | 1.5 |
| 65 | 65WQ25-7-1.5 | 25 | 7 | 1.5 | 2 |
| 65 | 65WQ25-10-2.2 | 25 | 10 | 2.2 | 3 |
| 65 | 65WQ25-20-3 | 25 | 20 | 3 | 4 |
| 65 | 65WQ25-25-4 | 25 | 25 | 4 | 5 |
| 65 | 65WQ30-30-5.5 | 30 | 30 | 5.5 | 7 |
| 80 | 80WQ35-7-2.2 | 35 | 7 | 2.2 | 3 |
| 80 | 80WQ50-10-3 | 50 | 10 | 3 | 4 |
| 80 | 80WQ50-13-4 | 50 | 13 | 4 | 5 |
| 80 | 80WQ40-22-5.5 | 40 | 22 | 5.5 | 7 |
| 80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 |
| 100 | 100WQ60-9-3 | 60 | 9 | 3 | 4 |
| 100 | 100WQ60-10-4 | 60 | 10 | 4 | 5 |
| 100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 |
| 100 | 100WQ100-10-7.5 | 100 | 10 | 7.5 | 10 |
| 150 | 150WQ140-7-7.5 | 140 | 7 | 7.5 | 10 |

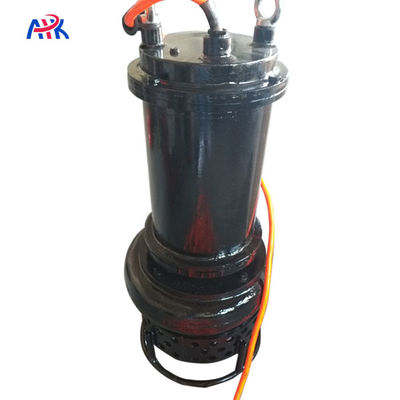

40m3/h 15m slurry submersible pump image:
Slurry submersible pump with jet ring agitator image:
5. Advantages of APK submersible slurry pump
a) High productivity--Our pumps are designed to pump fluids containing a high percentage of solids(maximum weight concentration of the ash can reach 45% and maximum weight concentration of the slag can reach 60%).
b) So long service life--Wear parts of agitator pump are all constructed with abrasion resistant materials - stainless steel material, so pumps have better stability & longer service life.
c) Various protective--The motor adopts various protective such as overheat protection, water -inlet detecting projection, and can be operated safely for a long term in challenging working conditions.
d) Mechanical seal--Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.
