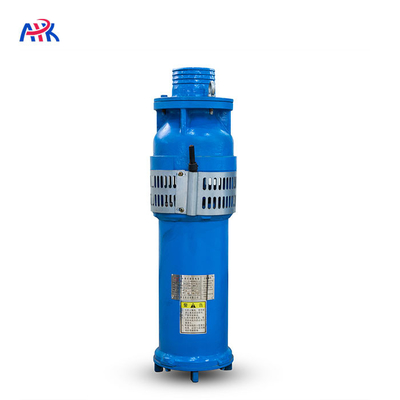

65KW Cast Iron Stainless Steel Fountain Pump

Product Description

65KW Cast Iron Stainless Steel Fountain Pump

65KW Cast Iron Stainless Steel Fountain Pump:

QSP miniature stainless steel fountain pump is a special fountain pump newly developed by our factory. The motor material of the pump is made of high-quality DR470 cold-rolled steel sheet, which increases the number of turns of the motor winding and the wire diameter of the diving wire. The cable uses a three-phase four-core line type fountain special cable, and an anti-loosening device is added to the impeller. The inner cavity of the motor is made of imported anti-rust enamel paint. Through the above structural improvements, the inertia of the submersible pump is small, so the response speed is fast. The bearing adopts a high-performance special shaft to improve the insulation level, so as to meet the needs of frequent starting of music special fountains.

65KW Cast Iron Stainless Steel Fountain Pump Model:

Features Of Cast Iron Stainless Steel Fountain Pump:

1. High-tech materials are used to improve the corrosion resistance of the motor.

2. The impeller is made of special material to prevent the impeller from loosening.

3. Leakage protection measures: use constant potential grounding device.

4. On the basis of the original ordinary pump, according to the requirements of the fountain special pump, the company has undergone many tests, continuously developed the technology, and continuously improved the processing materials, so that the fountain special pump can be started frequently, which is completely suitable for the use of musical fountains.

5. The pump adopts stainless steel filter screen shield and three-phase four-wire cable.

6. The special pump for high-power fountain can be used horizontally. Various specifications and models are available.

Conditions Of Use Of Cast Iron Stainless Steel Fountain Pump:

1. The QSP miniature fountain pump (fountain pump) should be completely submerged in water to operate, and the diving depth should not be less than 0.55 meters and not more than 5 meters.

2. The ambient water temperature should not be higher than 40°C.

3. The working medium is non-corrosive clear water, the sand content is not more than 0.1%, and the pH value is 6.5~8.5.

4. The power supply should be three-phase 50 Hz, the rated voltage is 380 volts, and the power supply voltage must be within the range of 342~420 volts.

5. The QSP special fountain pump (stainless steel fountain pump) should be used within the applicable range near the rated head.

6. The QSP fountain special pump (stainless steel fountain pump) should be equipped with a corresponding start-up protector and be reliably grounded.
